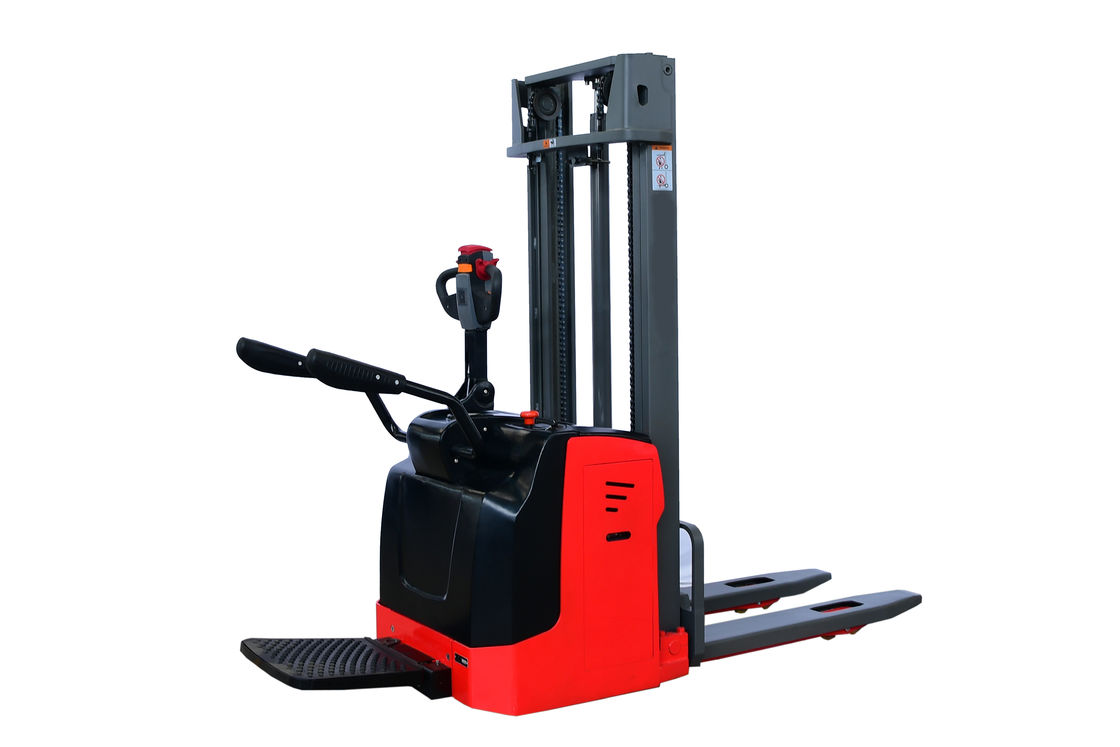

1800kgs Heavy Duty Forklift Truck

Product Details:

Place of Origin:	CN
Brand Name:	VMAX
Certification:	CE,EPA,BV,SGS,ISO9001
Model Number:	MB

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	＄9,775.00-＄18,000.00/unit
Packaging Details:	nude package
Delivery Time:	25-30 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	4,000 units/year

Contact Now

Detailed Product Description

Color:	Red, Yellow, Blue, Green, White Etc	Power Souce:	Electric
Fork Width:	122mm	Overall Dimensions:	203521001090mm
Fork Length:	1070mm	Max. Lifting Height:	6000mm
Load Center:	500mm	Loading Capacity:	1800kgs
Drive System:	AC/DC	Warranty:	1 Year Or 2000 Hours
Highlight:	1800kgs Electric stacker truck , 1070mm electric pallet stacker

1800kgs capacity small truck with fork length 1070mm electric forklift:

Main Information
1.1	Brand		VMAX
1.2	Model		CPD18
1.4	Operation type		Drive in seat
1.5	Load capacity	kg	1800
1.6	Load center	mm	500
2.1	Weight with battery	kg	3200
Tire,chassis
3.1	Tire Type,Driving wheel/Load wheel
3.2	Number of wheels X=driving wheel(front/behind)
3.3	Tire size (front/behind)		7.00-12-12PR/18X7-8PR
3.4	Service brake
3.5	Parking service
Size
4.1	Mast tilt,Forward/backward	α/β(°)	6/12
4.2	Mast height after mast fall	mm	1995
4.3	Fork lift max height	mm	4025
4.4	Free lift height	mm	140
4.5	Standard Mast height	mm	3000
4.6	Overhead guard height	mm	2100
4.7	Overall length	mm	2035
4.8	Fork overhang	mm	400
4.9	From the rear	mm	335
4.10	Wheelbase	mm	1360
4.11	Minimum distance between the ground	mm	110
4.12	Tread (front/behind)	mm	912/920
4.13	Vehicle width	mm	1090
4.14	Fork size	mm	1070x122x45
4.15	Channel width,	mm	3739
4.16	Turning radius	mm	1997
Performance
5.1	Walking speed,loaded/withoutload	km/h	13/15
5.2	lifting speed,loaded/load	m/s	240/450
5.3	Dropping speed loaded/without load	m/s	480/420
5.4	Maximum traction,loaded	N	15000
5.5	Max grade ability,loaded/without load	%	12/15
Drive
6.1	Drive motor power	kw	8
6.2	Drive motor power	kw	7.5
6.4	Level voltage/Capacitance	V/Ah	48/450
Others
7.1	Drive System	DC/AC
7.2	Electrical control system	Curtis from America

1800kgs Heavy Duty Forklift Truck 0

1800kgs Heavy Duty Forklift Truck 3

1800kgs Heavy Duty Forklift Truck 4

1800kgs Heavy Duty Forklift Truck 5

Q: Are you trading company or manufacturer ?

A: VMAX was founded in 2010, is a professional production and sales of forklift manufacturer.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-45 days if the goods are not in stock, it is according to quantity and model.

Q: Do you provide samples ?

A: Yes, VMAX accept the sample order.

Q: What is your terms of payment ?

A: T/T and L/C is accepted.
