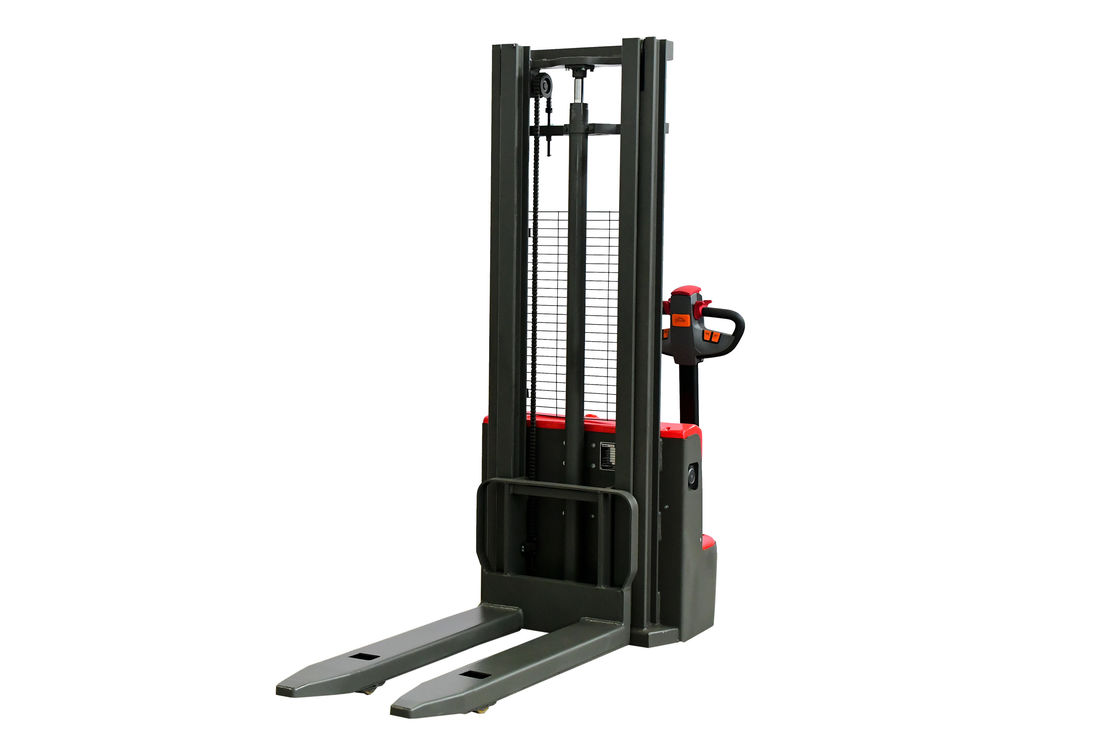

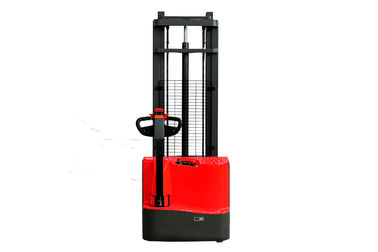

1.0 - 1.5T Electric Pallet Stacker Max Lifting Height 3000mm High Performance

Product Details:

Place of Origin:	china
Brand Name:	vmax
Certification:	CE BV SGS
Model Number:	MBD

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	paper packaging
Delivery Time:	15days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

Detailed Product Description

Color:

Red

Power:

Battery

Certification:

CE BV SGS

Battery:

Maintenance Free Battery

High Light:

powered pallet stacker

walkie pallet stacker

1.0-1.5T Electric Walkie Stacker with MAX lifting height 3000mm

Main Features:

1. Electric walkie stacker use DC permanent magnet drive motor which provide strong power and excellent performance;
2. Maintenance-free battery;
3. Wide-view gantry design to improve work efficiency;
4. The whole forklift design is more reasonable with low center of gravity, small size and low self-weight.

Specification:

Brand		MiMA	MiMA
Model		TBD10	TBD15
Power Type		Battery	Battery
Operation Type		Walkie	Walkie
Service weight(incl. battery)	kg	560	560
Rated Capacity	Q(kg)	1000	1500
Load Center	C(mm)	500	500
Lifting height	h3(mm)	2500	2500
Forks size	l/e/s(mm)	1150/160/60	1150/160/60
Front Overhang	x(mm)
Turning radius	Wa(mm)	1440	1440
Max. climbing ability	%(tanθ )	3/6	3/6
Driving speed(load/unload)	km/h	3.5/4	3.5/3.6
Lifting speed(load/unload)	mm/s	110/180	73/107
Lowering speed(load/unload)	mm/s	130/160	85/115
