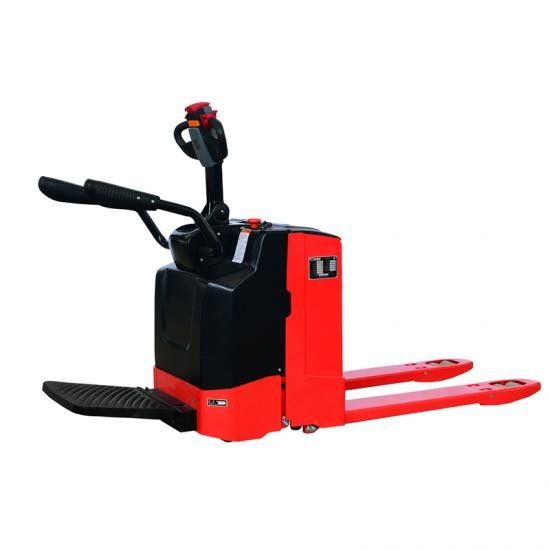

1.5-2.0T Walkie Pallet Truck with maintenance-free Battery
Main Features:
1. DC permanent magnet drive motor provide strong power and excellent performance;
2. Maintenance-free battery is worry-free. The built-in charger is more convenient to charge;
3. It is higher strength and impact resistance, durable for Strong fork structure;
4. The design of forklift is more reasonable with the low gravity, small size and light weight.
Specification:
| Brand |
|
VMAX |
|
| Model |
|
MEW15 |
MEW20 |
| Power Type |
|
Battery |
Battery |
| Operation Type |
|
Walkie |
Walkie |
| Service weight(incl. battery) |
kg |
380 |
400 |
| Rated Capacity |
Q(kg) |
1500 |
2000 |
| Load Center |
C(mm) |
600 |
600 |
| Lifting height |
h3(mm) |
115 |
115 |
| Forks size |
l/e/s(mm) |
1150/160/45 |
1150/160/45 |
| Front Overhang |
x(mm) |
969 |
969 |
| Turning radius |
Wa(mm) |
1535 |
1535 |
| Max. climbing ability |
%(tanθ ) |
3/10 |
3/10 |
| Driving speed(load/unload) |
km/h |
3.5/4 |
3.6/3.7 |
| Lifting speed(load/unload) |
mm/s |
39/46 |
39/46 |
| Lowering speed(load/unload) |
mm/s |
46/40 |
46/40 |
Products Advantages:
Performance
● Powerful and 2.0T load which meet the needs of most customers.
● It adopts permanent magnet travel motor with excellent performance and low heat generation.
Comfort
● Compact design, small size, space saving, and smooth passage in a small passage;
● It is simple and beautiful with integrated joystick. All operation functions can be easily completed with one hand;
Safety
● It has three kinds of braking functions: release brake, reverse brake and emergency brake to ensure the safety of driving.
