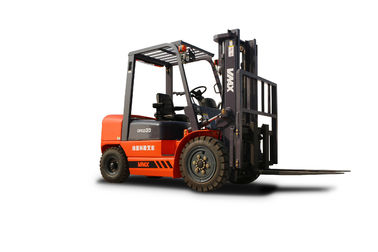

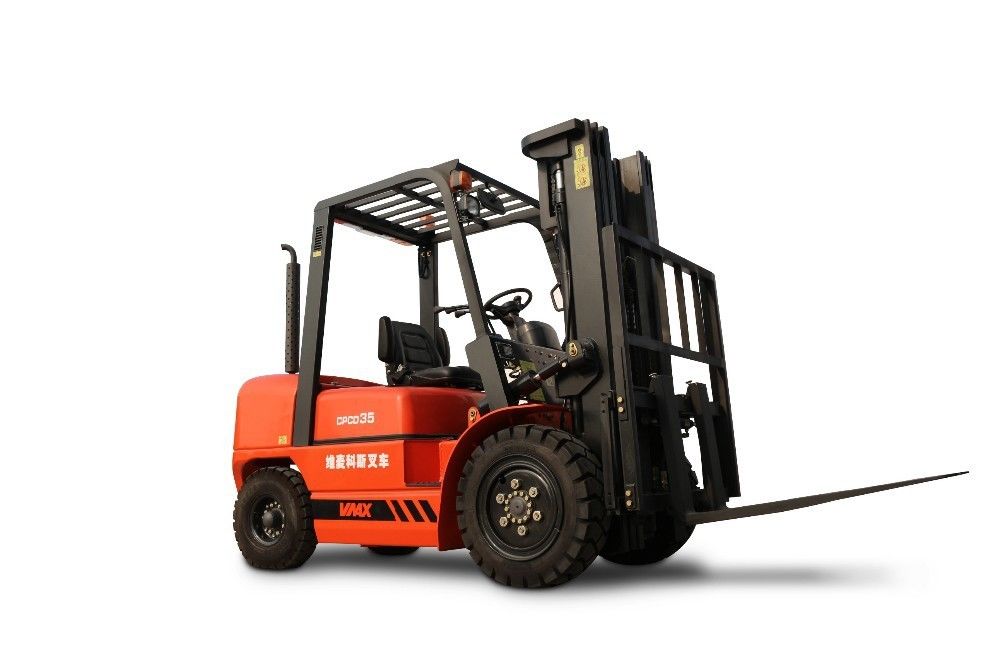

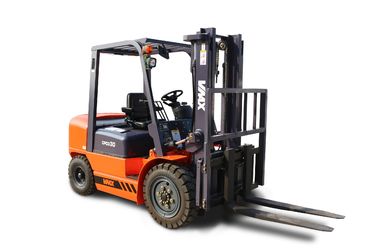

2-3T Diesel Powered Forklift Truck Counterbalance , 3 Wheel Electric Forklift
Product Details:
Place of Origin:
ANHUI,CHINA
Brand Name:
VMAX
Certification:
CE,SGS,BV
Model Number:
CPCD30
Payment & Shipping Terms:
Minimum Order Quantity:
1UNIT
Price:
Negotiable
Packaging Details:
bubble wrap
Delivery Time:
45 DAYS
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
3000unit / year
Contact Now
Detailed Product Description
Color:
Orange
Weight:
4300kg
Product Name:
Counterbalance Lift Truck
Power Souce:
Diesel Engine
Overall Dimensions:
2680*1225*2065mm
Rated Loading Capacity:
3000kg
High Light:
counterbalance lift truck , reach counterbalance forklift
2-3T Diesel Powered Forklift Truck Counterbalance , 3 Wheel Electric Forklift
Our industrial counterbalance forklift has many advantages:
Our industrial counterbalance forklift specification:
Model Unit CPC20/CPCD20 CPC25/CPCD25 CPC30/CPCD30
Power type
Diesel Diesel Diesel
Rated capacity kg 2000 2500 3000
Load center mm 500 500 500
Mast Lifting height mm 3000 3000 3000
Free lift height mm 240 240 175
Fork size(L*W*T) mm 920×122×40 1070×125×45 1070×125×45
Tilting Angles(Front/Rear) deg 6°/12° 6°/12° 6°/12°
Front overhang mm 485 485 485
Exterior Size Length without fork mm 2505 2580 2680
Overall width mm 1160 1160 1225
Mast drop mm 1995 1995 2065
Max.lift mm 4030 4030 4250
Front-wheel Overhead mm 2070 2070 2070
Min Turning Radius mm 2170 2230 2420
Min.intersecting aisle mm 1900 2000 2100
Speeds Max Driving speeds km/h 17.5/20 17.5/20 18.5/20
Lifting speeds mm/s 500/530 500/530 470/520
Lowering speeds mm/s 540/550 540/550 550/520
Max.grade ability % 18 18 20
Total weight kg 3400 3780 4300
Tires Front
7.00-12-12PR 7.00-12-12PR 28*9-15-12PR
Rear
6.00-9-10PR 6.00-9-10PR 6.5-10-10PR
Wheelbase mm 1600 1600 1700
Tread Front mm 970 970 1000
Rear mm 970 970 970
Min.ground clearance mm 110 110 110
Engine Model
490BPG 490BPG ISUZU C240
Rated output kw/rpm 37/2650 37/2650 35.4/2400
Rated torque N.m/rpm 148/1800 148/1800 139.9/1800
No.of cylinder
4 4 4
Displacement L 2.54 2.54 2.369
Fuel tank capacity L 52 52 70
