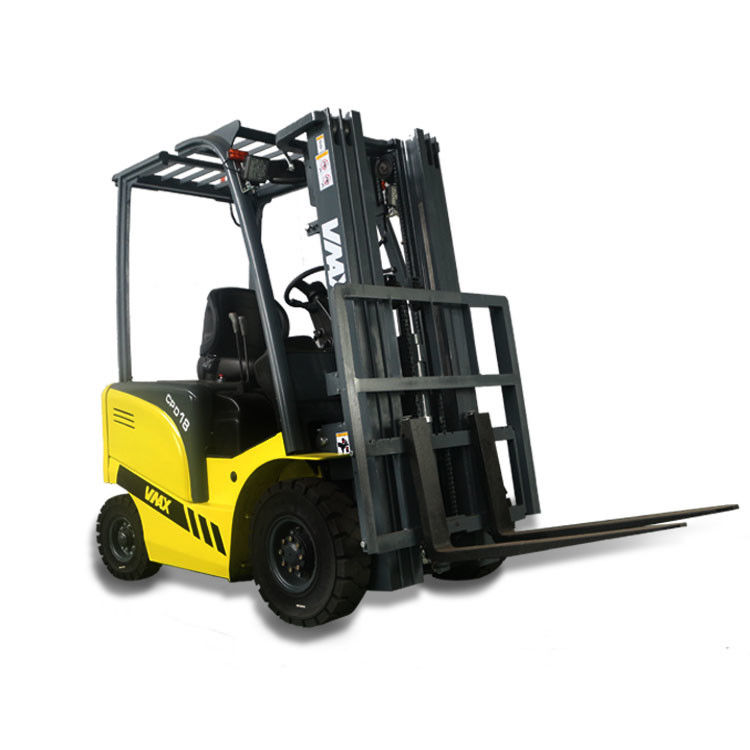

2.5T Battery Operated Forklift Truck Warehouse Environmental Protection
Here are the details of battery powered lift trucks:
Electric forklift truck with 2,500kg load capacity
Model: CPD25
AC Motor, battery charger
Standard with 2-stage wide-view mast, lifting height is 3,000mm
Pneumatic tires, 1070mm forks,Safety seat,Free tool box and spare parts.
Back-up buzze, rearview mirror, full set of lights and so on.
Characteristics of battery powered lift trucks:
| Characteristics |
| 1 |
4-wheel AC Power Pneumatic Tire Electric Forklift |
|
CPD20 |
CPD25 |
| 2 |
Capacity |
at rated load center |
kg |
2000 |
2500 |
| at load center - distance |
mm |
500 |
| 3 |
Power |
diesel, Gasoline / LPG, electric |
|
electric |
| 4 |
Tire Type |
solid, pneumatic |
|
pneumatic |
| 5 |
Wheels (x = drive) |
number front / rear |
|
2x/2 |
| Dimensions |
| 6 |
Lift Height with standard two-stage mast (VM) |
mm |
3000 |
| 7 |
Free Lift Height |
mm |
140 |
140 |
| 8 |
Fork size |
Length*Width*Thickness |
mm |
1070x120x40 |
1070x120x45 |
| 9 |
Fork spacing (Min./Max.) |
out-to-out |
mm |
240/1040 |
240/1040 |
| 10 |
Mast tilt angle |
Forward / Backward |
deg |
6/10 |
| 11 |
Overall dimensions |
length (to fork face) |
mm |
2349 |
2381 |
| width (standard) |
mm |
1265 |
| height |
with lowered mast |
mm |
2040 |
| with extended mast |
mm |
4240 |
| to top of overhead guard |
mm |
2125 |
| 12 |
Turning radius (outside) |
mm |
2050 |
2100 |
| 13 |
Load distance (centerline of front axle to front face of forks) |
mm |
459 |
464 |
| Performance |
| 15 |
Speeds |
Travel speed |
loaded |
km/h |
12 |
12 |
| 16 |
empty |
km/h |
14 |
14 |
| 17 |
Lifting speed |
loaded |
mm/sec |
310 |
300 |
| 18 |
empty |
mm/sec |
420 |
420 |
| 19 |
Gradeability |
loaded/empty |
% |
10 |
| Weight |
| 20 |
empty |
with minimum weight battery |
|
Kg |
4160 |
4360 |
| Chassis |
| 21 |
Tyre Size |
Front, standard pneumatic tires |
|
23x9-10-16PR |
| 22 |
Rear, standard pneumatic tires |
|
18x7-8-14PR |
| 23 |
Wheel base |
mm |
1500 |
| 24 |
Tread width |
Front |
mm |
1040 |
| Rear |
mm |
950 |
| 25 |
Min. Under-clearance (full load / no load ) |
at lowest point at mast |
mm |
85/105 |
| 26 |
at center of wheelbase |
mm |
120/140 |
| Powertrain |
| 27 |
Battery |
Voltage |
V |
48 |
| 28 |
Capacity |
AH |
630/700 |
630/700 |
| 29 |
Electric motor |
Drive motor output |
kw/rpm |
8/1300 |
| 30 |
Hydraulic motor output |
kw/rpm |
15/2200 |
15/2200 |
| 31 |
controller |
|
American(USA CURTIS electric controller ) / American GE, GE/Italian SME AC controller |
Features of battery powered lift trucks
- Integrated central control box the reliability of electric system
- Ergonomical design ensures best operation
- Energy-saving hydraulic system decreases fuel consumption
- High-quality hydraulic hoses, no oil leakage
- Wide-view mast design improves the productivity and safety
OPTION:
As a professional manufacturer of forklift, we also can offer you customized service,
the following items are optional:
Container mast, for example, 2-stage full free mast of 3m, 3-stage full free mast of 4.5m/ 4.8m
side shifter, fork positioner,longer forks, fork extension
For the details of customized configurations and options, please contact with us.
VMAX professional service will be impressed on you.
OTHERS :
A: date of delivery:15-25days after received the deposit
B: payment terms:T/T(30% deposit,balance paid before shipment).Or L/C at sight
C: Guaranty period: one year or 2000hours upon receiving goods.
