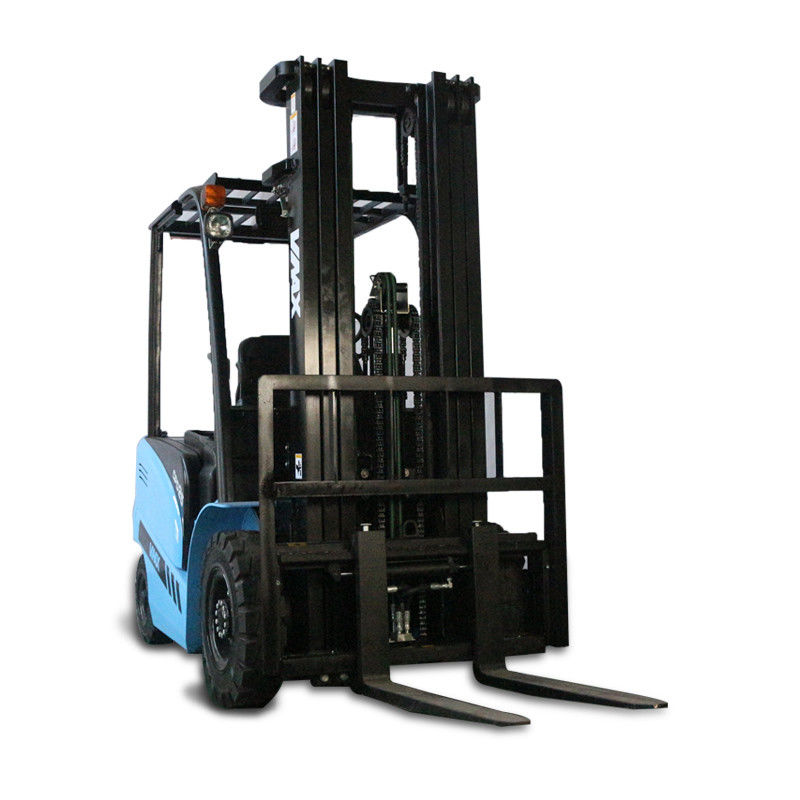

2 Ton Four Wheel Electric Forklift , Heavy Duty Warehouse Stacker Forklift
2 -2.5ton electric forklift truck
As a professional manufacturer of forklift, we also can offer you customized service,
The following items are optional:
Container mast, for example, 2-stage full free mast of 3m, 3-stage full free mast of 4.5m/ 4.8m
Side shifter, fork positioner, longer forks, fork extension
For the details of customized configurations and options, please contact with us.
VMAX professional service will be impressed on you.
| Specification 2-2.5ton electric forklift trucks |
| Model |
CPD20 |
CPD25 |
| Load capacity kg |
2000 |
2500 |
| Load center mm |
500 |
500 |
| Power type |
Battery Powered(DC/AC) |
| Max.lifting speeds(with load) mm/s |
250 |
230 |
| Max.Driving speeds(with without load) km/h |
12.5/14 |
12/14 |
| Max.Towing speeds(with load) kN |
10 |
10 |
| Gradeability(with load) % |
15 |
15 |
| Lifting height mm |
3000 |
3000 |
| Free lift mm |
60 |
60 |
| Tilting angles(forward-backward) . |
6/12 |
6/12 |
| Min. turning radius mm |
2200 |
2250 |
| Min. right angle aisle width mm |
2050 |
2100 |
| Min. under-clearance mm |
110 |
110 |
| Dimensions |
A Overall length (inincluding fork) mm |
3350 |
3380 |
| B Overall width mm |
1160 |
1160 |
| H Overall height(mast lowered) mm |
2130 |
2130 |
| H2 Overall height(mast extend) mm |
4040 |
4040 |
| H3 Overall height to overhead guard mm |
2130 |
2130 |
| B3 Fork width mm |
100 |
122 |
| H4 Fork thickness mm |
40 |
40 |
| A3 Fork length mm |
920(1070) |
920(1070) |
| A1 Fork overhang mm |
451 |
451 |
| A2 Wheel base mm |
1550 |
1550 |
| Tread |
Front tread mm |
970 |
970 |
| Rear tread mm |
950 |
950 |
| Tyre |
Front tyre |
7.00-12 |
7.00-12 |
| Rear tyre |
18×7-8 |
18×7-8 |
| Total weight kg |
3950 |
4300 |
| Motor |
Traction motor |
XQ-8 |
XQ-8 |
| Lifting motor |
XQD-10-3S |
XQD-10-3S |
| Battery |
Battery type |
D-600(700) |
D-700 |
| Battery voltage/Capacity V/Ah |
48/600(700) |
48/700 |
OTHERS :
A: date of delivery:15-25days after received the deposit
B: payment terms:T/T(30% deposit,balance paid before shipment).Or L/C at sight
C: Guaranty period: one year or 2000hours upon receiving goods.
