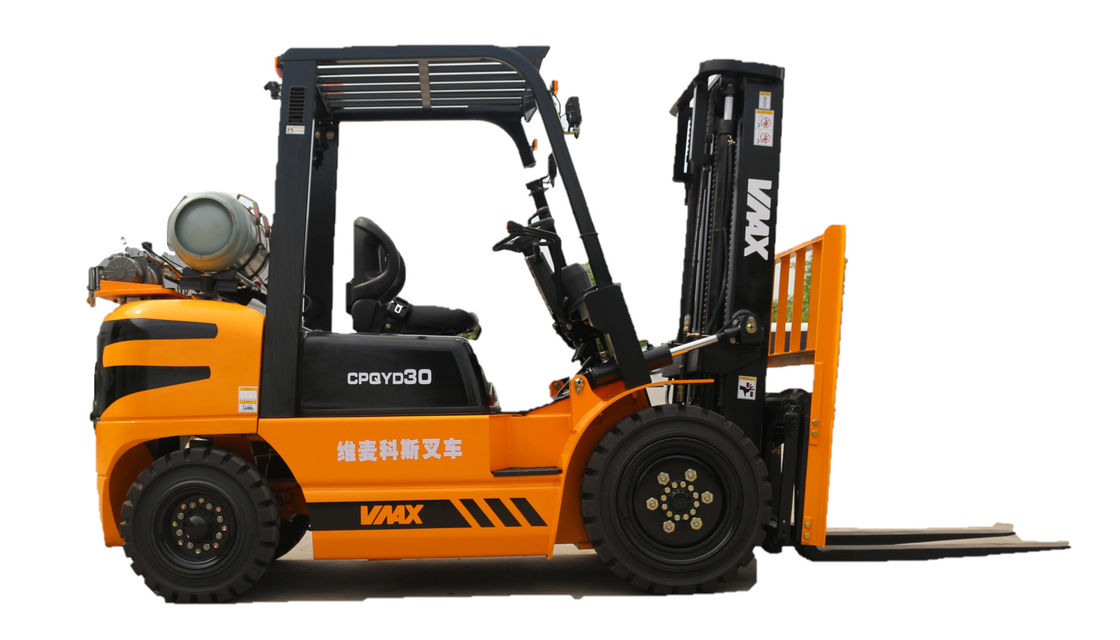

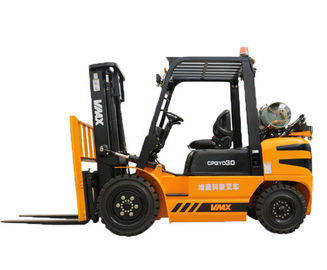

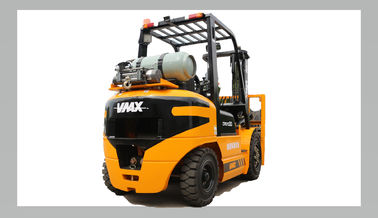

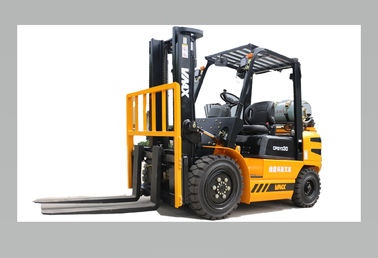

Name: 3000KG LPG Forklift Hydraulic Transmission / Sit Down Forklift With Gasoline Engine
Brand: VMAX
SKU: CPQYD30

Home Products Heavy Duty Forklift Truck

3000KG LPG Forklift Hydraulic Transmission / Sit Down Forklift With Gasoline Engine

Product Details:

Place of Origin:	ANHUI,CHINA
Brand Name:	VMAX
Certification:	CE,SGS,BV
Model Number:	CPQYD30

Payment & Shipping Terms:

Minimum Order Quantity:	1UNIT
Price:	Negotiable
Packaging Details:	bubble wrap
Delivery Time:	45 DAYS
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000unit / year

Contact Now

Detailed Product Description

Type:	Lp Gas Forklift	Power Souce:	Gasoline Engine
Rated Loading Capacity:	3000KG	Max. Lifting Height:	6000mm
Min. Lifting Height:	3000mm	Color:	Yellow Or Custom Made
High Light:	lp gas forklift , gas forklift truck

3000KG LPG Forklift Hydraulic Transmission / Sit Down Forklift With Gasoline Engine

VMAX FORKLIFT 3.0TON LPG FORKLIFT CPQYD30

lp gas forklift Quick Details

Condition:New

Place of Origin:Anhui, China (Mainland)

Brand Name:Vmax

Model Number:CPQYD30

Type:Powered Pallet Truck

Power Souce:Gasoline Engine

Rated Loading Capacity:3000KG

Max. Lifting Height:6000mm

Min. Lifting Height:3000mm

Fork Length:1070mm

Fork Width:125mm

Overall Dimensions:2580*1160mm

Certification:CE ISO TUV GS

After-sales Service Provided:Engineers available to service machinery overseas

color:nacarat

load center:500mm

lp gas forklift specification:

VMAX FORKLIFT LPG FORKLIFT CPQYD18		SPECIFICATIONS OF 1.5-4.0 TON LPG FORKLIFT

Main Information
1	Manufacturer		VMAX
2	Model		Unit	CPQD18	CPQD20	CPQYD20	CPQD25	CPQYD25	CPQD30	CPQYD30	CPQYD35	CPQYD40
3	Power type			Gasoline/Liquefied gas/Natural gas
4	Rated capacity		kg	1800	2000		2500		3000		3500	4000
5	Load center		mm	500
6	Operator type			Drive in seat
Size
7	Max. lift height of mast with Load-backrest		mm	4030	4030		4030		4262		4262	4275
8	Max.lift height of fork(standard)		mm	3000	3000		3000		3000		3000	3000
9	Height of mast (standard)		mm	1985	2000		2000		2065		2180	2150
10	Free lift height (standard)		mm	125	170		170		160		170	150
11	Height of Load-backrest		mm	960	995		995		1227		1222	1240
12	Distance from seat to overhead guard		mm	1015	1000
13	Front wheel overhead		mm	2070	2070		2070		2090		2090	2105
14	Length with fork		mm	2230	2502		2576		2682		2693	2895
15	Front overhang		mm	420	477		477		479		498	500
16	Rear overhang		mm	424	420		494		495		495	495
17	Wheel base		mm	1400	1600		1600		1700		1700	1900
18	The height of traction pin		mm	230	290		290		310		310	330
19	Min. ground clearance		mm	100	110		110		135		135	130
20	Overall width		mm	1070	1170		1170		1225		1225	1410
21	The distance between forks		mm	910/125	1024/200		1024/200		1060/250		1060/250	1290/260
22	Tread(front /rear)		mm	890/920	970/970		970/970		1000/970		1000/970	1160/1065
23	Min. Turning radius (outside)		mm	2060	2170		2240		2400		2420	2700
24	Min. Turning radius (inside)		mm	130	160		160		200		200	230
25	Min. Intersecting aisle		mm	1865	2200		2280		2380		2400	2685
26	Mast tilt angle		deg	6° / 12°
27	Fork size		mm	920X100X35	1070X100X40		1070X100X45		1070X125X45		1070X125X50	1070X130X50
Performance
28	Speeds	Max.Drive speeds (with/without load)	km/h	13.5/14.5	17/19		17/19		18/19		19/19	18/19
29		Lifting speeds (with load)	mm/s	460/500	530/550		530/550		440/480		330/370	350/380
30		Lowering speeds (with / without full load)	mm/s	460/550	450/550		450/550		450/550		350/400	350/400
31	Max. tractive force		KN	20/15.2	20/15	21/15	20/15.2	21/15.2	20/16	20/16	20/16.3	20/18
32	Max.grade ability (with/ without full load)		%	18/20	21/20	27/20	18/20	23/20	20/20	20/20	16.5/20	15/18
Weight
33	Total weight		kg	2680	3320		3680		4270		4700	4270
34	Weight Distribution full load (front/ rear)		kg	3640/520	4788/532		5562/618		6543/727		7380/820	8380/930
35	Weight Distribution zero load(front / rear)		kg	1170/1490	1328/1992		1420/2208		1708/2562		1880/2820	2120/3190
Wheels and Tyres
36	Quantity of wheels			2X / 2
37	Type of tyres			Penumatic tires
38	Tires	Front		6.50-10-10PR	7.00-12-12PR		7.00-12-12PR		28X9-15-12PR		28X9-15-12PR	250-15-16PR
39		Rear		5.00-8-10PR	6.00-9-10PR		6.00-9-10PR		6.00-10-10PR		6.00-10-10PR	6.00-10-10PR
40	Driving Brake			hydraumatic pedal
41	Parking Brake			Mechanical manual
Control device for driving and transmitting
42	Battery		V/AH	12/80
43	Engine (standard)	Model		GQ-4Y
44		Rated output	kw/rpm	37/2800								57/2800
45		Rated torque	N.m/rpm	154/1800								198/1800
46		No.of cylinder		4-91X86
47		Displacement	L	2.237
48	Fuel tank capacity		L	60
49	Number of speeds for transmission		1-1 Power shift transmission / 2-2 Hand shift transmission
