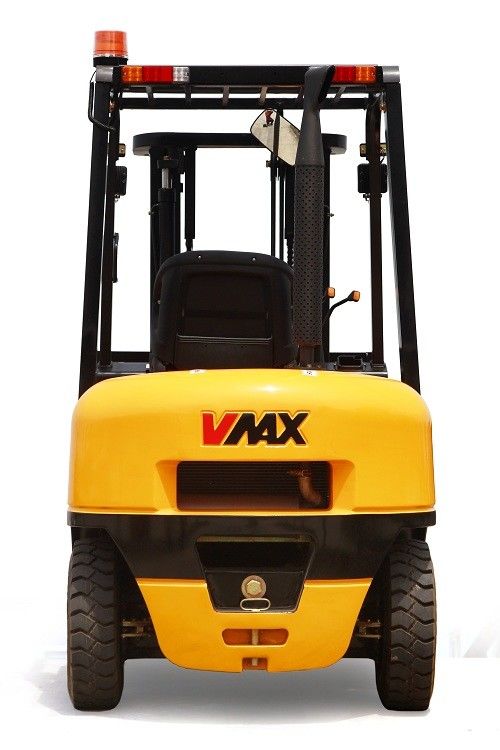

4.5T Electric Heavy Duty Forklift Truck Reach And Counterbalance Low Noise

Product Details:

Place of Origin:	ANHUI,CHINA
Brand Name:	VMAX
Certification:	CE,SGS,BV
Model Number:	CPD35

Payment & Shipping Terms:

Minimum Order Quantity:	1UNIT
Price:	Negotiable
Packaging Details:	bubble wrap
Delivery Time:	45 DAYS
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000unit / year

Contact Now

Detailed Product Description

Product Name:	Diesel Engine Forklift	Power Souce:	Diesel Engine
Rated Loading Capacity:	4500kgs	Max. Lifting Height:	3000mm
Min. Lifting Height:	150mm	Certification:	CE, BV, SGS
High Light:	counterbalance lift truck , reach counterbalance forklift

4.5T Electric Heavy Duty Forklift Truck Reach And Counterbalance Low Noise

Features:

1. Environment friendliness
Low noise and exhaust emissions make Noelift forklift environment friendliness.
2. Outstanding comfort
Operation comfort is improved through ergonomic design, enlarged operation space and reasonable layout.
3. Safety and reliability
It is designed to be thougher and more durable
4. Easy maintenance
It is easy to carry out maintenance and thus prolongs truck service life.
5. Excellent working efficiency
The operating performance and efficiency are improved.

4.5T COUNTER BALANCE DIESEL FORKLIFT/ price of forklift SPECIFICATION
Model		Unit	CPC45/CPCD45
Power type			Diesel
Rated capacity		kg	4500
Load center		mm	500
Mast Lifting height		mm	3000
Free lift height		mm	150
Fork size(LWT)		mm	1070×150×50
Tilting Angles(Front/Rear)		deg	6°/12°
Front overhang		mm	545
Exterior Size	Length without fork	mm	2900
	Overall width	mm	1480
	Mast drop	mm	2230
	Max.lift	mm	4200
	Front-wheel Overhead	mm	2300
Min Turning Radius		mm	2740
Min.intersecting aisle		mm	3365
Speeds	Max Driving speeds	km/h	19/21
	Lifting speeds	mm/s	500/530
	Lowering speeds	mm/s	≤600
Max.grade ability		%	27/20
Total weight		kg	6400
Tires	Front		300-15-18PR
Tires	Rear		7.00-12-12PR
Wheelbase		mm	2000
Tread	Front	mm	1180
Tread	Rear	mm	1190
Min.ground clearance		mm	155
Engine	Model		4108
	Rated output	kw/rpm	59/2400
	Rated torque	N.m/rpm	288/1600
	No.of cylinder		4
	Displacement	L	4.33
Fuel tank capacity		L	95
