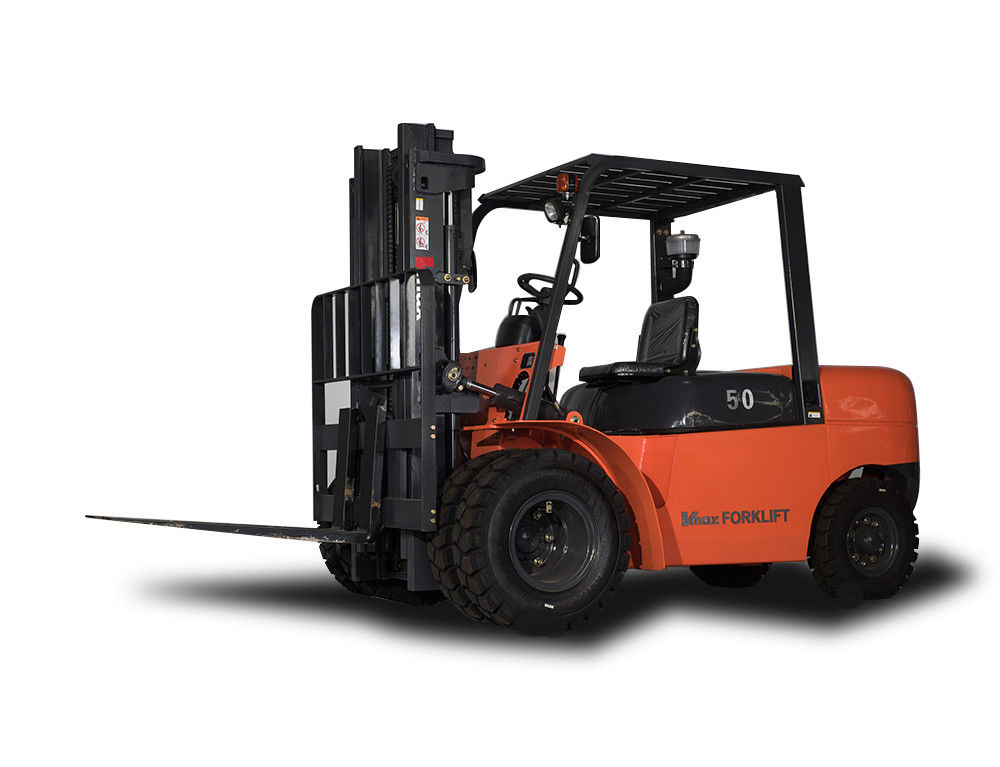

7 Ton Lightweight Diesel Powered Forklift Hoist Lift Truck No Oil Leakage
Product Details:
| Place of Origin: |
ANHUI,CHINA |
| Brand Name: |
VMAX |
| Certification: |
ISO,CE,SGS |
| Model Number: |
CPCD70 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1UNIT |
| Price: |
Negotiable |
| Packaging Details: |
bubble wrap |
| Delivery Time: |
45 DAYS |
| Payment Terms: |
L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: |
3000unit / year |
Contact Now
Detailed Product Description
| Product Name: |
Electric Lift Truck |
Condition: |
New |
| Brand Name: |
Vmax |
Type: |
Electric Fork Truck |
| Power Souce: |
Diesel Engine |
Rated Loading Capacity: |
7 Ton |
| High Light: |
3 wheel electric forklift, warehouse stand up forklift |
Diesel Forklift / lightweight forklift product Characteristics
Integrated central control box the reliability of electric system
Ergonomical design ensures best operation
Energy-saving hydraulic system decreases fuel consumption
High-quality hydraulic hoses, no oil leakage
-
|
Item
|
Specification
|
Unit
|
Parameter
|
|
General
|
1 |
Model |
|
CPCD70 |
| 2 |
Power Type/model |
|
Diesel |
| 3 |
Rated Capacity |
Kg |
7000 |
| 4 |
Load Center |
mm |
600 |
| Dimensions |
5 |
Lift Height |
mm |
3000 |
| 6 |
Fork Size(LxWxT) |
mm |
1220×150×65 |
| 7 |
Fork Spread(outside)(Min./Max) |
mm |
450/1960 |
| 8 |
Mast Tilt Angle(F/R) |
deg |
6·/12· |
| 9 |
Fork Overhang |
mm |
680 |
| 10 |
|
Length without forks |
mm |
3590 |
| 11 |
Overall Width |
mm |
1995 |
| 12 |
Mast Lowered Height |
mm |
2625 |
| 13 |
Overhead Guard Height |
mm |
2485 |
| 14 |
Outer turning Radius |
|
mm |
3360 |
| Performance |
15 |
Speed(Unload/Load) |
Travel |
km/h |
22/11 |
| 16 |
Lifting |
mm/s |
300 |
| 17 |
Max.gradeability(Load) |
% |
20 |
| 18 |
Max.drawbar pull(Load) |
KN |
35 |
| 19 |
service Weight |
kg |
9350 |
| Wheels&Tires |
20 |
Tire |
Front |
|
4×8.25-15-14PR |
| 21 |
Rear |
|
2×8.25-15-14PR |
| 22 |
Tread |
Front |
mm |
1470 |
| 23 |
Rear |
mm |
1550 |
| 24 |
Wheelbase |
mm |
2250 |
| 25 |
Ground Clearance(Under mast) |
mm |
220 |
| Power& Transmission |
26 |
Battery |
Voltage/Capacity(5HR) |
VA/h |
2×12/80 |
| 27 |
Engine |
Model |
|
6BG1 |
| 28 |
Manufacture |
|
ISUZU |
| 29 |
Rated Output |
Kw |
82 |
| 30 |
Rated Torque |
N.m |
353 |
| 31 |
No.Of Cyinder |
|
6 |
| 32 |
Bore*stroke |
mm |
102/118 |
| 33 |
Displacement |
L |
5.785 |
| 34 |
Transmissions |
Manufacture |
|
VMAX |
| 35 |
Type |
|
Fluid TorqueConverter |
| 36 |
StageFWD/RVS |
|
2/2 |
| |
37 |
Operating Pressute |
Mpa |
19 |
Wide-view mast design improves the productivity and safety
