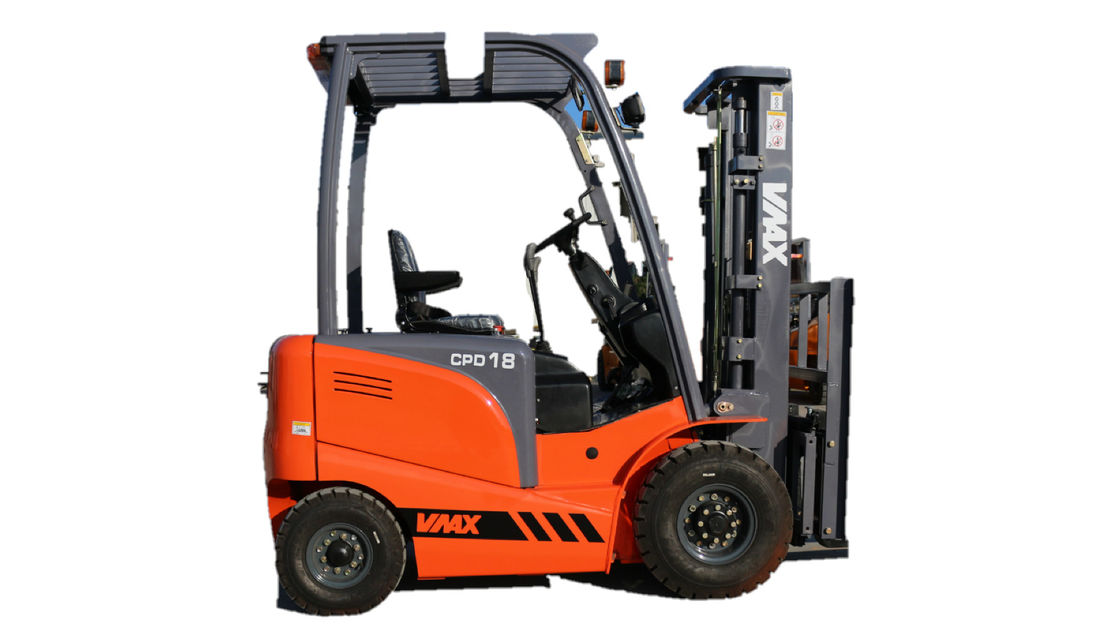

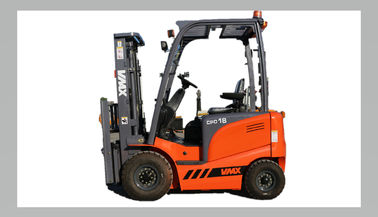

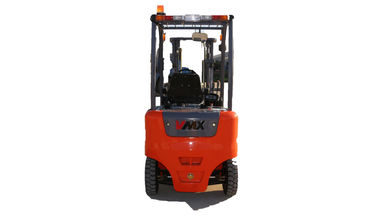

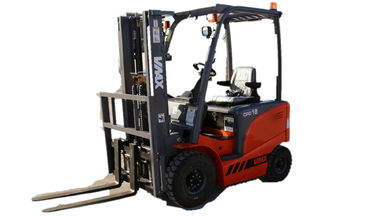

Name: AC Motor Electric Warehouse Lifts Rated Loading Capacity 1800kg CPD18
Brand: VMAX
SKU: CPD18

AC Motor Electric Warehouse Lifts Rated Loading Capacity 1800kg CPD18

Product Details:

Place of Origin:	ANHUI,CHINA
Brand Name:	VMAX
Certification:	CE,SGS,BV
Model Number:	CPD18

Payment & Shipping Terms:

Minimum Order Quantity:	1UNIT
Price:	Negotiable
Packaging Details:	bubble wrap
Delivery Time:	45 DAYS
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000unit / year

Contact Now

Detailed Product Description

Product Name:	Industrial Forklift Truck	Power Source:	AC Motor
Rated Loading Capacity:	1800kg	Tire:	Pneumatic Tire
Power:	48V/450AH	Transmission:	Auto Hydraulic Transmission
High Light:	industrial forklift truck , warehouse stand up forklift

vmax electrical forklift 1.8ton CPD18

warehouse lift truck Quick Details

Condition:New

Place of Origin:Anhui, China (Mainland)

Brand Name:Vmax

Model Number:CPD18

Type:Manual Pallet Truck

Power Souce:AC Motor

Rated Loading Capacity:1800kg

Max. Lifting Height:6000mm

Min. Lifting Height:3000mm

Fork Length:920mm

Fork Width:100 Mm

Overall Dimensions:2995*1080*2170mm

Certification:CE .SGS.BV

After-sales Service Provided:Engineers available to service machinery overseas

Color:Customer Demanded

Loading Capacity:1800KG

Weight:3650KG

Load Center:500 Mm

Tire:Pneumatic Tire

Mast:2stage 3m Mast

Lift Drive / Actuation:Hydraulic Pallet Truck

Power:48V/450AH

Turning Radius(Outside):1920mm

Transmission:Auto Hydraulic Transmission

SPECIFICATIONS of 1.5-3.5Ton Electric Forklift

Main Information
1.1	Brand		VMAX
1.2	Model		CPD15	CPD18	CPD20	CPD25	CPD30	CPD35
1.4	Operation type		car type	car type	car type	car type	car type	car type
1.5	Load capacity	kg	1500	1800	2000	2500	3000	3500
1.6	Load center	mm	500	500	500	500	500	500
2.1	Weight with battery	kg	3450	3650	4400	4600	4980	5100
Tire,chassis
3.1	Tire Type,Driving wheel/Load wheel		Pneumatic tire
Size
4.1	Mast tilt,Forward/backward	α/β(°)	6/12	6/12	6/12	6/12	6/12	6/12
4.2	Mast height after mast fall	mm	1995	1995	1995	1995	2025	2025
4.3	Free lift height	mm	120	120	100	100	100	100
4.4	Standard Mast height	mm	3000	3000	3000	3000	3000	3000
4.7	Overhead guard height	mm	2170	2170	2220	2220	2220	2220
4.8	Overall length	mm	2995	2995	3350	3350	3620	3620
4.9	Vehicle width	mm	1080/1070	1080/1070	1150	1150	1220	1220
4.1	Fork size	mm	40x100x920	40X100X920	40X120X1070	40X120X1070	45X125X1070	50X125X1070
4.11	Channel width,with 1000X1200mm pallet	mm	3970	3970	4210	4210	4520	4520
4.12	Channel width,with 800X1200mm pallet	mm	4015	4015	4260	4260	4560	4560
4.13	Turning radius	mm	1920	1920	2100	2100	2300	2300
Performance
5.1	Walking speed,loaded/withoutload	km/h	10.5/11	10.5/11	13/13.5	13/13.5	11/12	11/12
5.2	lifting speed,loaded/load	m/s	0.3/0.45	0.3/0.45	0.3/0.45	0.3/0.45	0.23/0.37	0.23/0.37
5.3	Dropping speed loaded/without load	m/s	0.45/0.44	0.45/0.44	0.44/0.435	0.44/0.435	0.50/0.48	0.50/0.48
5.6	Maximum traction,loaded	N	11000	11000	17000	17000	18000	18000
5.8	Max grade ability,loaded/without load	%	10.5/14	10.5/14	10.5/14	10.5/14	10.5/12	10.5/12
Drive
6.1	Drive motor power	kw	8	8	11	11	16.6	16.6
6.2	Drive motor power	kw	11	11	8.6	8.6	10	10
6.4	Level voltage/Capacitance	V/Ah	48/450	48/450	48/630	48/630	80/500	80/500
Others
7.1	Drive System	DC/AC
7.2	Electrical control system	Curtis from America
