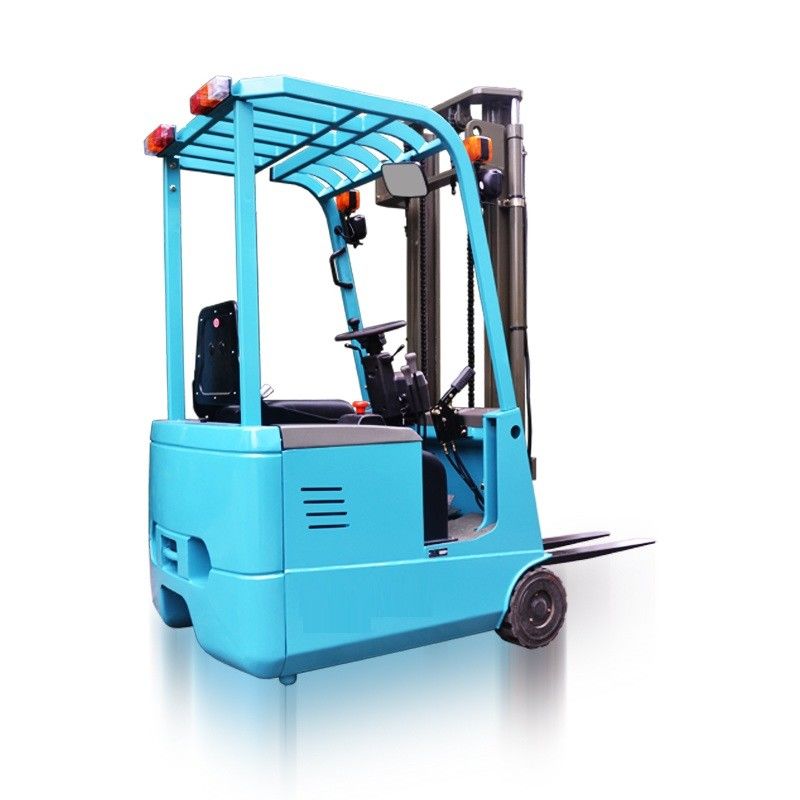

AC Motor Three Wheel Electric Forklift 1000kg Rated Loading Capacity New Condition
Product Details:
| Place of Origin: |
ANHUI,CHINA |
| Brand Name: |
VMAX |
| Certification: |
CE ISO |
| Model Number: |
VKA10-30 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1UNIT |
| Price: |
Negotiable |
| Packaging Details: |
bubble wrap |
| Delivery Time: |
45 DAYS |
| Payment Terms: |
L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: |
3000unit / year |
Contact Now
Detailed Product Description
| Product Name: |
Three Wheel Electric Forklift |
Max. Lifting Height: |
3000MM |
| Power Souce: |
AC Motor |
Rated Loading Capacity: |
1000KG |
| Fork Length: |
2265MM |
Fork Width: |
915mm |
| High Light: |
3 wheel forklift, battery operated lift trucks |
AC Motor Three Wheel Electric Forklift Chinese 3 Wheel Truck 1000KG Capacity
Three Wheel Electric Forklift Truck Quick Details
Condition:New
Place of Origin:Anhui, China (Mainland)
Brand Name:VMAX
Model Number:VKA10-30
Type:Powered Pallet Truck
Power Souce:AC Motor
Rated Loading Capacity:1000KG
Max. Lifting Height:3000MM
Fork Length:2265MM
Fork Width:915MM
Overall Dimensions:920*100*35
Certification:CE
After-sales Service Provided:Engineers available to service machinery overseas
3 Wheel Electric Forklift Truck
Note: AC drive motor with strong applicability suitable for small space operation and storey operation;
Three Wheel Electric Forklift Truck specification:
| Description Model No. |
VKA10-30 |
VKA15-30 |
| Rated Capacity (KG) |
1000 |
1500 |
| Operator Type |
Seated |
Seated |
| Max. Lifting Height (MM) |
3000 |
3000 |
| Min. Turning Radius (MM) |
1170 |
1275 |
| Min. Stacking Aisle---mm (1200*1200 Pallet) --AST |
2870 |
2975 |
| Max Travel Speed km/h-laden/unladen |
6.5/7.5 |
6.0/7.0 |
| Load center MM |
500 |
500 |
| Fork Dimensions-L/W/T---mm |
920*100*35 |
920*100*35 |
| Max. Gradeability ---%--Laden/unladen |
42226 |
42226 |
| Lifting Speed (MM/S)-laden/unladen |
125/170 |
125/170 |
| Overall Length (MM) |
2265 |
2370 |
| Length-to Fork Face |
1345 |
1450 |
| Overall Width (MM) |
915 |
1055 |
| Height-Overhead guard--mm |
1965 |
1965 |
| Height---Mast Lowered (MM) |
2065 |
2065 |
| Height-Mast Extended w/ Load-Backrest -mm |
3545 |
3545 |
| Height--Free Lift --mm |
0 |
0 |
| Height--seat to overhead guard ---mm |
1000 |
1000 |
| Tilt Angle----Forward/Backward--deg. |
2/4 |
2/4 |
| Fork Spread Range (MM) |
220-548 |
220-548 |
| Front Overhang ----mm |
175 |
175 |
| Wheelbase ----mm |
880-961 |
950-1031 |
| Tread ----mm --front/rear |
747 |
871 |
| Min Ground Clearance--mm |
90 |
90 |
| Front Tyre -- (MM) |
φ305x127 |
φ305x140 |
| Rear Tyre -- (MM) |
φ267x127 |
φ267x127 |
| Service Brake |
Hydraulic |
|
| Parking Brake |
Hand |
|
| Battery V/AH |
24V /360 AH |
24V/480 AH |
| Battery-Weight ---kg |
295 |
370 |
| Charger-Intelligent |
24V /40 A |
24 V/50 A |
| Driving Motor (KW) |
2.8 |
2.8 |
| Steering Motor (KW) |
0.75 |
0.75 |
| Lifting Motor (KW) |
3.5 |
3.5 |
| Service Weight ---kg --incl. Battery |
1950 |
2170 |
