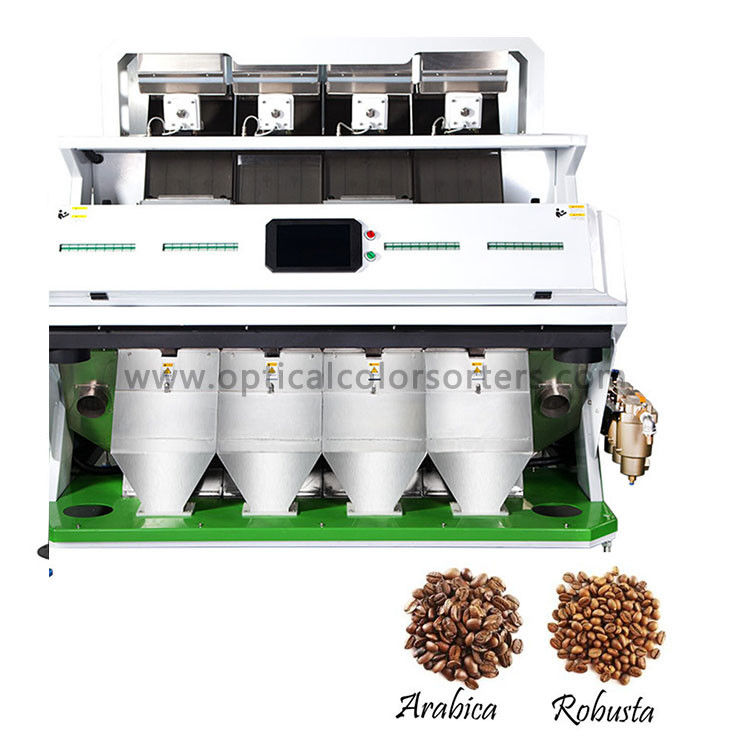

Arabica and Robusta Optical Coffee Been Sorting Machines Introduction
Most fine coffee goes through a battery of machines that sort the coffee by density of bean and by bean size, all the while removing sticks, rocks, nails, and miscellaneous debris that may have become mixed with the coffee during drying. First machines blow the beans into the air; those that fall into bins closest to the air source are heaviest and biggest; the lightest (and likely defective) beans plus chaff are blown in the farthest bin. Other machines shake the beans through a series of sieves, sorting them by size. Finally, a machine called a gravity separator shakes the sized beans on a tilted table, so that the heaviest, densest and best vibrate to one side of the pulsating table, and the lightest to the other.

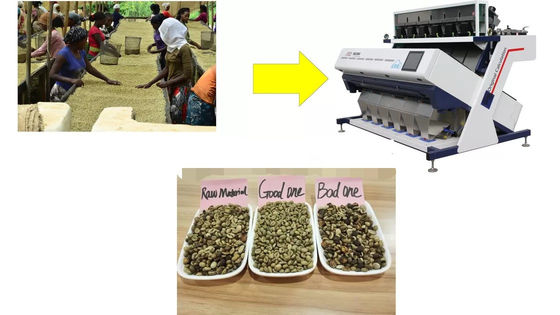

The final step in the cleaning and sorting procedure is called coffee bean optical sorting machine, or separating defective beans from sound beans on the basis of color rather than density or size. Color sorting is the trickiest and perhaps most important of all the steps in sorting and cleaning. With most high-quality coffees color sorting is done in the simplest possible way: by hand. Teams of workers pick discolored and other defective beans from the sound beans. The very best coffees may be hand-cleaned twice (double picked) or even three times (triple picked). Coffee that has been cleaned by hand is usually called European preparation; most specialty coffees have been cleaned and sorted in this way.
Color sorting can also be done by machines. Streams of beans fall rapidly, one at a time, past sensors that are set according to parameters that identify defective beans by value (dark to light) or by color. A tiny, decisive puff of compressed air pops each defective bean out of the stream of sound beans the instant the machine detects an anomaly. However, these machines are currently not used widely in the coffee industry for two reasons. First, the capital investment to install these delicate machines and the technical support to maintain them is daunting. Second, sorting coffee by hand supplies much-needed work for the small rural communities that often cluster around coffee mills. Nevertheless, computerized color sorters are essential to coffee industries in regions with relatively high standards of living and high wage demands.
NEWBELT comprehensive product portfolio has been carefully developed to offer processors the best solutions for conventional and challenging sorting applications. The 6SXM range has four technology variants, each designed in different levels for defect detection.
Subtle colour sorting
multiple visible wavelengths (for example: red, green and blue) .This can detect the subtlest colour variations of coffee beans
Superior colour sorting
two visible wavelengths (in this example: red and green).
This can detect not only light and dark defects but also other colour variations.
Simultaneous light and dark sorting
uses two visible wavelengths independently (in this example: red and green).
This is for detecting both light and dark defects simultaneously.
Independent light or dark sorting
The standard RGB color sorter uses one visible wavelength (in this example: either red or green).This is best suited for mainstream colour sorting applications which include removing light or dark defects.
CCD color sorters is ideal for sorting Arabica coffee beans, removing a variety of defects to increase product quality and safety.By incorporating the latest technological advances, defects such as sticks, stones, odd colors beans and other foreign seeds can be removed effectively and efficiently.
For primary defects, we have a very high efficiency in eliminating serious defects or completely stained grains (black and red)
Arabica and Robusta Optical Coffee Been Sorting Machines Technical Parameters
| Model |
6SXM-68 |
6SXM-136 |
6SXM-272 |
6SXM-408 |
6SXM-612 |
6SXM-680 |
| Output(t/h) |
0.6-1 |
1.2-2 |
2.4-5 |
4-7 |
6-10 |
8-16 |
| Carry over Rate(Bad:Good) |
>12.5:1 |
>12.5:1 |
>12.5:1 |
>12.5:1 |
>12.5:1 |
>12.5:1 |
| Sorting Accuracy |
≥99.99% |
≥99.99% |
≥99.99% |
≥99.99% |
≥99.99% |
≥99.99% |
| Voltage(V/Hz) |
220V 50HZ |
220V 50HZ |
220V 50HZ |
220V 50HZ |
220V 50HZ |
220V 50HZ |
| Power Supply(Kw) |
1.0-1.3 |
1.4-1.8 |
2.5-2.9
|
4.8-5.2 |
6.6-7.2 |
8.5-10.5
|
| Pressure(Mpa) |
0.4-0.6 |
0.5-0.7 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
| Air Consumption(L/min) |
<1000 |
<1800 |
<3200
|
<4800 |
<5600
|
<6100 |
| Weight |
260kg |
440kg |
820kg |
1180kg |
1620 |
2200
|
| Dimension |
950*1510
*1428mm |
1290*1510*1770mm |
2010*1530*2100mm |
2680*1530*2100mm |
3710*1530*2100mm |
4200*1530*2250mm |
Remark:We have many models from 1 chute to 16 chutes for option to meet any different production capacity.The exact production capacity may change due to different impurity level.

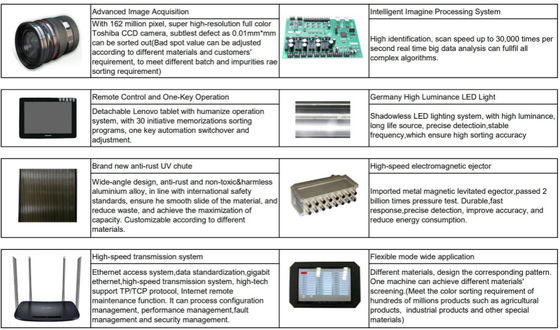

Arabica and Robusta Optical Coffee Been Sorting Machines Advantages
1.Linear array CCD adopt full-color sorting technique, high resolution for full color, High speed sorting recognition is more exquisite.
2.Blend in Shape recognition technique,more precise to make a grade to the rice and grain.
3.Visible full color light spectral distribution, free to adjust the spectral region.
4. It can be suitable to sort a variety of grains, industrial products, other particles and sheet material through choose different sloping chute.
5.High resolution imaging technology,take the pictures to collect the images of sorted products,it can be defined sorting for thousands of materials and 100,000 colors, truly achieve wide use color sorting.
6.Each group can independently and simultaneously process multi-tasking and multi-mode color sorting,multi, anti-election and multi-color simultaneously.
7.High Brightness,long-life LED light can satisfy to different products and color,and needn't to change LED light.
8.Powerful software platform, easy to lear and know, simple to operate.
Arabica and Robusta Optical Coffee Been Sorting Machines Sorting Result
Arabica and Robusta coffee defects
Robusta coffee defects
Why Choose NEW BELT Arabica and Robusta Optical Coffee Been Sorting Machines?
1) Designed and manufactured by a major Chinese color sorter company who has been devoted in color sorter
Manufacture for over 10 years, the technology is mature and the machine is long time tested by the market
2) Famous of high accuracy and persistence
3) All our machines can be customized, including Italian matrix ejectors, Japanese SMC ejectors, Japanese Nikon cameras, etc
4) OEM is available for all of our machines
5) Engineers available to provide installation and after sale service in all countries.
