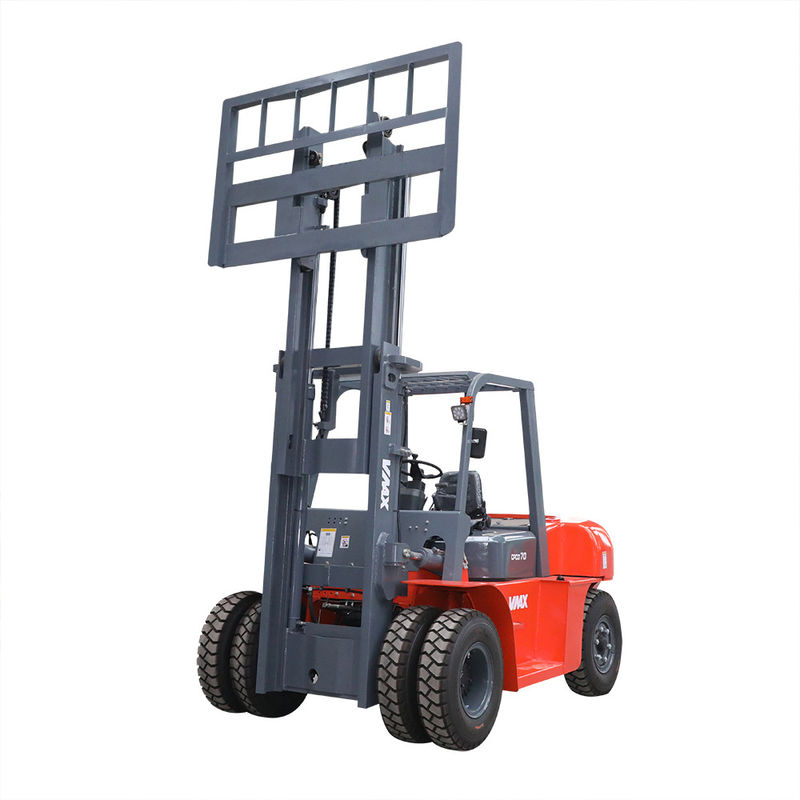

Name: Automatic 5.0 Ton Electric Powered Forklift High Efficiency OEM ISO9001
Brand: vmax
SKU: CPCD50

Automatic 5.0 Ton Electric Powered Forklift High Efficiency OEM ISO9001

Product Details:

Place of Origin:	Anhui
Brand Name:	vmax
Certification:	CE,ISO9001,SGS
Model Number:	CPCD50

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Packaging Details:	EXPORT PACKAGE
Delivery Time:	30days
Payment Terms:	L/C, T/T, Western Union, MoneyGram Credit Card
Supply Ability:	3000unit/YEAR

Contact Now

Detailed Product Description

Color:	Yellow,red,white	Power:	AC Motor
Max. Lifting Heigh:	6000mm	Fork Length::	1220
OEM:	Offered	Load Center:	600mm
High Light:	warehouse stand up forklift , four wheel drive forklift

VMAX 5.0tons electric forklift CE EPA Euro3 certificate with ISUZU Mitsubishi CPCD50 FD50 diesel forklift truck parts

Product Application

3ton diesel forklift

1) Engine optional: China Xinchai Quanchai 6110; Japan Isuzu 6BG1, Mitsubishi S4S-T, Cummins 3.8, Kohler 3404TCR etc.;

2) Mast optional: 3/4/4.5/5/5.5/6/7m duplex mast, 3.6/4/4.5/5/5.5/6m triplex mast, 3/3.3/3.5/4/m duplex full free mast.

3) Transmission: Automatic/manual;

4) Tire: pneumatic/Solid/non-mark solid;

5) Forks:1220/1370/1520/1670/1820/1970mm;

6) Attachments: Side shifter, fork positoner, fork sleeve, paper roller clamp, bale clamp, drum clamp, load extender, rotator, fork clamps, push/pull, etc..

7) Additional: cabin, heating, fan, air conditioner, high exhaust, paper fold, USB, camera & image, suspension seat, etc..

Engine China 6110	Engine power	Kw/rpm	83/2000
	No. of cylinders	Kw/rpm	6-100x125
	Rated torque	n.m/rpm	450/1450
Engine Japan ISUZU 6BG1	Engine power	Kw/rpm	82.4/2000
	No. of cylinders	Kw/rpm	6-105x125
	Rated torque	n.m/rpm	416.8/1500
Main performance parameters	Max drive speed(with/without load)	km/h	26/28
	Lifting speed( with/without load)	mm/h	510
	Max. Gradeability	%	35/18
Lifting mast height	Max. lifting height of forks(standard)	mm	3000
	Max.lift height of mast with load-backrest(standard)	KN	4380
	Height of mast(standard)	KN	2500
Size	Free lift height(standard)	mm	205
	Distance from seat to overhead guard	mm	1045
	Overhead guard	mm	2450
	Overall length without fork	mm	3440
	Overall width	mm	1995
	Front overhang	mm	590
	Rear Overhang	mm	600
	Wheel base	mm	2250
	Height of traction pin	mm	395
	Min. ground clearance	mm	200
	Distance between forks	mm	300-1840
	Tread (front/rear)	mm	1470/1700
	Min. turning radius (outside/inside)	mm	3250
	Min. intersecting aisle	mm	2960
	Mast tilt angle	.	6/12
	Fork size	mm	1220x150x55
Weight	Total weight	kg	8160
	Weight of distribution full load(front/rear)	kg	11810/1350
	Weight distribution zero load(front/rear)	kg	4100/4060
Tires	Quantity of wheels		4x/2
	Type of tyres		Pneumatic tires
	Front		8.25-15-14PR
	Rear		8.25-15-14PR
