Name: Battery Power Electric Warehouse Forklift , Safety Rough Terrain Forklift
Brand: VMAX
SKU: CPD25

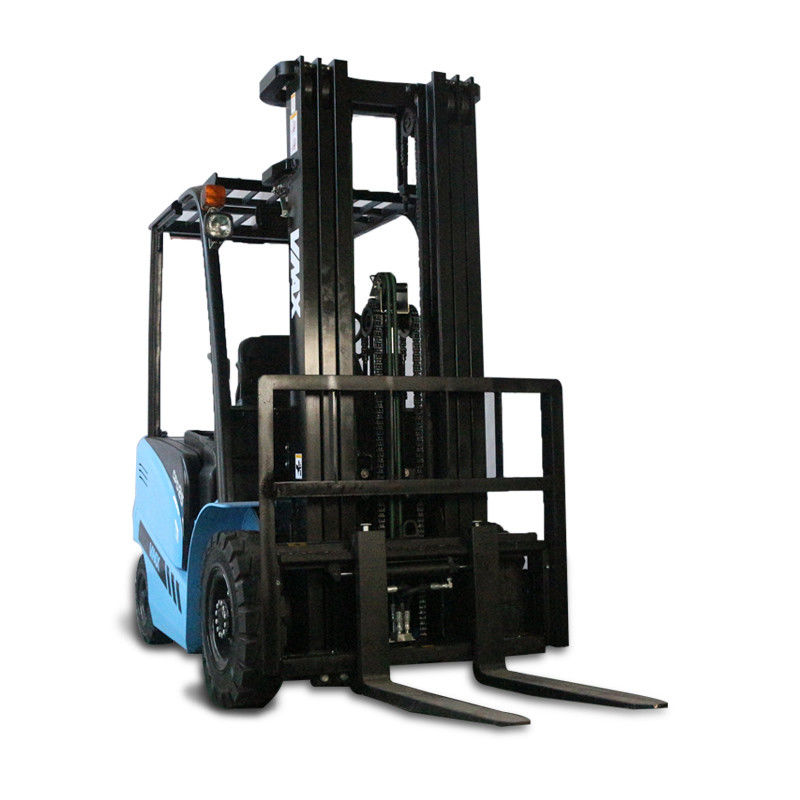

Battery Power Electric Warehouse Forklift , Safety Rough Terrain Forklift

Minimum Order Quantity:	1UNIT
Price:	Negotiable
Packaging Details:	bubble wrap
Delivery Time:	45 DAYS
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000unit / year

Contact Now

Detailed Product Description

Power:	Battery	Type:	Electric Lifts For Warehouse
Name:	Rough Terrain Lift Truck	Power Souce:	DC Motor
Max. Lifting Height:	6000mm	Min. Lifting Height:	3000mm
High Light:	warehouse stand up forklift , heavy duty forklift

Battery Power Electric Warehouse Forklift , Safety Rough Terrain Forklift

Electric forklift truck with 2,500kg load capacity

Model: CPD25

AC Motor, battery charger

Standard with 2-stage wide-view mast, lifting height is 3,000mm

Pneumatic tires, 1070mm forks,Safety seat,Free tool box and spare parts.

Back-up buzze, rearview mirror, full set of lights and so on.

Specification 2-2.5ton electric forklift trucks
Model		CPD20	CPD25
Load capacity kg		2000	2500
Load center mm		500	500
Power type		Battery Powered(DC/AC)
Max.lifting speeds(with load) mm/s		250	230
Max.Driving speeds(with without load) km/h		12.5/14	12/14
Max.Towing speeds(with load) kN		10	10
Gradeability(with load) %		15	15
Lifting height mm		3000	3000
Free lift mm		60	60
Tilting angles(forward-backward) .		6/12	6/12
Min. turning radius mm		2200	2250
Min. right angle aisle width mm		2050	2100
Min. under-clearance mm		110	110
Dimensions	A Overall length (inincluding fork) mm	3350	3380
	B Overall width mm	1160	1160
	H Overall height(mast lowered) mm	2130	2130
	H2 Overall height(mast extend) mm	4040	4040
H3 Overall height to overhead guard mm		2130	2130
B3 Fork width mm		100	122
H4 Fork thickness mm		40	40
A3 Fork length mm		920(1070)	920(1070)
A1 Fork overhang mm		451	451
A2 Wheel base mm		1550	1550
Tread	Front tread mm	970	970
Tread	Rear tread mm	950	950
Tyre	Front tyre	7.00-12	7.00-12
Tyre	Rear tyre	18×7-8	18×7-8
Total weight kg		3950	4300
Motor	Traction motor	XQ-8	XQ-8
Motor	Lifting motor	XQD-10-3S	XQD-10-3S
Battery	Battery type	D-600(700)	D-700
Battery	Battery voltage/Capacity V/Ah	48/600(700)	48/700
