Product Description

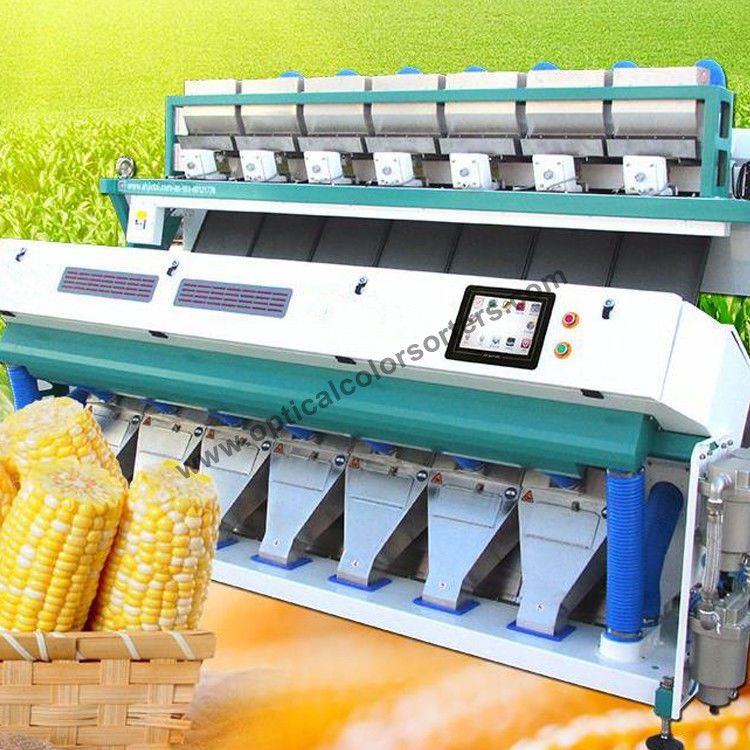

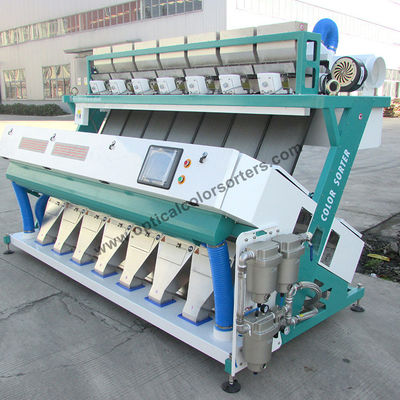

Intelligent corn color sorting machine,RGB CCD optical sorting machine, 1-14 chutes, 64-768 channels, separate the spotted, mouldy corn out from good grain, increase the production of maize corn processing line's capacity.
Technical Parameters
| Model |
ZF300 |
ZF500 |
ZF700 |
| Throughput(T/H) |
1.0-3.0 |
2.0-5.0 |
3.0-8.0 |
| Voltage(V) |
110-250V(50-60HZ) |
| Power(KW) |
1.8 |
2.6 |
3.5 |
| Weight/(KG) |
885 |
1275 |
1665 |
| Dimension(L*W*H/mm) |
1174*1658*2038 |
2402*1658*2038 |
3030*1658*2038 |
| Sorting accuracy(%) |
≥99 |
| Rejection rate(%) |
≥10:1 |
| Air consumption(L/min) |
800-1600 |
1300-2200 |
1800-3600 |
| Notes |
Subject to different impurities of raw materials,parameters listed in table will change to some extent. |
Examples of Sorting
Product Advantages
* Our optical sorting technology with high resolution pixel CCD camera,high reliability and long life LED light source;
* With efficient and stable software system, intelligent algorism, user friendly interface;
* Better sorting accuracy, lower carryover and bigger production capacity;
* SOC platform to realize stable, reliable, ultra-fast mass data processing;
* Corn color sorter machine with expert sorting solution realizes one key debugging;
* Our remote debugging, diagnosing and maintenance. Four core technologies to ensure your operations.
Working Principle
When color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods in the hopper.
