counterbalance forklift high reach forklift reach truck forklift
STANDARD INSTALLMENT:

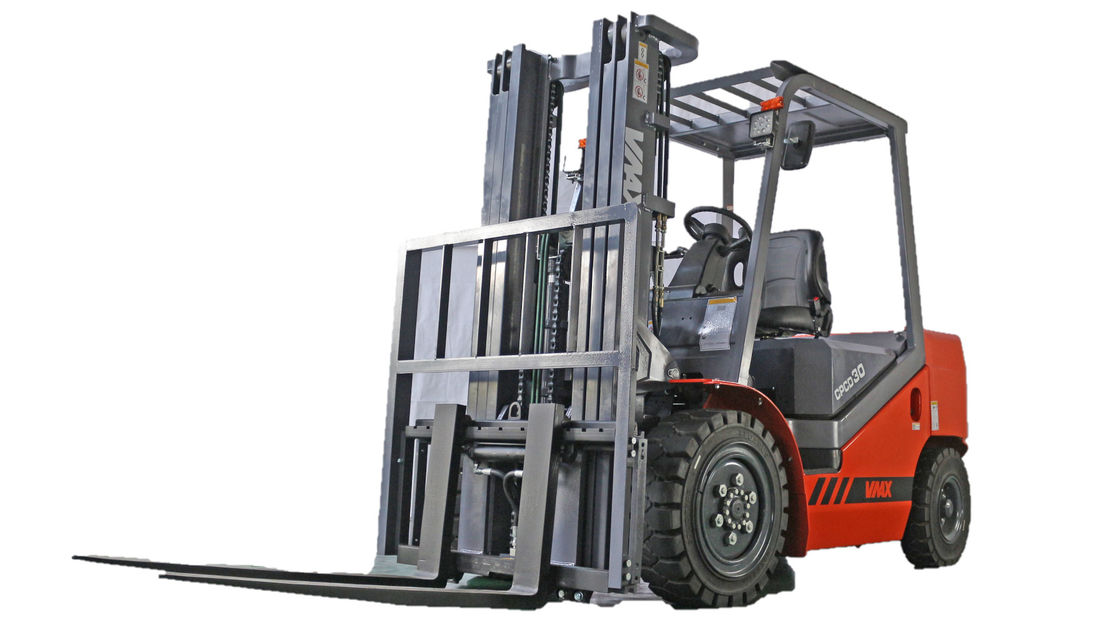

CPCD40: Load capacity 4000kg,hydraulic transmission,3m 2stage duplex mast,
China engine C498BPG,1070mm fork, Electronic gear transmission, key switch,
Pneumatic tyres,Safety seat,Free tool box and spare parts.
OPTION:
As a professional manufacturer of forklift, we also can offer you customized service,
the following items are optional:
Container mast, for example, 2-stage full free mast of 3m, 3-stage full free mast of 4.5m/ 4.8m
side shifter, fork positioner,longer forks, fork extension
For the details of customized configurations and options, please contact with us.
VMAX professional service will be impressed on you.
OTHERS :
A: date of delivery:15-25days after received the deposit
B: payment terms:T/T(30% deposit,balance paid before shipment).Or L/C at sight
C: Guaranty period: one year or 2000hours upon receiving goods.
| model |
CPCD40-X8 |
| Power type |
|
diesel |
| Rated capacity |
kg |
4000 |
| Load center |
mm |
500 |
| Mast Lifting height |
mm |
3000 |
| Fork size |
Length*Width*Thickness |
mm |
1070x150x50 |
| Tilting angles |
Front/Rear |
. |
6/12 |
| Min. Turning Radius |
mm |
2700 |
| Min. intersecting stacking aisle |
mm |
4420 |
| Min. intersecting aisle |
mm |
2685 |
| Min. ground clearance |
mm |
140 |
| Overhead guard height |
mm |
2105 |
| Front overhang |
mm |
500 |
| Max. driving speeds |
km/h |
19.5 |
| Max. lifting speeds |
mm/s |
400 |
| Max. grade ability |
% |
20 |
| Length without fork |
mm |
2895 |
| Overall width |
mm |
1410 |
| Max. lift |
mm |
4160 |
| Mast height |
mm |
2127 |
| Tires |
Front |
mm |
250-15-16PR |
| Rear |
mm |
6.5-10-10PR |
| Wheelbase |
mm |
1900 |
| Tread |
Front/ Rear |
mm |
1160/1065 |
| |
Self-possessed |
Kg |
5310 |
| Battery |
Voltage/Volume |
V/Ah |
12/105 |
| Engine |
Model |
|
498BPG |
| Rated output |
kw/r.p.m |
45/2500 |
| Rated torque |
Nm/r.p.m |
198/1800 |
| No.of cylinder |
|
4 |
| Displacement |
L |
3.168 |
| Fuel tank capacity |
L |
80
|
