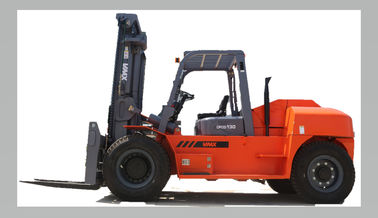

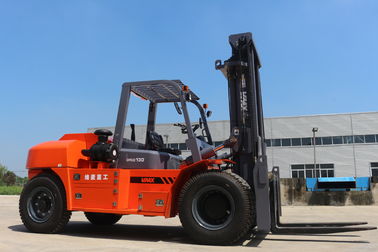

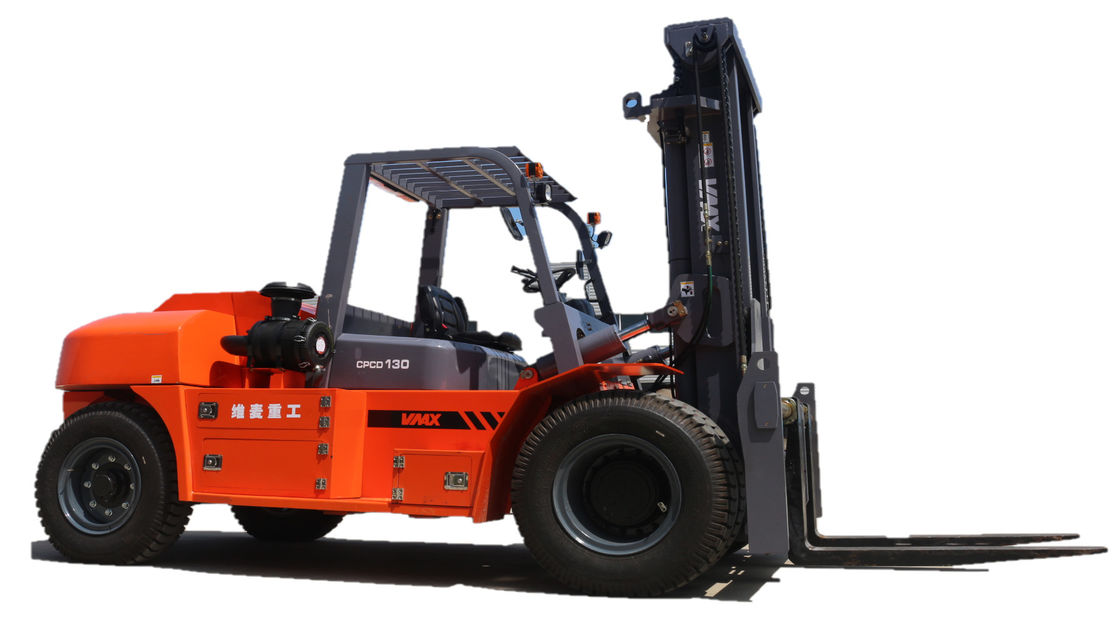

CPCD130 Vmax Diesel Operated Forklift Truck 13 Ton CAPACITY CE Approval
Product Details:
| Place of Origin: |
ANHUI,CHINA |
| Brand Name: |
VMAX |
| Certification: |
CE,SGS,BV |
| Model Number: |
CPCD130 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1UNIT |
| Price: |
Negotiable |
| Packaging Details: |
bubble wrap |
| Delivery Time: |
45 DAYS |
| Payment Terms: |
L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: |
3000unit / year |
Contact Now
Detailed Product Description
| High Light: |
warehouse stand up forklift, four wheel drive forklift |
| 13TON DIESEL FORKLIFT CHARACTERISTIC & PERFORMANCE |
| CHARACTERISTIC |
UNIT |
PARAMETER |
| MANUFACTURER |
VMAX |
| MODEL |
CPCD130 |
| CAPACITY |
Kg |
13000 |
| LOAD CENTRE |
mm |
600 |
| POWER TYRE |
DIESEL |
| OPERATION |
SEAT |
| TYRE |
|
|
| FRONT |
|
10.00-20-16PR |
| REAR |
|
10.00-20-16PR |
| DIMENSION |
|
|
| LIFT HEIGHT |
mm |
3000 |
| MAST TILT ANGLE |
° |
6°/12° |
| MIN.TURNING RADIUS |
mm |
4350 |
| OVERALL LENGTH(WITH FORK) |
mm |
4510(5880) |
| OVERALL WIDTH |
mm |
2350 |
| OVERALL HEIGHT |
mm |
3170 |
| WHEELBASE |
mm |
3000 |
| TREAD FRONT/REAR |
mm |
1724/1850 |
| OVERHANG FRONT/REAR |
mm |
760/750 |
| MIN.GROUND CLEARANCE |
mm |
260 |
| FORK REGULATING RANGE |
mm |
420-2200 |
| FORK LENGTH |
mm |
1370 |
| FORK THICKNESS |
mm |
175/80 |
| SELF WEIGHT |
Kg |
15300 |
| PERFORMANCE |
|
|
| LIFTING SPEED(LADEN) |
mm |
350 |
| LOWERING SPEED(LADEN) |
mm |
370 |
| DRIVING SPEED(LADEN/UNLADEN) |
mm |
27/29 |
| MAX.GRADEABILITY |
％ |
25 |
| MIN.RIGHT ANGLE AISLE WIDTH |
mm |
6300 |
| ENGINE/TRANSMISSION/AXLE |
|
|
| ENGINE MANUFACTURER/MODEL |
|
CA6DF3-16GAG3U(XICHAI) |
| CYLINDER NUMBERS/DISPLACEMENT |
/L |
6/7.127 |
| POWER RATE |
Kw/rmp |
118/2200 |
| ENGINE RATING/SPEED |
Nm/rmp |
640/1300-1700 |
| TRANSMISSION |
|
YQXD135A-970(ZHONGCHUAN) |
| DRIVING AXLE |
|
18MRZD-X211A(MERITOR) |
| TEERING AXLE |
|
G03L4-30001(HELI) |
