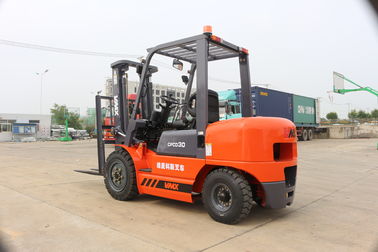

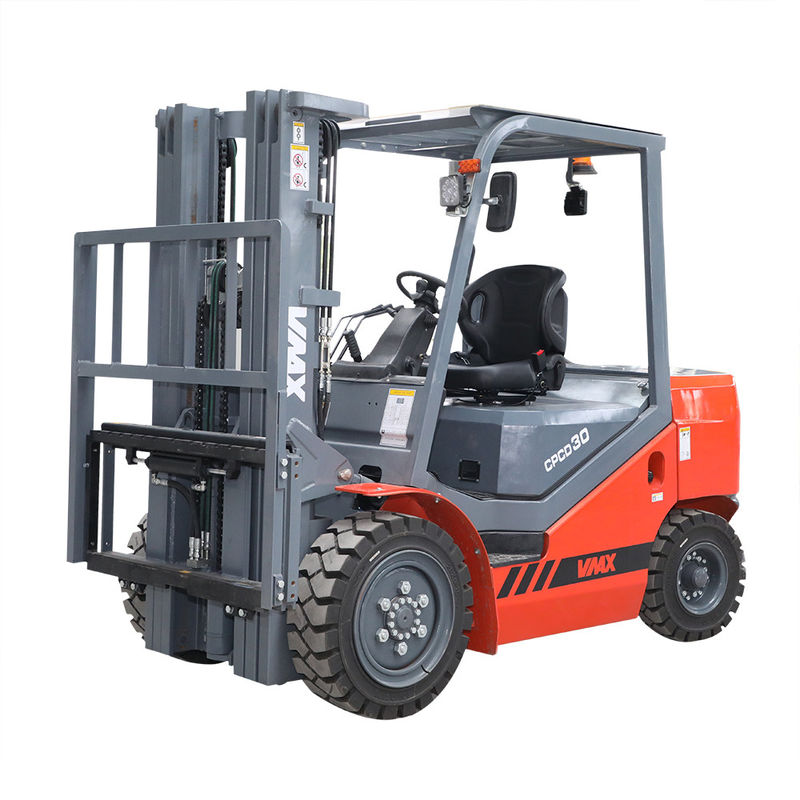

CPCD30 Diesel Powered Forklift Truck 125mm Fork Width With Isuzu Tyres
Product Details:
Place of Origin:
CN
Brand Name:
VMAX
Certification:
CE,BV,SGS,ISO9001
Model Number:
CPCD30
Payment & Shipping Terms:
Minimum Order Quantity:
1 unit
Price:
＄6,900.00-＄10,000.00/unit
Packaging Details:
nude package
Delivery Time:
25-30 days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
5,000 units/year
Contact Now
Detailed Product Description
Condition:
New
Power Source:
Diesel Engine
Fork Length:
1070mm
Fork Width:
125mm
Transmission:
Automatic
After-sales Service Provided:
Overseas Third-party Support Available, Engineers Available To Service Machinery Overseas, Online Support, Overseas Service Center Available, Free Spare Parts.
Overall Dimensions:
2682*2090*1225mm
Max. Lifting Height:
6000mm
Certification:
CE, BV,SGS,ISO9001
Color:
Red, Yellow, White, Green Etc
Warranty:
1 Year Or 2000 Hours
Engine:
Mitsubishi S4S, Xinchang A498, Xinchang C490, Xinchang A490, Isuzu C240
Load Center:
500mm
Loading Capacity:
3000kgs
High Light:
warehouse stand up forklift , four wheel drive forklift
CPCD30 diesel powered forklift truck for sale with isuzu tyres best quality:
Manufacturer's Data and Desigh Characteristics
Specifications
1
Manufacturer
VMAX
2
Model
Unit
CPCD30
3
Power type
DIESEL
4
Rated capacity
kg
3000
5
Load center
mm
500
6
Operator type
Drive in seat
Size
7
Max. lift height of mast with Load-backrest
mm
4262
8
Max.lift height of fork
mm
3000
9
Height of mast
mm
2065
10
Free lift height(with backrest)
mm
160
11
Height of Load-backrest
mm
1240
12
Distance from seat to overhead guard
mm
1000
13
overhead guard height
mm
2090
14
Length without fork
mm
2682
15
Front overhang
mm
479
16
Rear overhang
mm
495
17
Wheel base
mm
1700
18
The height of traction pin
mm
310
19
Min. ground clearance
mm
135
20
Overall width
mm
1225
21
The distance between forks
mm
1060/250
22
Tread(front /rear)
mm
1000/970
23
Min. Turning radius(outside)
mm
2400
24
Min. Turning radius(inside)
mm
200
25
Min. Intersecting aisle
mm
2380
26
Mast tilt angle
deg
6° / 12°
27
Fork size
mm
1070*125*45
Performance
28
Max.Drive speeds(with/without full load)
km/h
18/19
29
Lifting speeds (with /without full load)
mm/s
440/480
30
Lowering speeds(with /without full load)
mm/s
450/500
31
Max. tractive force(with /without full load)
KN
20/16
32
Max.grade ability (with/without full load)
%
20/20
Weight
33
Total weight
kg
4690
34
Weight Distribution full load (front/ rear)
kg
6543/727
35
Weight Distribution zero load(front / rear)
kg
1708/2562
Wheels and Tyres
36
Quantity of wheels
2 X / 2
37
Type of tyres
Air tires
38
Tires
Front
28x9-15-12PR
39
Rear
6.50-10-10PR
40
Driving Brake
hydraumatic pedal
41
Parking Brake
Mechanical manual
Control device for driving and transmitting
42
Battery
V/AH
12/80
43
Engine (standard)
Model
ISUZU C240PKJ-30
44
Rated output
kw/rpm
35.4/2500
45
Rated torque
N.m/rpm
137.7/1800
46
No.of cylinder
4-84X102
47
Displacement
L
2.369
48
Fuel tank capacity
L
60
49
Number of speeds for transmission
power pallet transmission
Words in red could be changeable for your special requirments.
