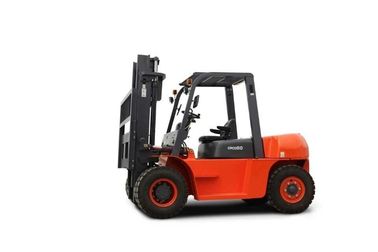

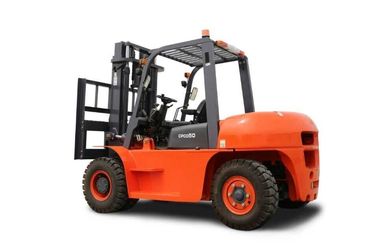

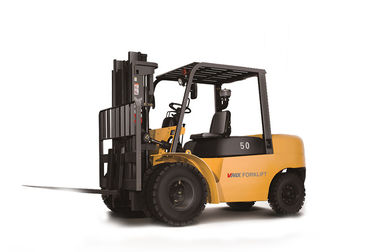

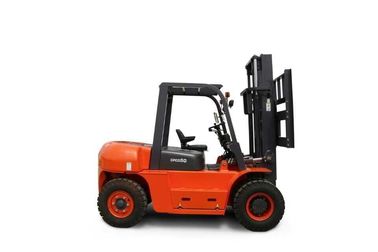

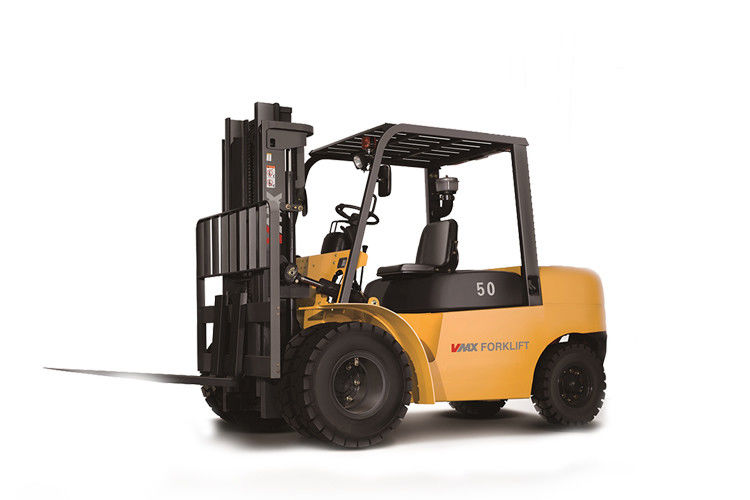

CPCD50 hydraulic transmission diesel forklift truck with double front wheel
Diesel Engine Forklift Truck STANDARD INSTALLMENT:
CPCD50: Load capacity 5000kg,hydraulic transmission,3m 2stage duplex mast,
China engine chaochai6102,1370mm fork, Electronic gear transmission, key switch,
Pneumatic tyres,Safety seat,Free tool box and spare parts.
Diesel Engine Forklift Truck OPTION:
As a professional manufacturer of forklift, we also can offer you customized service,
the following items are optional:
Container mast, for example, 2-stage full free mast of 3m, 3-stage full free mast of 4.5m/ 4.8m
side shifter, fork positioner,longer forks, fork extension
For the details of customized configurations and options, please contact with us.
VMAX professional service will be impressed on you.
Diesel Engine Forklift Truck OTHERS :
A: date of delivery:25-35days after received the deposit
B: payment terms:T/T(30% deposit,balance paid before shipment).Or L/C at sight
C: Guaranty period: one year or 2000hours upon receiving goods.
| Model |
|
CPCD50-Cy1 |
CPCD60-Cy1 |
CPCD70-Cy1 |
| Power type |
|
diesel |
diesel |
diesel |
| Rated capacity |
kg |
5000 |
6000 |
7000 |
| Load center |
mm |
600 |
600 |
600 |
| Mast Lifting height |
mm |
3000 |
3000 |
3000 |
| Fork size |
Length*Width*Thickness |
mm |
1220x150x55 |
1220x150x60 |
1220x150x70 |
| Tilting angles |
Front/Rear |
. |
6/12 |
6/12 |
6/12 |
| Min. Turning Radius |
mm |
3250 |
3370 |
3370 |
| Min. intersecting stacking aisle |
mm |
5500 |
5620 |
5620 |
| Min. intersecting aisle |
mm |
2960 |
3040 |
3040 |
| Min. ground clearance |
mm |
200 |
200 |
200 |
| Overhead guard height |
mm |
2450 |
2450 |
2450 |
| Front overhang |
mm |
590 |
590 |
590 |
| Max. driving speeds |
km/h |
26/28 |
26/28 |
26/28 |
| Max. lifting speeds |
mm/s |
450 |
450 |
400 |
| Max. grade ability |
% |
20 |
20 |
20 |
| Length without fork |
mm |
3430 |
3550 |
3550 |
| Overall width |
mm |
2235 |
2235 |
2235 |
| Max. lift |
mm |
4380 |
4380 |
4380 |
| Mast height |
mm |
2500 |
2500 |
2500 |
| Tires |
Front |
mm |
4-8.25-15-14PR |
| Rear |
mm |
2-8.25-15-14PR |
| Wheelbase |
mm |
2250 |
2250 |
2250 |
| Tread |
Front/ Rear |
mm |
1470/1700 |
1470/1700 |
1470/1700 |
| |
Self-possessed |
Kg |
7980 |
8640 |
9340 |
| Battery |
Voltage/Volume |
V/Ah |
24/80 |
24/80 |
24/80 |
| Engine |
Model |
|
CY6102BG |
CY6102BG |
CY6102BG |
| Rated output |
kw/r.p.m |
81/2500 |
81/2500 |
81/2500 |
| Rated torque |
Nm/r.p.m |
353/1700 |
353/1700 |
353/1700 |
| No.of cylinder |
|
6 |
6 |
6 |
| Displacement |
L |
5.785 |
5.785 |
5.785 |
| Fuel tank capacity |
L |
140 |
140 |
140 |
