UV sterilizer robot sterilization disinfection UV light robot

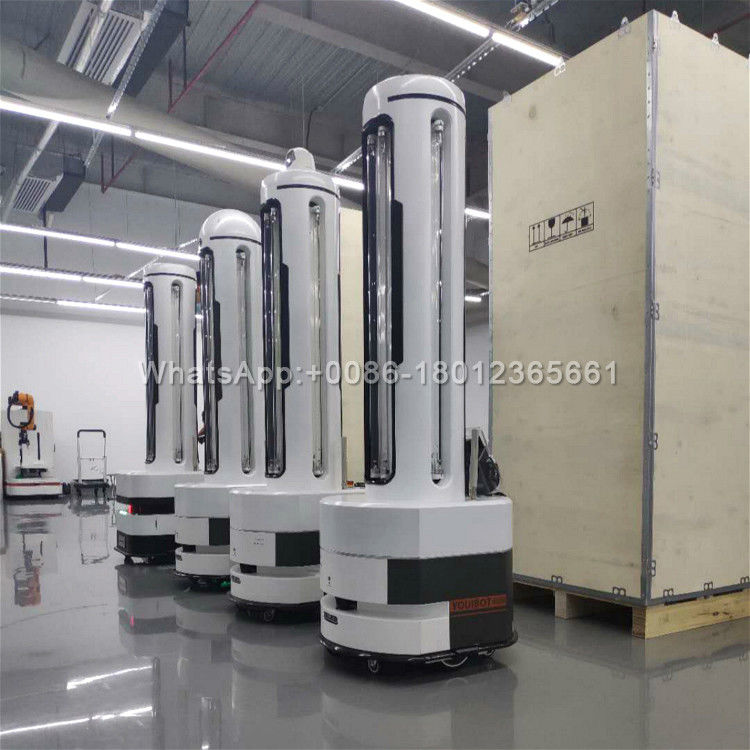

UV sterilizer robot sterilization disinfection UV light robot, using mobile robot as carrier, equipped with ultraviolet anti-virus lamp and human body temperature camera, performs autonomous mobile multi-point anti-virus for environmental surface and air. It takes only 150 minutes to kill 1,000 square meters.
The anti-virus robot is suitable for indoor public places or high-risk environments. It can move autonomously and be killed by no one. It can work in public areas such as shopping malls, offices, and office buildings to reduce the insecurity of manual killing. Data, history is controllable. , Thermal defect recognition and other functions.
- Indoor autonomous moving killing virus by UV light
- Equipped with infrared temperature checking
- Day for temperature monitoring and night for disinfection
- The accumulated UV light intensity is up to 270uv I CM2 , which is the most efficiency disinfection and sterilization function in the industry
- Complete and mature cognitive and positioning navigation capabilities based on SLAM algorithm
- UV killing robot is suitable for mobile regional disinfection in the places with large personnel tlow such as shopping malls, stations, ottices, tactories,etc.
- Disinfection robot is compliance with National standard ( China ) GBT 30030-2013 automatic guided vehicle (AGV)
- UV light achieves GB 19258-2012
Dual Functions Indoor
(1) UV Disinfectant
(2) Infrared temperature Monitor
Optional for Software & Accessories :
- Management & Dispatching system software
Auto Charger :
Corgi : Autonomous Mobile Robot
Corgi is an industrial class laser / QR code navigation light indoor mobile robot, supporting a maximum load of 100kg.
The accuracy of laser repetitive positioning can reach ± 5mm. Corgi's ultra-small size supports channel operation within 600mm and maximizes site utilization; the vehicle body passes the ROSH test, which can be applied to work in class100 level dust-free workshop; it can operate continuously for more than 10 hours, and the automatic charging function can guarantee 24 / 7 continuous production operation and improve operation efficiency.
| Category |
Item |
Parameter |
| Material of body |
Material of body |
Cold rolled steel + plastic |
| Size |
Size |
580x500x1200mm |
| Weight |
Weight (including battery) |
50KG |
| |
Ambient temperature |
5 to 40 degrees |
| |
Ambient humidity |
Relative humidity 5 to 95% (no condensation) |
| |
Running environment |
Indoor use only, no excessive dust, no corrosive gas |
| Environmental conditions |
Protection level |
IP20 |
| |
Cleanliness grade |
Class100 |
| |
Antiskid coefficient of ground |
>0.5 |
| |
Ground requirement |
Horizontal ground for concrete pouring (without water, oil or dust) |
| |
Minimum flatness of ground |
Ff25 (* AC1117 standard) |
| |
Vertical obstacle surmounting ability |
10mm |
| |
Ability to cross gullies |
±20mm |
| Ground conditions |
Climbing ability |
5° |
| |
Path selection |
Secure scanning lidar based on environment mapping independent path selection |
| Navigation |
Navigation system |
Provide large-scale lidar mapping, lidar positioning, lidar path planning, lidar navigation functions, including obstacle avoidance and recovery control. |
| |
Rendering of environmental map |
Scanning with Slam (positioning and mapping ad the same time) |
| |
Navigation mode |
Laser landmark navigation |
| |
|
1 m / S (theoretical maximum speed) |
| Running speed |
Maximum speed |
| Maximum rotational speed |
180% |
| Mobility performance |
Stopping precision |
Position accuracy: ± 1 cm, angle accuracy: + 2° |
| |
Texture of material |
Polyurethane |
| Driving wheel |
Size |
Diameter 150 * 35mm |
| |
Battery |
Industrial grade lithium iron phosphate battery, high stability, metal shell safety protection, earthquake resistance, accidental strong impact damage, no open fire |
| |
Capacity |
0.75kwh |
| |
Running time |
6H |
| Battery |
Charging time |
<2.5H |
| |
Battery life |
Cycle life < 1500 times, keep 80% capacity after 1500 times |
| |
Charging mode |
Auto / manual |
| |
Power output |
12V 5A / 24V 5A |
| |
protection system |
Power protection, temperature protection |
| Category |
Item |
Parameter |
| |
Wireless signal receiver |
Secure encryption, low delay, high bandwidth for image transmission |
| Equipment |
IPC |
Industrial control computing system |
| Guided gyroscope |
Auxiliary inertial navigation system for Complex
Pavement
|
| |
Camera |
Optional / thermograph or visible camera |
| Sterilization efficiency |
Ultraviolet sterilization efficiency and distance |
1. Quantity of glass tube ultraviolet lamp: 6;
2. Ultraviolet radiation direction: 360 ° omnidirectional;
3. Accumulated light intensity: 270uv /cm2;
4. UV power: 180W;
1. Single point disinfection time: 10 minutes;
2. Coverage of moving path: radius 6-10m.
|
| |
Safety lidar |
Fuselage front
Detection distance: 30m
Detection angle: 270 °
|
| Security function |
Emergency stop button |
2 buttons on the left and right sides of the housing |
| |
Collision bars |
Surround robot 360 degrees |
| |
Status indicator lamp |
three colors of status indicators, which located in the robot shell. |
| Operation panel and |
Start button |
1 at the rear of the robot shell |
| interface |
Wireless network |
IEEE 802.11 A/C |
| |
Control mode |
Unattended operation |
| |
Disinfection and sterilization |
UV sterilization |
| |
Remote interaction |
Voice intercom, remote control |
| System |
Intelligent system |
Single machine scheduling system |
| |
Robot scheduling management system, remote assistant patrol intelligent system |
Robot system scheduling, remote control, patrol plan, data query |
| |
Remote control computer |
Lenovo or DELL brand desktop computers |
| |
Switch |
Huawei or the same quality brand |
| Accessories (optional) |
On site wireless base station AP |
Including a set of high-power host, antenna, lightning arrester and power divider to meet the requirements of robot operation in 100m x 100m open area |
Precautions
When using an ultraviolet lamp to sterilize, keep the environment closed
It is forbidden to be present during the anti-virus to avoid injuries caused by direct UV rays on the eyes and skin
If you need to work under ultraviolet rays, you should strengthen personal protection and wear protective glasses
During use, the surface of the UV lamp should be kept clean (can be wiped with alcohol gauze before turning on)
The irradiation surface should be directly exposed to ultraviolet rays, and the exposure time of each area should be greater than 10 minutes
Ventilation is required after killing
Ultraviolet rays can kill a variety of microorganisms, including bacterial propagules, spores, mycobacteria, viruses, fungi, rickettsia and mycoplasma, etc.
Water and air can be disinfected with UV.
