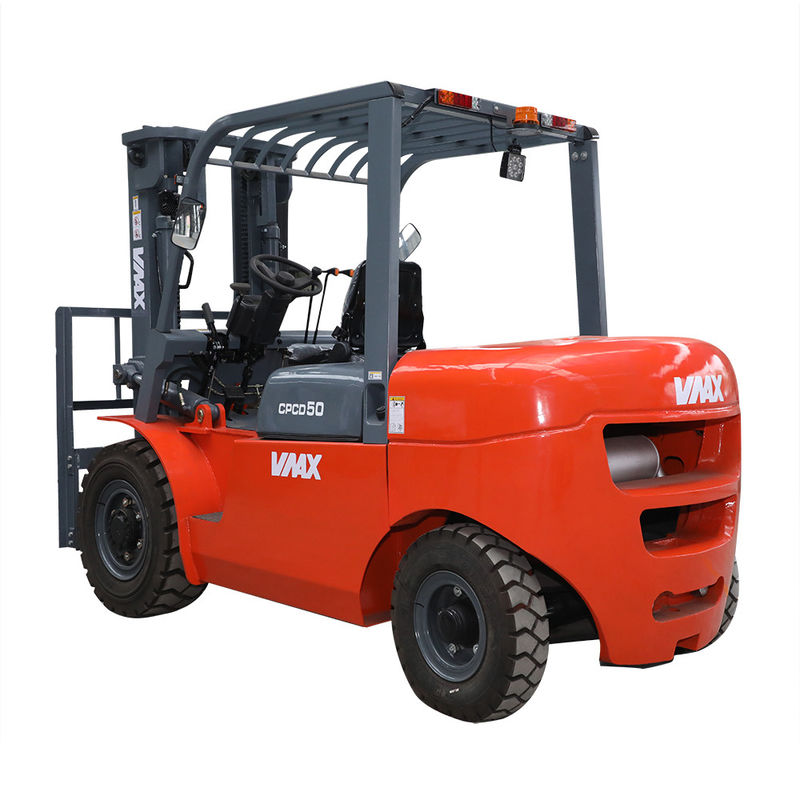

Durable Diesel Engine Forklift Truck 1220mm Fork Length Automatic Transmission
Product Details:
Place of Origin:
CN
Brand Name:
VMAX
Certification:
CE,BV,SGS,ISO9001
Model Number:
CPCD50
Payment & Shipping Terms:
Minimum Order Quantity:
1 unit
Price:
＄13,900.00-＄18,000.00/unit
Packaging Details:
nude package
Delivery Time:
25-30 days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
5,000 units/year
Contact Now
Detailed Product Description
Condition:
New
Power Source:
Diesel Engine
Fork Length:
1220mm
Fork Width:
150mm
Transmission:
Automatic
After-sales Service Provided:
Overseas Third-party Support Available, Engineers Available To Service Machinery Overseas, Online Support, Overseas Service Center Available, Free Spare Parts.
Overall Dimensions:
3110*2245*1480mm
Max. Lifting Height:
6000mm
Certification:
CE, BV,SGS,ISO9001
Color:
Red, Yellow, White, Green Etc
Warranty:
1 Year Or 2000 Hours
Engine:
Xichai4110, Xichai4DX23, Mitsubishi S6S, Isuzu6BG1QC, Commins QSF2.8
Load Center:
500mm
Loading Capacity:
5000kgs
High Light:
warehouse stand up forklift , four wheel drive forklift
toyota forklift 5 ton with China or Japan diesel engine solid tyre optional:
SPECIFICATIONS of VMAX diesel Forklift
Manufacturer's Data and Desigh Characteristics
Specifications
1
Manufacturer
2
Model
Unit
CPCD50S
3
Power type
DIESEL
4
Rated capacity
kg
5000
5
Load center
mm
500
6
Operator type
Size
7
Max. lift height of mast with Load-backrest
mm
4280
8
Max.lift height of fork
mm
3000
9
Height of mast
mm
2330
10
Free lift height(with backrest)
mm
140
11
Height of Load-backrest
mm
1240
12
Distance from seat to overhead guard
mm
1000
13
overhead guard height
mm
2245
14
Length without fork
mm
3110
15
Front overhang
mm
565
16
Rear overhang
mm
553
17
Wheel base
mm
2100
18
The height of traction pin
mm
350
19
Min. ground clearance
mm
160
20
Overall width
mm
1480
21
The distance between forks
mm
1370/300
22
Tread(front /rear)
mm
1180/1190
23
Min. Turning radius(outside)
mm
2740
24
Min. Turning radius(inside)
mm
270
25
Min. Intersecting aisle
mm
3365
26
Mast tilt angle
deg
27
Fork size
mm
1220*150*55
Performance
28
Max.Drive speeds(with/without full load)
km/h
18/19
29
Lifting speeds (with /without full load)
mm/s
400
30
Lowering speeds(with /without full load)
mm/s
350/400
31
Max. tractive force(with /without full load)
KN
20
32
Max.grade ability (with/without full load)
%
18/20
Weight
33
Total weight
kg
6400
34
Weight Distribution full load (front/ rear)
kg
9540/1360
35
Weight Distribution zero load(front / rear)
kg
2630/3770
Wheels and Tyres
36
Quantity of wheels
37
Type of tyres
38
Tires
Front
300-15-18PR
39
Rear
7.00-12-12PR
40
Driving Brake
41
Parking Brake
Control device for driving and transmitting
42
Battery
V/AH
24/2X80
43
Engine (standard)
Model
XICHAI 4110
44
Rated output
kw/rpm
60/2200
45
Rated torque
N.m/rpm
305/1400-1600
46
No.of cylinder
4-110X125
47
Displacement
L
4.752
48
Fuel tank capacity
L
100
49
Number of speeds for transmission
Power pallet transmission/Power shift transmission
MORE PHOTOS FROM OUR FACTORY:
