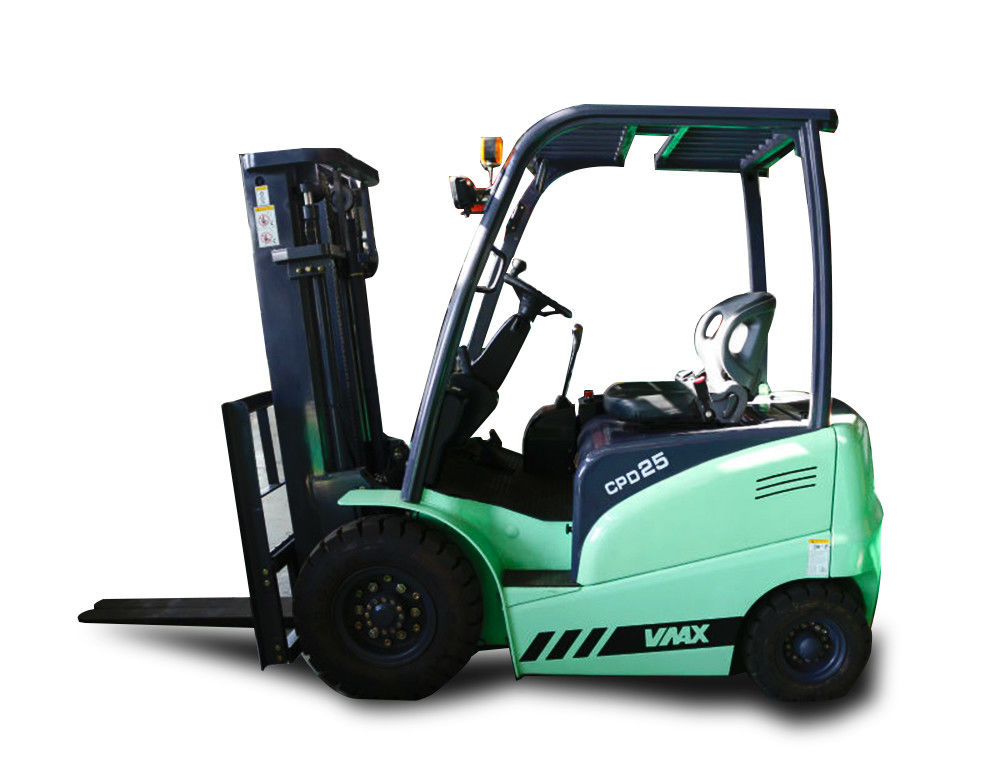

Enlightenment Four Wheel Electric Forklift 2.5 Ton With DC Motor Green
forklift lifting equipment Specifications
1. ISO&CE certificate
2. One year warranty
3. OEM color & logo
4. vmax forklift can meet the various specific requirements
Specification 2-2.5 ton electric forklift lifting equipment
Model
CPD20
CPD25
Load capacity kg
2000
2500
Load center mm
500
500
Power type
Battery Powered(DC/AC)
Max.lifting speeds(with load) mm/s
250
230
Max.Driving speeds(with without load) km/h
12.5/14
12/14
Max.Towing speeds(with load) kN
10
10
Gradeability(with load) %
15
15
Lifting height mm
3000
3000
Free lift mm
60
60
Tilting angles(forward-backward) .
6/12
6/12
Min. turning radius mm
2200
2250
Min. right angle aisle width mm
2050
2100
Min. under-clearance mm
110
110
Dimensions
A Overall length (inincluding fork) mm
3350
3380
B Overall width mm
1160
1160
H Overall height(mast lowered) mm
2130
2130
H2 Overall height(mast extend) mm
4040
4040
H3 Overall height to overhead guard mm
2130
2130
B3 Fork width mm
100
122
H4 Fork thickness mm
40
40
A3 Fork length mm
920(1070)
920(1070)
A1 Fork overhang mm
451
451
A2 Wheel base mm
1550
1550
Tread
Front tread mm
970
970
Rear tread mm
950
950
Tyre
Front tyre
7.00-12
7.00-12
Rear tyre
18×7-8
18×7-8
Total weight kg
3950
4300
Motor
Traction motor
XQ-8
XQ-8
Lifting motor
XQD-10-3S
XQD-10-3S
Battery
Battery type
D-600(700)
D-700
Battery voltage/Capacity V/Ah
48/600(700)
48/700
OTHERS :
A: date of delivery:15-25days after received the deposit
B: payment terms:T/T(30% deposit,balance paid before shipment).Or L/C at sight
C: Guaranty period: one year or 2000hours upon receiving goods.
