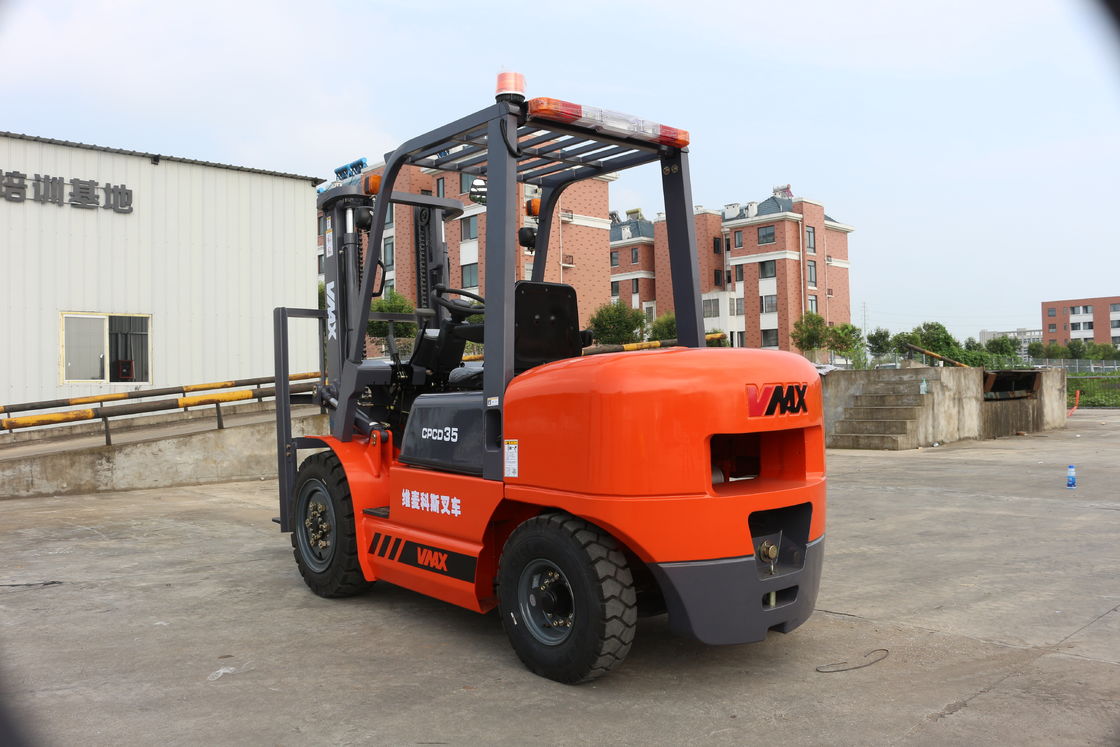

diesel fork lift with container mast 3.5 ton Vmax CPCD35 hydraulic diesel forklift truck Japanese engine
Hot brand FLIFT TRUCK 3.5 ton CPCD35 diesel forklift with automatic transmission FORKLIFT 3.5T,3.5ton Mitsubishi engine forklift soild tyre diesel forklift to South Africa forklift,Supply diesel container forklift truck with 3.5ton forklift,8000bl forklift C240 Isuzu Diesel Engine 3.5Ton Forklift,CE Diesel Forklift 3.5 tons For Sale, Forklift With 4.5m,5500bl forklift C240 Isuzu Diesel Engine 3Ton Forklift,CE Diesel Forklift 2.5 tons For Sale, Forklift With 6m,2.5ton Diesel Powered Forklift With Japanese ISUZU Engine 2500kg diesel forklift,Diesel Forklift 2.5T With adjustable shifter forklift machines China good quality 3.5t 2 Stage Mast Fork Lift With Solid tire Forklift for sale diesel forklift
2.5ton and 3ton battery operated electric pallet truck /electric pallet forklift
Automatic diesel forklift truck CPCD25, hot sale forklift 2.5TON
AS one of the most famous material handling manufactures in China,we specialize in this field for over 10 years, with the strength of diesel forklift , Electric forklift , LPG forklift , reach truck, pullet truck and stacker.
Now VMAX dealers has been wide spread in many countries like Russia, Australia,Turkey, Brazil, Mexico etc. Also We company had obtained the following certificates in this industry with the development of over 10 years:
1. CE certificate
2. ISO 9001:2008 Standard approved
3. BV&SGS Factory Audit Pass Report
4. Alibaba golden supplier for 7 years
Besides, we are always trying to be innovative and have won several patent certificate on forklift in China.
Currently the factory's capacity per year is 5000 sets(including all sorts of forklift) and averagely the leading production time is 20-30 days. While standing to expand our brand, we also gladly accept OEM based model in which you can pick Japan Engine/Curtis Controller/different forklift attachment and any you like.
VMAX do more than just selling product, but also provide material handling solution for customer. We're sure that it can satisfy your demand if needed.
| Specifications |
| 1 | Manufacturer | | VMAX |
| 2 | Model | Unit | CPCD35 |
| 3 | Power type | | DIESEL |
| 4 | Rated capacity | kg | 3500 |
| 5 | Load center | mm | 500 |
| 6 | Operator type | | Drive in seat |
| Size |
| 7 | Max. lift height of mast with Load-backrest | mm | 4262 |
| 8 | Max.lift height of fork | mm | 3000 |
| 9 | Height of mast | mm | 2180 |
| 10 | Free lift height(with backrest) | mm | 170 |
| 11 | Height of Load-backrest | mm | 1235 |
| 12 | Distance from seat to overhead guard | | mm | 1000 |
| 13 | overhead guard height | | mm | 2090 |
| 14 | Length without fork | mm | 2693 |
| 15 | Front overhang | mm | 498 |
| 16 | Rear overhang | mm | 495 |
| 17 | Wheel base | mm | 1700 |
| 18 | The height of traction pin | mm | 310 |
| 19 | Min. ground clearance | mm | 135 |
| 20 | Overall width | mm | 1225 |
| 21 | The distance between forks | | mm | 1060/250 |
| 22 | Tread(front /rear) | | mm | 1000/970 |
| 23 | Min. Turning radius(outside) | mm | 2420 |
| 24 | Min. Turning radius(inside) | mm | 200 |
| 25 | Min. Intersecting aisle | | mm | 2400 |
| 26 | Mast tilt angle | deg | 6°/12° |
| 27 | Fork size | mm | 1070*125*50 |
| Performance |
| 28 |
Speeds | Max.Drive speeds(with/without full load) | km/h | 19/19 |
| 29 | Lifting speeds (with /without full load) | mm/s | 330/370 |
| 30 | Lowering speeds(with /without full load) | mm/s | 350/400 |
| 31 | Max. tractive force(with /without full load) | KN | 20/16.3 |
| 32 | Max.grade ability (with/without full load) | % | 15/20,16.5/20 |
| Weight |
| 33 | Total weight | kg | 4700 |
| 34 | Weight Distribution full load (front/ rear) | | kg | 7380/820 |
| 35 | Weight Distribution zero load(front / rear) | | kg | 1880/2820 |
| Wheels and Tyres |
| 36 | Quantity of wheels | | | 2 X /2 |
| 37 | Type of tyres | | | Penumatic tyres |
| 38 | Tires | Front | | 28x9-15-12PR |
| 39 | Rear | | 6.50-10-10PR |
| 40 | Driving Brake | | Hydraumatic Pedal |
| 41 | Parking Brake | | Mechanical manual |
| Control device for driving and transmitting |
| 42 | Battery | V/AH | 12/80 |
| 43 | Engine (standard) | Model | | XINCHAI 495 |
| 44 | Rated output | kw/rpm | 42/2650 |
| 45 | Rated torque | N.m/rpm | 174/1800-1900 |
| 46 | No.of cylinder | | 4-95X105 |
| 47 | Displacement | L | 2.98 |
| 48 | Fuel tank capacity | L | 60 |
| 49 | Number of speeds for transmission | | Power pallet transmission/Power shift transmission |
