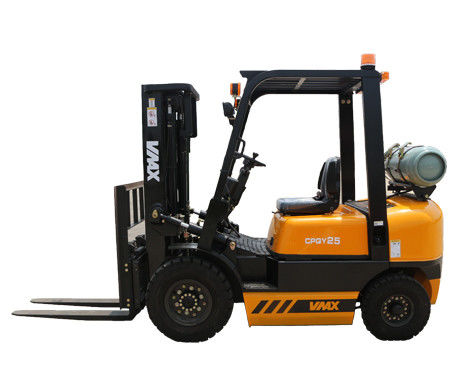

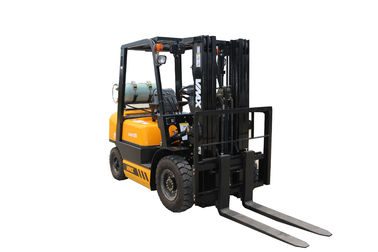

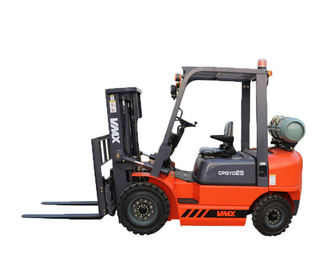

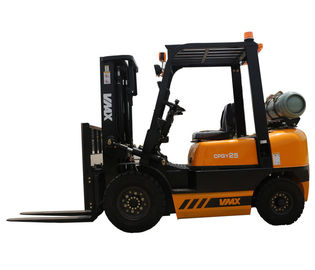

Four Wheel Counterbalance Gas Forklift Truck With Side Shifter Customized
Gas Forklift Truck CPQYD25: Load capacity 2500kg,hydraulic transmission,3m 2 stage duplex mast,
China gasoline engine GQ4Y,1070mm fork, Electronic gear transmission, key switch,
Pneumatic tyres,Safety seat,Free tool box and spare parts.
Gas Forklift Truck Main Specifications:
| Model |
unit |
CPQD20/CPQY20 |
CPQD25/CPQY25 |
CPQD30/CPQY30 |
CPQD35/CPQY35 |
| Rated capacity |
kg |
2000 |
2500 |
3000 |
3500 |
| Load capacity |
mm |
500 |
| Power type |
|
Gasoline/LPG/CNG Forklift |
| Gearbox change speed type |
|
Hydraulic/Mechanical |
| Grade ability |
% |
21/20 |
27/20 |
18/20 |
23/20 |
20/20 |
20/20 |
|
| Lifting height |
mm |
3000 |
| Free lift |
mm |
140 |
140 |
145 |
145 |
| Tilting angles |
|
6/12 |
| Min.turning radius |
mm |
2170 |
2240 |
2460 |
2540 |
| Min.under-clearance |
mm |
110 |
110 |
135 |
135 |
| Wheel base |
mm |
1650 |
1650 |
1700 |
1700 |
| Tread |
Front |
mm |
970 |
970 |
1000 |
1000 |
| Rear |
mm |
970 |
970 |
970 |
970 |
|
Dimension
|
Overall length |
mm |
2502 |
2576 |
2682 |
2775 |
| Overall width |
mm |
1170 |
1170 |
1225 |
1225 |
| Overall height |
mm |
2070 |
2070 |
2090 |
2090 |
| Travel speed |
With load |
Km/h |
17 |
17 |
18 |
18 |
| Without load |
19 |
19 |
19 |
19 |
| Lifting speed |
With load |
Mm/s |
470 |
470 |
430 |
410 |
| Without load |
600 |
600 |
500 |
450 |
| Tire type |
|
Pneumatic |
| Tyre |
Front tyre |
|
7-12-12PR |
7-12-12PR |
28*9-15-12PR |
28*9-15-12PR |
| Rear tyre |
|
6-9-10PR |
6-9-10PR |
6.5-10-10PR |
6.5-10-10PR |
| Total weight |
kg |
3550 |
3880 |
4380 |
4750 |
|
Engine
|
Engine model |
|
Chinese GQ-4Y |
| Rated power |
kw |
34 |
| Max. torque |
nm |
142 |
| No of cylinder |
|
4 |
| Engine fuel tank capacity |
L |
60 |
OPTION:
As a professional manufacturer of forklift, we also can offer you customized service,
the following items are optional:
Container mast, for example, 2-stage full free mast of 3m, 3-stage full free mast of 4.5m/ 4.8m
side shifter, fork positioner,longer forks, fork extension
For the details of customized configurations and options, please contact with us.
VMAX professional service will be impressed on you.
