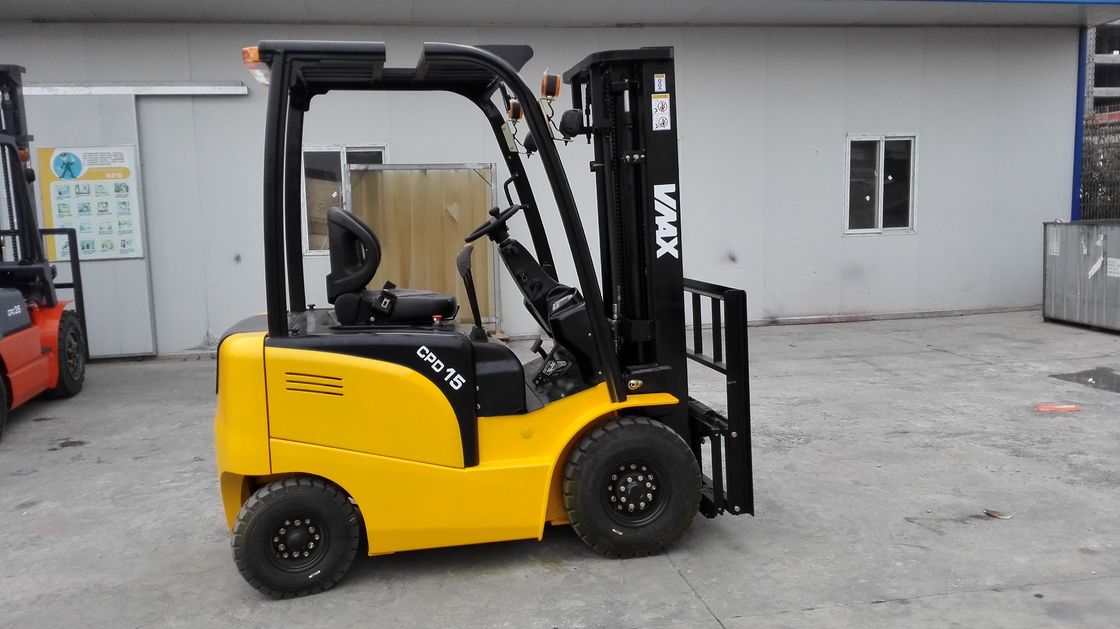

electric forklift 1.5 ton small capacity full AC warehouse machine battery:
| Main Information |
| 1.1 |
Brand |
VMAX |
| 1.2 |
Model |
CPD15 |
| 1.4 |
Operation type |
Drive in seat |
| 1.5 |
Load capacity |
kg |
1500 |
| 1.6 |
Load center |
mm |
500 |
| 2.1 |
Weight with battery |
kg |
3120 |
| Tire,chassis |
|
|
|
| 3.1 |
Tire Type,Driving wheel/Load wheel |
|
Pneumatic tire |
| 3.2 |
Number of wheels X=driving wheel(front/behind) |
|
2X/2 |
| 3.3 |
Tire size (front/behind) |
|
6.50-10-12PR/5.00-8-8PR |
| 3.4 |
Service brake |
|
Hydraumatic pedal |
| 3.5 |
Parking service |
|
Mechanical manual |
| Size |
| 4.1 |
Mast tilt,Forward/backward |
α/β(°) |
6/12 |
| 4.2 |
Mast height after mast fall |
mm |
1995 |
| 4.3 |
Fork lift max height |
mm |
4025 |
| 4.4 |
Free lift height |
mm |
140 |
| 4.5 |
Standard Mast height |
mm |
3000 |
| 4.6 |
Overhead guard height |
mm |
2100 |
| 4.7 |
Overall length |
mm |
2035 |
| 4.8 |
Fork overhang |
mm |
400 |
| 4.9 |
From the rear |
mm |
335 |
| 4.10 |
Wheelbase |
mm |
1360 |
| 4.11 |
Minimum distance between the ground |
mm |
110 |
| 4.12 |
Tread (front/behind) |
mm |
912/920 |
| 4.13 |
Vehicle width |
mm |
1090 |
| 4.14 |
Fork size |
mm |
1070x122x45 |
| 4.15 |
Channel width, |
mm |
3797 |
| 4.16 |
Turning radius |
mm |
1997 |
| Performance |
| 5.1 |
Walking speed,loaded/withoutload |
km/h |
13/15 |
| 5.2 |
lifting speed,loaded/load |
m/s |
240/450 |
| 5.3 |
Dropping speed loaded/without load |
m/s |
450/420 |
| 5.4 |
Maximum traction,loaded |
N |
15000 |
| 5.5 |
Max grade ability,loaded/without load |
% |
12/15 |
| Drive |
| 6.1 |
Drive motor power |
kw |
8 |
| 6.2 |
Drive motor power |
kw |
7.5 |
| 6.4 |
Level voltage/Capacitance |
V/Ah |
48/400 |
| Others |
| 7.1 |
Drive System |
DC/AC |
| 7.2 |
Electrical control system |
Curtis from America |
Q: Are you trading company or manufacturer ?
A: VMAX was founded in 2010, is a professional production and sales of forklift manufacturer.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-45 days if the goods are not in stock, it is according to quantity and model.
Q: Do you provide samples ?
A: Yes, VMAX accept the sample order.
Q: What is your terms of payment ?
A: T/T and L/C is accepted.
