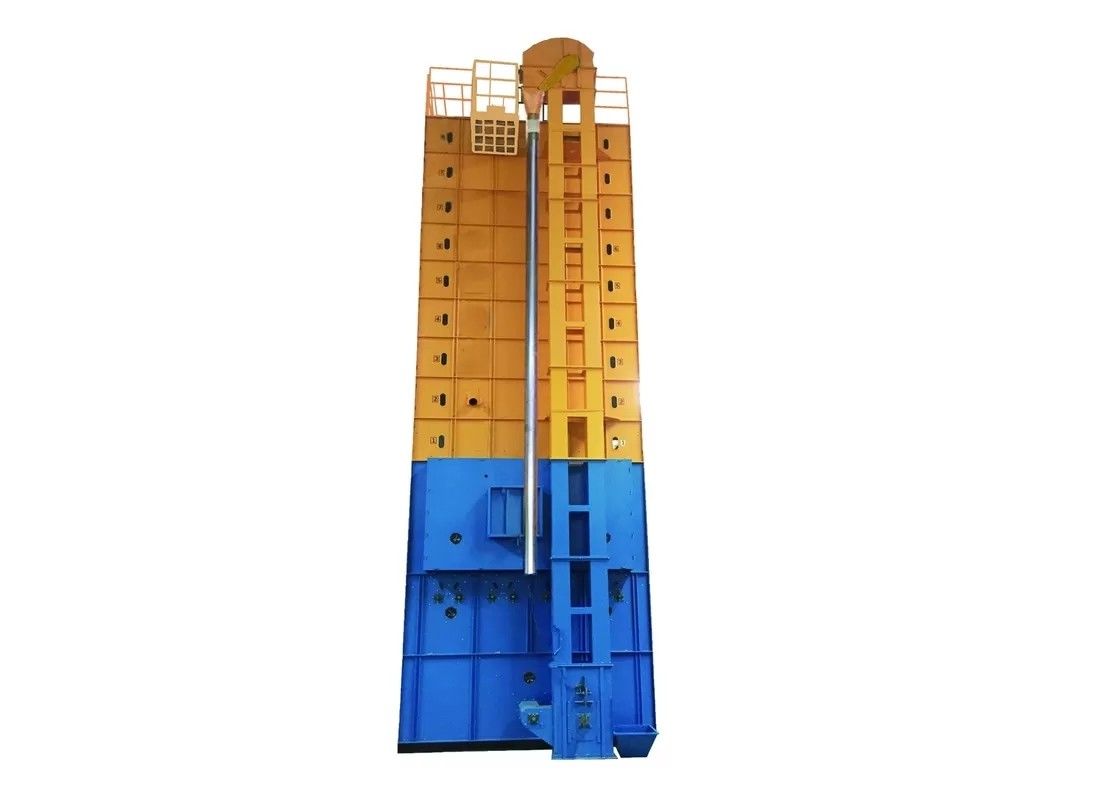

20 Tons Capacity Double Centrifugal Fan Grain Dryer Machine Wheat drying machine 5HPX-20
1)Full time processing ability,get rid of bad weathers' interruption,like raining,storm,snowing and etc
2)Massive Drying Capacity,one batch could reach 20 tons capacity,if connected with 5 sets,100 tons per day is available
3)Low-cost running consumption,Biomass material/coal/gas/diesel are all available
4)Flexible installation method,one furnace could connect 3 to 4 dryers,to save the land space
5)High processing efficiency,mo blind drying section,all the material would keep to the same mositure rate,make them the same quality
6)Slow and careful auger,tiny broken and waste material during the circulation
7)Best return on Investment ratio,running one to two month,could get back the investment on the machine
TECHNICAL PARAMETERS
| Product Description |
| Model |
5HPX-15 |
5HPX-20 |
5HPX-30 |
5HPX-30B |
5HPX-35 |
| Loading capacity(kg) |
Paddy |
3,000~15,000 |
3,000~20,000 |
4,000~30,000 |
4,000~30,000 |
5,000~35,000 |
| |
Corn |
3,800~18,500 |
3,800~24,600 |
5,000~36,400 |
5,000~36,400 |
6,000~42,000 |
| Dimension L*W*H (mm) |
4321*2583*10000 |
4600*3263*10500 |
4600*3260*12700 |
4600*3570*12700 |
5712*5000*12400 |
| Net Weight |
3,000 |
4,200 |
5,500 |
6,500 |
8,000 |
| Heat Source |
Biomass Furnace/Gas Burner/Diesel Burner |
| Power Consumption (kw) |
9.95 |
10.6 |
15.45 |
21.7 |
19.7 |
| Input Voltage |
3 Phase 220V/380V,50Hz |
| Husk Furnace |
Type |
Indirect |
| |
Ignition |
Manual |
| Function |
Loading |
50~60(approx) |
50~60(approx) |
60~70(approx) |
60~70(approx) |
60~70(approx) |
| |
Discharge |
50~60(approx) |
50~60(approx) |
60~70(approx) |
60~70(approx) |
60~70(approx) |
| |
Drying Rate |
0.5-1.2 %/h |
0.5-1.2 %/h |
0.6-1.2 %/h |
0.6-1.4 %/h |
0.5-1.2 %/h |
| Standard Devices |
Online moisture meter, Conveyor ,Discharge system, Buffer system, Elevator ,Suction fan, Temperature sensor |
| Safety Devices |
Overload device, Temperature control device, Control fuse, Leakage protection device, Air pressure switch |
Furnace Burner Options
| Furnace Type |
Yes/No |
| Diesel |
Yes |
| Gas |
Yes |
| Coal |
Yes |
| Biomass Material |
Yes(Husk/Wood/Straw/Etc) |
FEATURES:
1. Professional use grain dryers which are designed especially for small pack and quality rice. Bring you the highest profit and income.
2. Spreading device and rotary valves ensure seeds and grains to circulate evenly and make even drying possible
3. Use giant screw conveyor, PVC steel bucket,Galvanized steel sheet for durability use.
4. Sufficient Inspection zone and emergency unloading valve to make sure no stuck for the grains in the dryer
Drying Unit Diagram
What We Can Offer
1)Whole turnkey project solution
included Pre-cleaning machine,elevator,input&outlet pipe,furnace and dryer
2)Plant designition service
supply you all the possibly area required,the instllation diagram for consideration
3)Instllation and commisioning service
professional engineer woud guide you for the assembling and commisioning the machine
4)Full time online service
24 hours online technique service,ensure to tackle the problem immediately
5)Enormous spare parts to support
easy broken spares and wearing parts would be send timely,no worry for drying season
Applicantion:
