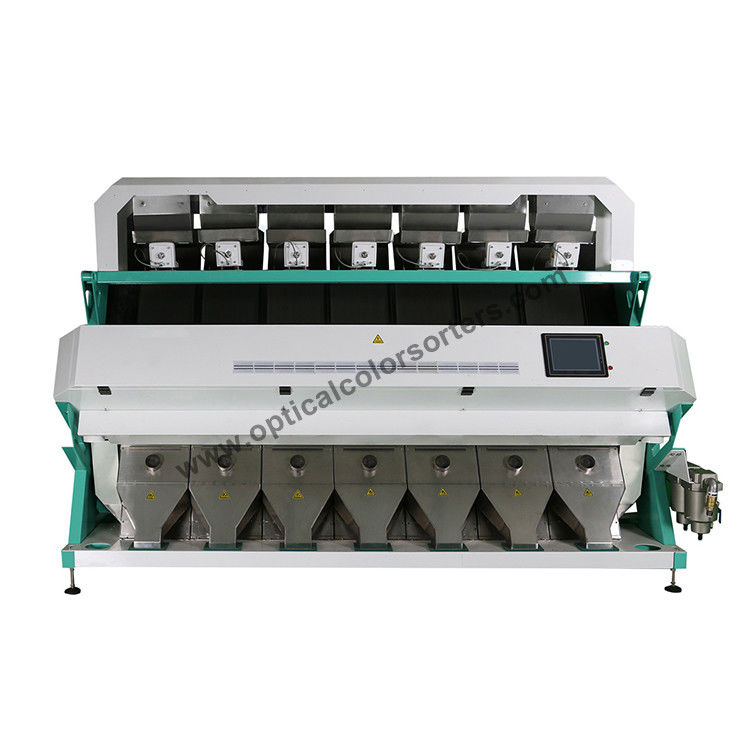

Channels CCD Color Sorter Machine
Product Description
Our channels CCD color sorter machine can be used for many material sorting Such as: Rice, Wheat, Corn, Soybean, Peanut, Sunflower seeds, Waltnut, Almond, Quinoa, Salt, Medlar, Pistachio, Kidney bean, Chili, Red bean, Small shrimp, Peeled garlic, Lotus seed, Sesame, Pinenut kernel, Watermelon seeds, Black bean, Green bean, Mung bean, Millet, Sorghum, Buckwheat, Oats, Barley, Cardamon, Coffee bean, Pea, Lentil, Fava bean, Cashew nut, Raisin, Jujube, Evaporate vegetables, Cotton seeds, Dehydrated garlic, Sugar, Black tea, Green tea, White tea, Yellow tea, Grain, Onion, Fish, Potato, Blueberry, Tomato, Nut, Seeds, Bean, Mango, Cereal, Melon seeds, Chickpea, Olives, others.
Technical Parameters
| Model |
WYT64-6MX |
WYT128-6MX |
WYT256-6IIX |
| Number of channels |
64 |
128 |
256 |
| Flow rate (kg / hour) |
10-80 |
100-400 |
200-800 |
| Precision(%) |
N99% |
N99. 8% |
N99.8% |
| Take out ratio |
>1:2 |
>8:1 |
>8:1 |
| total weight(kg) |
320 |
960 |
1260 |
| Dimensions (Length • width • height) |
930X1500X1420 |
1270X1600X1810 |
1970X1600X1810 |
| Power input |
220V/50Hz |
220V/50Hz |
220V/50Hz |
| Maximum power |
0.8 |
3.2 |
3.2 |
| Air pressure (Mpa) |
0. 6-0.8 |
0. 6-0. 8 |
0. 6-0.8 |
| Gas consumption (LAnin) |
200-1000 |
1S00-2500 |
1500-2500 |
| Matching air compressor motor power (kiowatt) |
2.2 |
22 |
22 |
| Gas consumption (LAnin) |
100 |
100 |
100 |
Remarks: All of the above parameters are based on the general requirements. The specific indicators vaiy slightly according to various materials and customer requirements.
Examples of Sorting
Function & Features
1. According to the characteristics of rice, the high Quality dedicated industrial camera ensures that every rice can be perfectly imaged on the image sensor.
- The slide uses a special anodizing process to make the surface of the slide smoother, more durable,longer lasting and more stable.
- Fully enclosed mechanical structure, more stable and reliable. Introduce a heat sink to increase the life and stability of the machine. The use of cutting-edge electronic systems guarantees stable efficiency.
- The advanced optical system design effectively identifies tiny particles such as lesions, shallow water yellow and black head
- Accurate automatic calibration system and user-friendly human-machine interface make the color sorter more convenient to operate.
Products Show
