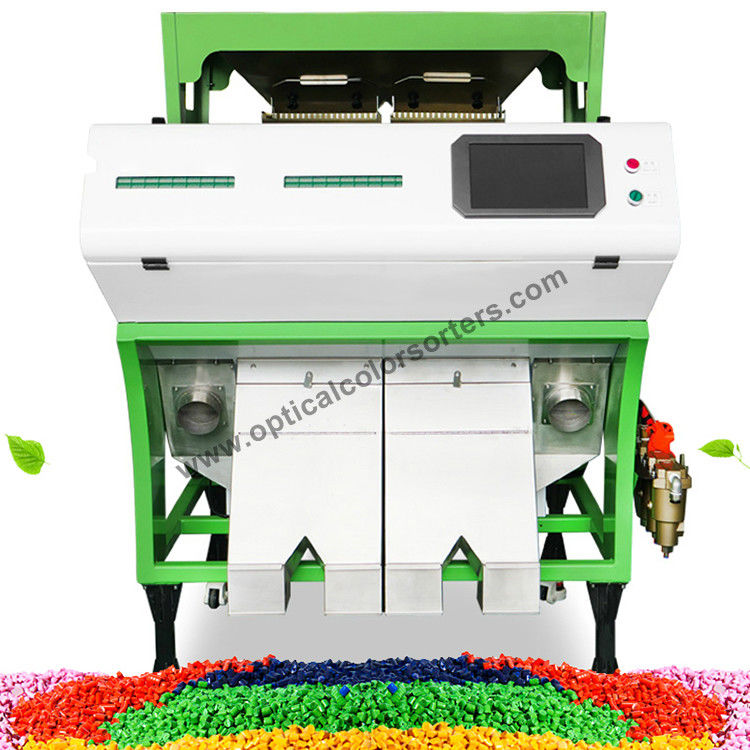

High Efficiency Optical Sorting Machine For Plastic Recycling Industry
Product Description
Manual sorting is a simple process that needs very little technology, but it leaves much room for improvement. Manual sorting is a very labor intensive, costly, and inefficient method for sorting plastics. One problem with efficiency is that the labor force involved in manual sorting has a high turnover rate.
Wuxi Bird Machinery Technology Co., Ltd has been developed plastic optical sorting machine in order to improve efficiency and quality, and reduce the cost of plastics recycling.
Technical Parameters
| Model |
6SXZ-68L |
6SXZ-68L |
6SXZ-136L |
6SXZ-272L |
| Output |
<600kg/h |
<1000kg/h |
<1200kg/h |
<2400kg/h |
| Carry over Rate(Bad:Good) |
12.5:1 |
12.5:1 |
12.5:1 |
12.5:1 |
| Sorting Accuracy |
≥99.9% |
≥99.9% |
≥99.9% |
≥99.9% |
| Voltage(V/Hz) |
220V 50HZ |
220V 50HZ |
220V 50HZ |
220V 50HZ |
| Power Supply(Kw) |
0.7-1.0 |
1.5-2.0 |
1.5-1.8 |
2.5-3.0 |
| Pressure(Mpa) |
0.4-0.6 |
0.4-0.6 |
0.5-0.7 |
0.6-0.8 |
| Air Consumption(L/min) |
<500 |
<600 |
<1000 |
<2000 |
| Weight |
310kg |
550kg |
490kg |
920kg |
| Dimension |
2051*1240*1762mm |
3200*2020*810mm |
2037*1540*1550mm |
1922*2430*1349mm |
Examples of Sorting
Product Advantages
Products Show
