High Lift Portable Gasoline Forklift In Warehouse , Compact Forklift Trucks

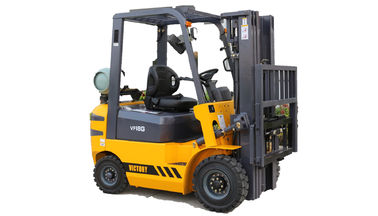

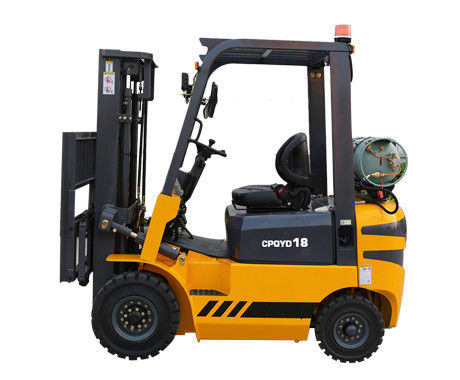

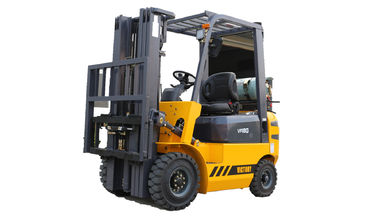

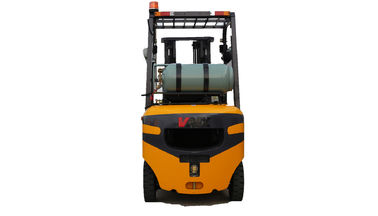

VMAX FORKLIFT LPG FORKLIFT CPQYD18
Anhui VMAX Machinery Manufacturing Co., Ltd. Is located in Lu'an, Anhui, China. We are one of the biggest forklift manufacturers in China, which has 67, 000 square meter area workshop and outputs 5, 000 sets forklifts annually. We have different kinds of large blazing cutter, plasma cutter, large punch machine, CNC machining center, large painting machine and other high-class machines and testing equipment, which ensure perfect quality of each forklift from VMAX. Now our products include counterbalance diesel for klift, battery forklift, gas/LPG forklift, pallet truck, stacker, reach truck, mast mobile container crane, etc. With firstclass technology and stable quality, VMAX products won the appreciation form majority of overseas customers. Our products have been exported to Europe, America, the Middle East, Southeast Asia, Africa and many other countries and regions. More than 400 VMAX members offer you products with top-class service. We sincerely welcome you to visit.
| SPECIFICATIONS of 2-3Ton LPG Forklift |
|
SPECIFICATIONS OF 1.5-4.0 TON LPG FORKLIFT |
| |
| Main Information |
| 1 |
Manufacturer |
VMAX |
| 2 |
Model |
Unit |
CPQD18 |
CPQD20 |
CPQYD20 |
CPQD25 |
CPQYD25 |
CPQD30 |
CPQYD30 |
CPQYD35 |
CPQYD40 |
| 3 |
Power type |
|
Gasoline/Liquefied gas/
Natural gas
|
| 4 |
Rated capacity |
kg |
1800 |
2000 |
2500 |
3000 |
3500 |
4000 |
| 5 |
Load center |
mm |
500 |
| 6 |
Operator type |
|
Drive in seat |
| Size |
|
|
| 7 |
Max. lift height
of mast with
Load-backrest
|
mm |
4030 |
4030 |
4030 |
4262 |
4262 |
4275 |
| 8 |
Max.lift
height of fork
(standard)
|
mm |
3000 |
3000 |
3000 |
3000 |
3000 |
3000 |
| 9 |
Height of mast
(standard)
|
mm |
1985 |
2000 |
2000 |
2065 |
2180 |
2150 |
| 10 |
Free lift height
(standard)
|
mm |
125 |
170 |
170 |
160 |
170 |
150 |
| 11 |
Height of
Load-backrest
|
mm |
960 |
995 |
995 |
1227 |
1222 |
1240 |
| 12 |
Distance from seat to overhead guard |
|
mm |
1015 |
1000 |
|
|
| 13 |
Front wheel
overhead
|
mm |
2070 |
2070 |
2070 |
2090 |
2090 |
2105 |
| 14 |
Length with fork |
mm |
2230 |
2502 |
2576 |
2682 |
2693 |
2895 |
| 15 |
Front overhang |
mm |
420 |
477 |
477 |
479 |
498 |
500 |
| 16 |
Rear overhang |
mm |
424 |
420 |
494 |
495 |
495 |
495 |
| 17 |
Wheel base |
mm |
1400 |
1600 |
1600 |
1700 |
1700 |
1900 |
| 18 |
The height of
traction pin
|
mm |
230 |
290 |
290 |
310 |
310 |
330 |
| 19 |
Min. ground
clearance
|
mm |
100 |
110 |
110 |
135 |
135 |
130 |
| 20 |
Overall width |
mm |
1070 |
1170 |
1170 |
1225 |
1225 |
1410 |
| 21 |
The distance between forks |
|
mm |
910/125 |
1024/200 |
1024/200 |
1060/250 |
1060/250 |
1290/260 |
| 22 |
Tread(front /rear) |
|
mm |
890/920 |
970/970 |
970/970 |
1000/970 |
1000/970 |
1160/1065 |
| 23 |
Min. Turning radius(outside) |
mm |
2060 |
2170 |
2240 |
2400 |
2420 |
2700 |
| 24 |
Min. Turning radius(inside) |
mm |
130 |
160 |
160 |
200 |
200 |
230 |
| 25 |
Min. Intersecting aisle |
|
mm |
1865 |
2200 |
2280 |
2380 |
2400 |
2685 |
| 26 |
Mast tilt angle |
deg |
6° / 12° |
| 27 |
Fork size |
mm |
920X100X35 |
1070X
100X40
|
1070X
100X45
|
1070X
125X45
|
1070X
125X50
|
1070
X130X50
|
| Performance |
| 28 |
Speeds |
Max.Drive speeds
(with/
without
load)
|
km/h |
13.5/14.5 |
17/19 |
17/19 |
18/19 |
19/19 |
18/19 |
| 29 |
Lifting speeds
(with load)
|
mm/s |
460/500 |
530/550 |
530/550 |
440/480 |
330/370 |
350/380 |
| 30 |
Lowering speeds
(with /
without full load)
|
mm/s |
460/550 |
450/550 |
450/550 |
450/550 |
350/400 |
350/400 |
| 31 |
Max. tractive force |
|
KN |
20/15.2 |
20/15 |
21/15 |
20/15.2 |
21/15.2 |
20/16 |
20/16 |
20/16.3 |
20/18 |
| 32 |
Max.grade ability (with/without
full load)
|
% |
18/20 |
21/20 |
27/20 |
18/20 |
23/20 |
20/20 |
20/20 |
16.5/20 |
15/18 |
| Weight |
|
|
| 33 |
Total weight |
kg |
2680 |
3320 |
3680 |
4270 |
4700 |
4270 |
| 34 |
Weight Distribution full load (front/ rear) |
|
kg |
3640/520 |
4788/532 |
5562/618 |
6543/727 |
7380/820 |
8380/930 |
| 35 |
Weight Distribution zero load(front / rear) |
|
kg |
1170/1490 |
1328/1992 |
1420/2208 |
1708/2562 |
1880/2820 |
2120/3190 |
| Wheels and Tyres |
|
|
| 36 |
Quantity of wheels |
|
|
2X / 2 |
| 37 |
Type of tyres |
|
|
Penumatic tires |
| 38 |
Tires |
Front |
|
6.50-10-10PR |
7.00-12-12PR |
7.00-12-12PR |
28X9-15-12PR |
28X9-15-12PR |
250-15-16PR |
| 39 |
Rear |
|
5.00-8-10PR |
6.00-9-10PR |
6.00-9-10PR |
6.00-10-10PR |
6.00-10-10PR |
6.00-10-10PR |
| 40 |
Driving Brake |
|
|
hydraumatic pedal |
| 41 |
Parking Brake |
|
|
Mechanical manual |
| Control device for driving and transmitting |
|
|
| 42 |
Battery |
V/AH |
12/80 |
| 43 |
Engine (standard) |
Model |
|
GQ-4Y |
| 44 |
Rated output |
kw/rpm |
37/2800 |
57/2800 |
| 45 |
Rated torque |
N.m/rpm |
154/1800 |
198/1800 |
| 46 |
No.of cylinder |
|
4-91X86 |
| 47 |
Displacement |
L |
2.237 |
| 48 |
Fuel tank
capacity
|
L |
60 |
| 49 |
Number of
speeds for
transmission
|
1-1 Power shift transmission / 2-2 Hand shift transmission |
