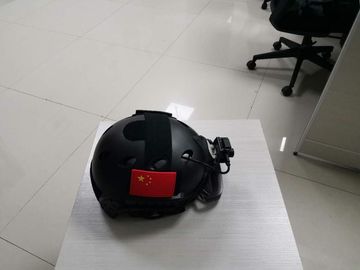

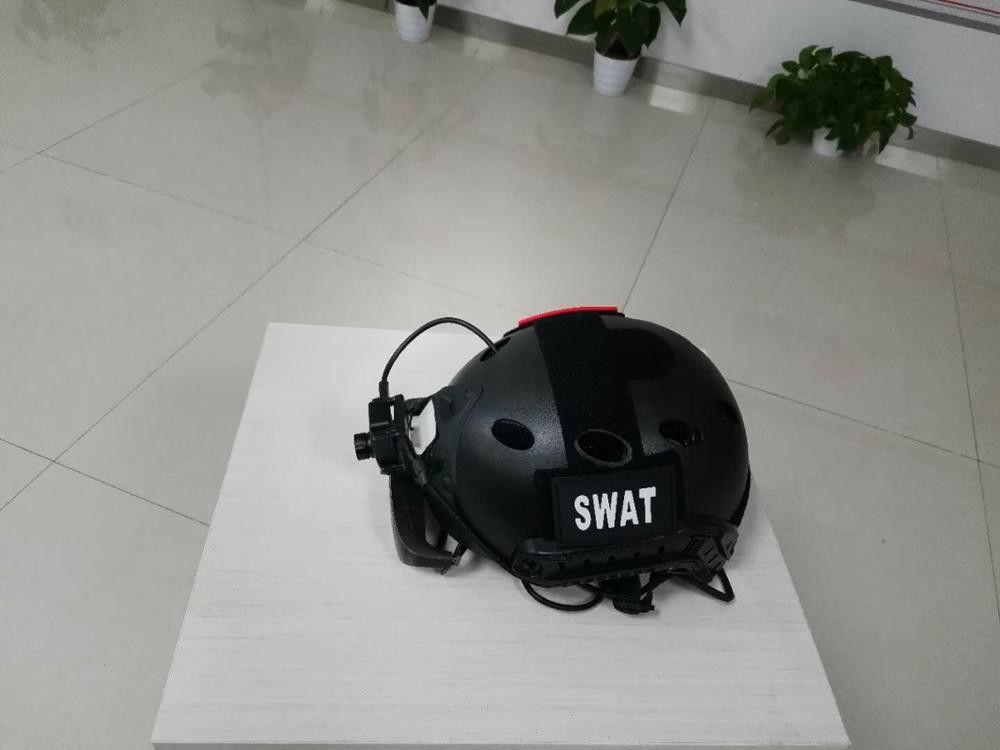

Infrared Temperature Measuring Helmet
Product introduction:
launched a virtual-real-integrated intelligent interactive helmet (Warrior) combining
optical waveguide display technology and digital twin technology, equipped with
high-precision infrared thermometer, thin and light AR glasses, and applied virtual-real
fusion technology to realize real-time perception and decision-making of virtual and real
environments. Situation handling brings convenience and provides new technical
means for workshop inspections, production control, and smart city operations. At the
same time, it has the function of self-adaptive calibration of ambient temperature and
humidity, which can realize non-contact crowd temperature measurement, and the
temperature measurement accuracy can reach ± 0.3 ℃. If abnormal body temperature
is found, a warning will be automatically reminded on the glasses screen. Provide safe
epidemic inspection programs for public places such as highway junctions, stations,
airports, schools, etc.
Features:
(1) Non-contact infrared temperature measurement, reducing the probability of
transmission of infection by close contact;
(2) With virtual-real interaction function, real-time perception and decision-making of
virtual and real environment;
(3)With temperature abnormal alarm prompt function.
Technical Parameters:
(1) Test method: non-contact; test distance 3-5m;
(2) Resolution: 384x288;
(3) Pixel pitch: 17μm;
(4) Working temperature: -10 ℃ ~ + 50 ℃;
(5) Temperature measurement range: -20 ℃ ~ + 120 ℃ (can be extended to 400 ℃);
(6) Temperature measurement accuracy: ± 0.3 ℃;
(7) Display: 2 * LCOS, 1280 * 720 (16: 9) Backlight brightness: greater than 10000cd /
m 2;
(8) Camera 2 million pixels, FOV 72 °;
(9) Qualcomm Xiaolong 820, MSM8996;
(10) Type C full interface, support USB3.0 OTG, support Q3 fast charge;
(11) Product size: 300mm * 200mm * 25mm; product quality: 2kg;
(12) Charging time: 2h; product life: 8 hours.
Warranty and after sales:
(1) Within one year from the date of purchase of our products, if there is a performance
failure that is not artificially damaged, our company will provide a free warranty;
(2) During the warranty period, any failure caused by the quality of the product itself,
please return it to our company for repair;
(3) Failures or damage caused by man-made or natural disasters during the free
maintenance period will require maintenance costs;
(4) Maintenance services outside the free maintenance period are subject to
maintenance costs.
The following conditions are not covered by the warranty:
(1) Damage caused by abnormal operation and human or natural disasters;
(2) Damage caused by disassembling and replacing any part of the product (such as
wiring, parts) by yourself;
(3) Failures caused by non-our designated professional and technical personnel to
guide the installation;
(4) Machines that fail due to unauthorized modification or addition of other functions will
not be accepted
| Intelligent interactive helmet |
| Number |
Name |
Specifications |
Quantity |
Note |
| 1 |
Tactical helmet |
/ |
1 |
|
| 2 |
AR glasses |
Split binocular,2*LCOS,1280*720 shows;Android 7.0;IP54 protection level;million pixels |
1 |
|
| 3 |
Infrared thermal imager |
The accuracy of temperature measurement is ±0.5℃;Pixel spacing 17 m;Operating temperature: -10℃~±50℃ |
1 |
|
| 4 |
Cable |
/ |
1 |
|
| 5 |
|
|
|
|
Basic information:
1. We will try our best to support your business and work together
2. If the purchase and application of products beyond the standard warranty requirements, welcome to call the after-sales support consultation, in order to understand all kinds of warranty upgrades, warranty extension of the gold service.
Product warranty policy:
1. When the user buys the product, he/she shall carry a warranty card with him/her,
which shall be filled in and properly kept by the user as the warranty certificate.
2. From the date of purchase, quality problems will occur in normal use within one year.
3. The following are not covered by the warranty:
A The warranty card does not have the signature or seal of the sales unit;
B Damage caused by human or force majeure factors;
C Normal wear and tear of the machine;
D Consumable materials.
4. The way of warranty is to send the repair service, users need to send the product to
the intelligent after-sales service center for repair.
5. If the fault is caused by human factors, beyond the warranty period or force majeure,
we will perform the paid service and collect the appropriate service charge
