High Intelligent CCD Black Tea Sorting Machine Tea Color Sorter
Product Description
High Intelligent CCD Black Tea Sorting Machine Tea Color Sorter is a High-Tech optoelectronicmachinery and equipment, which is based on the color difference between tea stalk, yellow leaf and the accepted, using high resolution Full-Color CCD cameras to catch it.
Our Tea Color Sorter can be used with black tea, green tea, white tea, dark tea, Tieguanyin, Pu'er tea and
other varieties. It uses new anti-rust chutes, non-toxic, harmless, in line with international food safety standards.
It uses tea professional channel, not blocking material, smooth and even, greatly reducing the rate of broken
tea, double layer sorting can achieve sorting twice, reducing the feeding time and making color sorting performance
more accurate, with a higher output. With Full-Color dual cameras, making it the best sorting equipment in the tea industry.
| High Intelligent CCD Black Tea Sorting Machine Tea Color Sorter model |
| Model |
6CSX-136S |
6CSX-256S |
6CSX-512S |
| Output(kg/h) |
<100 |
<200 |
<400 |
| Carryover Rate(Bad:Good) |
10:1 |
6:1 |
6:1 |
| Sorting Accuracy(%) |
≥99.9 |
≥98 |
≥98 |
| Voltage (v/Hz) |
220V 50HZ |
220V 50HZ |
220V 50HZ |
| Power Supply(Kw) |
1.2-1.6 |
2.4-2.6 |
4.8-5.6 |
| Pressure(Mpa) |
0.5-0.7 |
0.5-0.7 |
0.6-0.8 |
| Air Consumption(L/min) |
<1800 |
<3600 |
<5200 |
| Weight(Kg) |
400 |
720 |
1340 |
| Diamension(mm) |
1035*1934*2223 |
1073*1934*2223 |
2050*2050*2300 |
| Matching power / voltage |
|
|
0.8Kw/380v50Hz
|
Application of Tea Color Sorter
Suitable for different types of tea, including: black tea, green tea, black tea, etc.
Working Principle
1. Raw Material are put into the machine from its feeding hopper on the top.
2. Vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber through sensor and background plate .
3. Under the effect of light source, CCD sensor receives compound light from materials being sorted.
4. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve to work ,ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber.
Product advantages
1. Linear array CCD adopt full-color sorting technique, high resolution for full color, High speed sorting recognition is more exquisite.
2. Blend in Shape recognition technique,more precise to make a grade to the rice and grain.
3. Visible full color light spectral distribution, free to adjust the spectral region
4. It can be suitable to sort a variety of grains, industrial products, other particles and sheet material through choose different sloping chute.
5. High resolution imaging technology,take the pictures to collect the images of sorted products,
it can be defined sorting for thousands of materials and 100,000 colors, truly achieve wide use color sorting.
6. Each group can independently and simultaneously process multi-tasking and multi-mode color sorting,
multi, anti-election and multi-color simultaneously.
7. High Brightness,long-life LED light can satify to different products and color,and needn't to change LED light.
8. Powerful software platform, easy to lear and know, simple to operate.

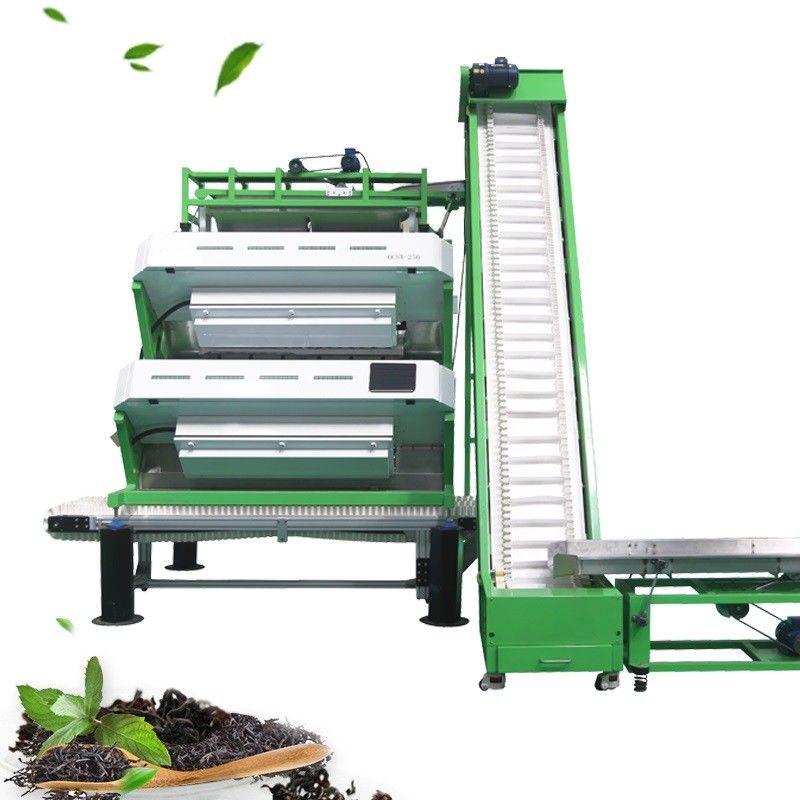

Real Picttures Show
