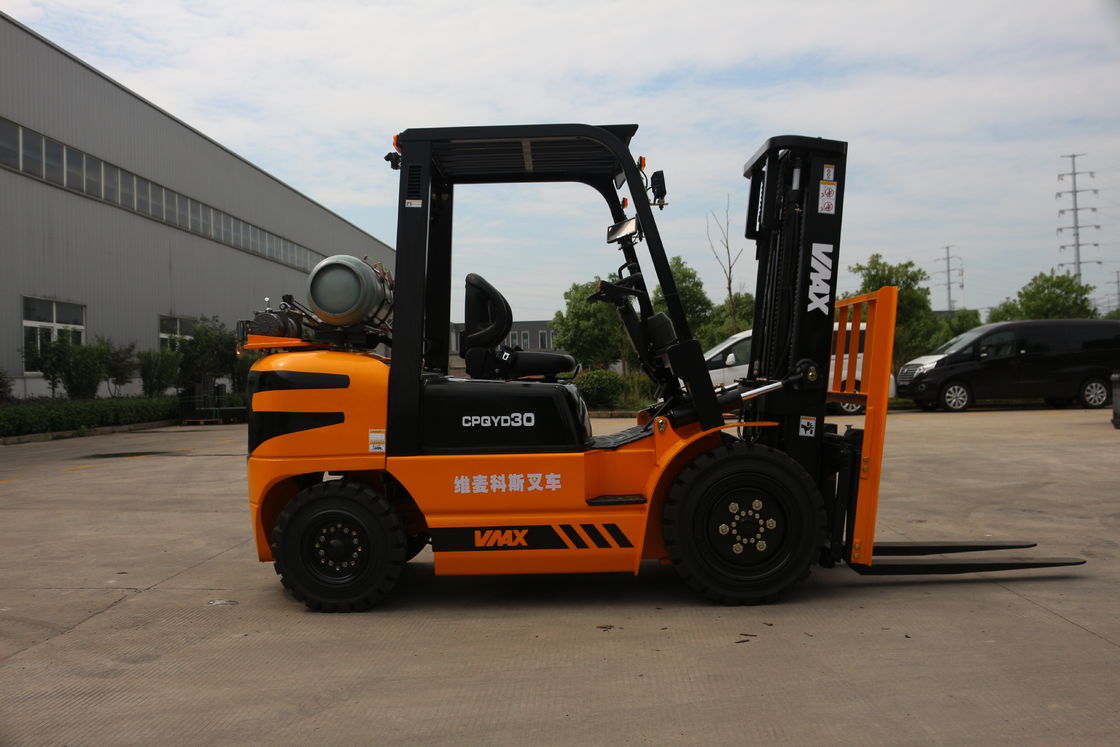

Manual Automatic LPG Forklift Truck With IMPCO 2500kgs Loading Capacity
Lp Gas Forklift Quick Details
Condition:New
Place of Origin:Anhui, China (Mainland)
Brand Name:Vmax
Model Number:CPQYD25
Type:Powered Pallet Truck
Power Souce:LP Gas Engine
Rated Loading Capacity:2500KG
Max. Lifting Height:3000mm
Min. Lifting Height:85mm-100mm
Fork Length:1070mm
Fork Width:125mm
Overall Dimensions:2580*1160mm
Certification:CE
After-sales Service Provided:Engineers available to service machinery overseas
color:nacarat
load center:500mm
Lp Gas Forklift Packaging & Shipping
A: Date of delivery: 15-25days after received the deposit
B: Payment terms: T/T(30% deposit, balance paid before shipment). Or L/C at sight
C: Guaranty period: One year or 2000hours upon receiving goods.
| Model |
|
CPQYD25 |
| Load capacity |
kg |
2500 |
| Load center |
mm |
500 |
| Power type |
|
Gasoline/LPG/CNG |
| Max. lifting speeds |
mm/s |
400 |
| Max. Driving speeds |
km/h |
17/19 |
| Max. Towing |
KN |
15/10 |
| Grade ability |
% |
15/20 |
| H1 Lifting height |
mm |
3000 |
| Free lift |
mm |
60 |
| Tilting angles |
|
6/12 |
| Min.turning radius |
mm |
2450 |
| Min.right angle aisle width |
mm |
2050 |
| Min.under-clearance |
mm |
110 |
| Dimensions |
A Overall length(including fork) |
mm |
3605 |
| B Overall width |
mm |
1160 |
| H Overall height(mast lowered) |
mm |
2095 |
| H2 Overall height(mast extend) |
mm |
4080 |
| Tyre |
Front tyre |
|
7.00-12 |
| Rear tyre |
|
6.00-9 |
| Total weight |
kg |
3600 |
| Engine |
Engine model |
|
Chinese GQ-4Y/Nissan K21/K25 |
| Rate Power |
kw |
37/36 |
| Rotate Speed At Rate power |
ram |
2650/2400 |
| Max. torque |
Nu |
≥148 |
| Rotate speed at max torque |
ram |
1800-1900 |
Our Services
As a professional manufacturer of forklift, we also can offer you customized service,
The following items are optional:
Container mast, for example, 2-stage full free mast of 3m, 3-stage full free mast of 4.5m/ 4.8m
Side shifter, fork positioner, longer forks, fork extension
For the details of customized configurations and options, please contact with us.
VMAX professional service will be impressed on you.
