3 ton diesel forklift CPC30 with Japan truck motors upside down forks vmax:
| Specifications |
| 1 | Manufacturer | VMAX |
| 2 | Model | Unit | CPC30 |
| 3 | Power type | | DIESEL |
| 4 | Rated capacity | kg | 3000 |
| 5 | Load center | mm | 500 |
| 6 | Operator type | | Drive in seat |
| Size |
| 7 | Max. lift height of mast with Load-backrest | mm | 4262 |
| 8 | Max.lift height of fork | mm | 3000 |
| 9 | Height of mast | mm | 2065 |
| 10 | Free lift height(with backrest) | mm | 160 |
| 11 | Height of Load-backrest | mm | 1240 |
| 12 | Distance from seat to overhead guard | | mm | 1000 |
| 13 | overhead guard height | | mm | 2090 |
| 14 | Length without fork | mm | 2682 |
| 15 | Front overhang | mm | 479 |
| 16 | Rear overhang | mm | 495 |
| 17 | Wheel base | mm | 1700 |
| 18 | The height of traction pin | mm | 310 |
| 19 | Min. ground clearance | mm | 135 |
| 20 | Overall width | mm | 1225 |
| 21 | The distance between forks | | mm | 1060/250 |
| 22 | Tread(front /rear) | | mm | 1000/970 |
| 23 | Min. Turning radius(outside) | mm | 2400 |
| 24 | Min. Turning radius(inside) | mm | 200 |
| 25 | Min. Intersecting aisle | | mm | 2380 |
| 26 | Mast tilt angle | deg | 6° / 12° |
| 27 | Fork size | mm | 1070*125*45 |
| Performance |
| 28 |
Speeds | Max.Drive speeds(with/without full load) | km/h | 18/19 |
| 29 | Lifting speeds (with /without full load) | mm/s | 440/480 |
| 30 | Lowering speeds(with /without full load) | mm/s | 450/500 |
| 31 | Max. tractive force(with /without full load) | KN | 20/16 |
| 32 | Max.grade ability (with/without full load) | % | 20/20 |
| Weight |
| 33 | Total weight | kg | 4690 |
| 34 | Weight Distribution full load (front/ rear) | | kg | 6543/727 |
| 35 | Weight Distribution zero load(front / rear) | | kg | 1708/2562 |
| Wheels and Tyres |
| 36 | Quantity of wheels | | | 2 X / 2 |
| 37 | Type of tyres | | | Air tires |
| 38 | Tires | Front | | 28x9-15-12PR |
| 39 | Rear | | 6.50-10-10PR |
| 40 | Driving Brake | | | hydraumatic pedal |
| 41 | Parking Brake | | | Mechanical manual |
| Control device for driving and transmitting |
| 42 | Battery | V/AH | 12/80 |
| 43 | Engine (standard) | Model | | ISUZU C240PKJ-30 |
| 44 | Rated output | kw/rpm | 35.4/2500 |
| 45 | Rated torque | N.m/rpm | 137.7/1800 |
| 46 | No.of cylinder | | 4-84X102 |
| 47 | Displacement | L | 2.369 |
| 48 | Fuel tank capacity | L | 60 |
| 49 | Number of speeds for transmission | power pallet transmission |
| Words in red could be changeable for your special requirments. |
|

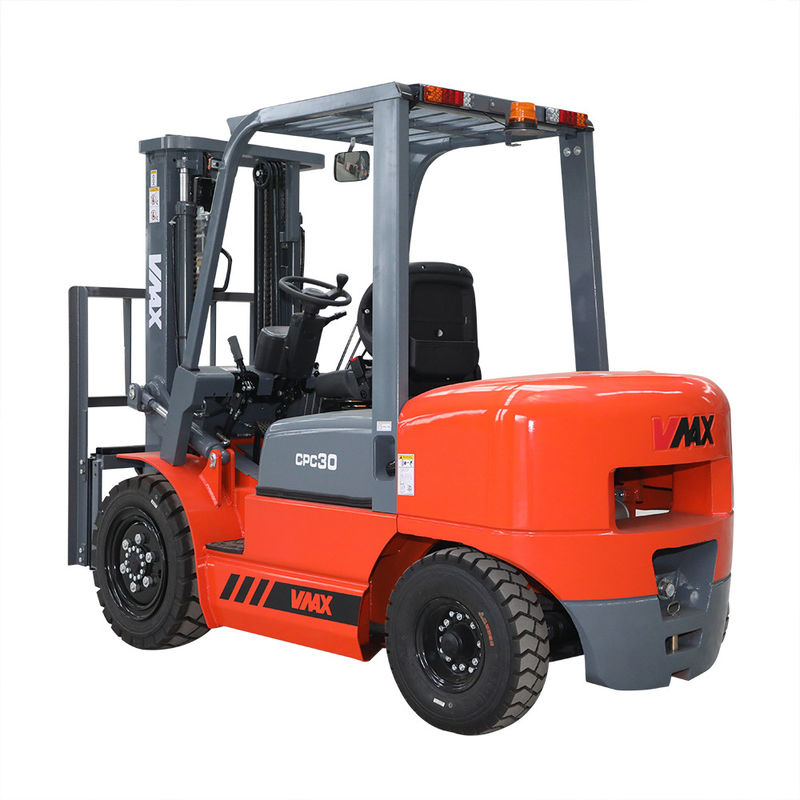

Please seem more real image of the truck CPC30 from our factory:
About us:
Anhui VMAX Heavy Industry Co.,Ltd is the subsidiary of Hengtian Group, and is responsible for the import and export business of VMAX the sales channels and marketing network management, and providing forklifts, spare parts, and after-service to overseas.
Anhui VMAX Heavy Industry Co.,Ltd is a major enterprise in the forklift truck manufacturing industry in China.VMAX has a complete product range of material handling equipment, from 1-16t internal combustion counterbalance forklift, 1-5t electric counterbalance forklift truck, warehouse equipment, reach stacker and more. Utilizing our state-of-art R&D center, our provincial level technology center, efficient production support system and our strong marketing leading system, more 40 abroad agents, all these offers strong support to our customers.
