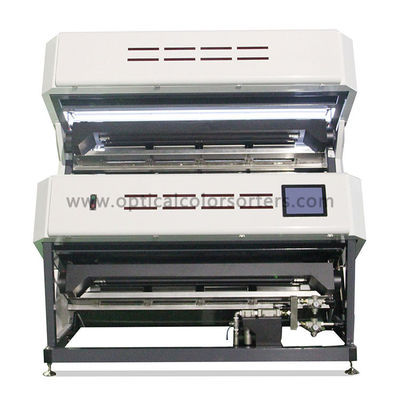

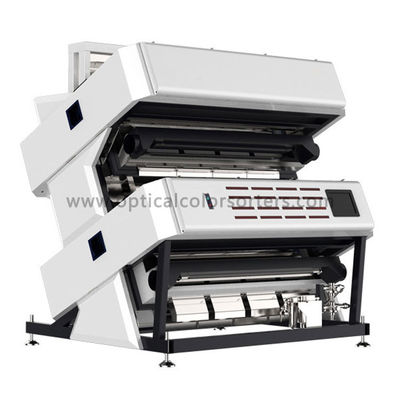

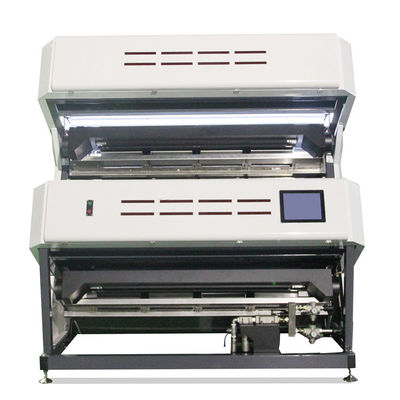

Quartz mineral optical sorting machine quartz sand optical separator
The sorting of raw materials in rejects and pure product by means of optical sorting technology is an essential production step in reducing of production cost as well as for quality assurance of the final product.
Thereby optoelectronic sorting technology is the key to success! It comes to operation where mechanical approaches reach their limits. Tasks which were not solvable due to economic or technological aspects can today be solved with means of optoelectronic sorting technology.
NEWBELT quartz mineral optical sorting machine for powder size, according to the color, the ore is sorted by color, and the sorting method is environmentally friendly.
After the ore is sorted according to the color, the discolor ore is removed. After the optical sorting, the color is bright, the purity of the ore is improved, the value is greatly improved, and the profit margin beyond the imagination is provided to the customers.
The ore color sorting machine has high output and high selection rate, instead of manual selection, automatic production of ore processing
Suitable range: potassium feldspar, gypsum, pebbles, talc, phosphate rock, silica, calcite, dolomite, andalusite, fluorite, vermiculite, mica, bentonite, kaolin, barite, feldspar, quartz, cinder other
Efficient ore color sorter changes traditional beneficiation model
The emergence of ore optical sorting machine has broken the traditional mineral processing bottlenecks such as re-election, flotation, magnetic separation and pickling. The ore sorting method is more scientific and environmentally friendly! NEWBELT Ore Color Sorting Machine, sorting ore by color, sorting a variety of ore efficiently, and realizing the “three highs” requirement of “high output”, “high efficiency” and “high precision” for ore sorting!
Good products naturally bring good benefits! NEWBELT Ore Optical Sorting Machine creates a new mineral processing mode for you, so that you can take a step faster and seize the new opportunity of the market!
Advantages of the NEWBELT series sorter:
1, the selection of various minerals by color and brightness, to achieve low cost.
2. The double-sided camera detects the material.
The slightest difference in color and brightness (for example, in the selection, white/light gray and dark gray limestone, and different degrees of brown in quartz) can be reliably detected by the selection parameters.
3, the design of the far focal length can well protect the safety of the sorting box glass, and the dust will also be the principle glass, which can greatly reduce the number of cleaning. Let the machine run efficiently and stably.
4. The material is maximized by accurate detection and precise sorting. The NEWBELT series products can be precisely adjusted according to the size of the materials to be selected, so that the injection of high pressure air is optimal.
5. Optimization of the suction components, automatic cleaning of the illumination source and long life of the compressed air components can reduce machine maintenance operations.
6, wear-resistant steel, plus deoxidized steel, and some stainless steel effective protection, to ensure the durability of the machine.
Quartz mineral optical sorting machine quartz sand optical separator Features:
1, Vertical chute solves the problem of powder and track sticking during powder ore sorting
2, Suitable for the ore particle range from 26mesh to 120mesh
3, The slides are made of high-density alloy and are resistant to wear and scratches.
Quartz mineral optical sorting machine quartz sand optical separator Specification
| Model |
HK3008-1Z |
HK1504-2Z |
| Output(t/h) |
26-40 mesh |
5.0-10.0 |
26-40 mesh |
3.0-5.0 |
| 40-70 mesh |
4.0-8.0 |
40-70 mesh |
2.0-4.0 |
| 70-120 mesh |
2.0-4.0 |
70-120 mesh |
1.0-2.0 |
| Carryover rate |
>1:30 |
>1:30 |
| Accuracy |
>99% |
>99% |
| Voltage |
180-240V/50-60HZ |
180-240V/50-60HZ |
| Power(kw) |
6.5 |
5 |
| Air pressure(Mpa) |
0.2-0.6 |
0.2-0.6 |
| Air consumption(L/min) |
1800 |
2800 |
| Weight(kg) |
2600 |
2400 |
| Dimensions(mm) |
3995*1920*1770 |
2336*2233*2511 |

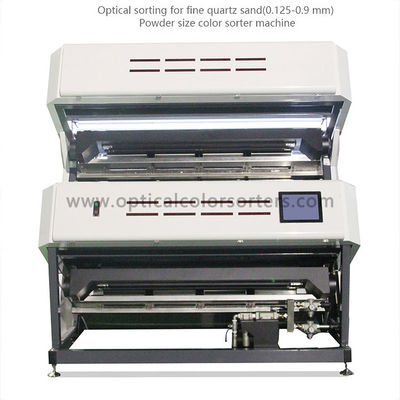

Optial sorting solution for quartz

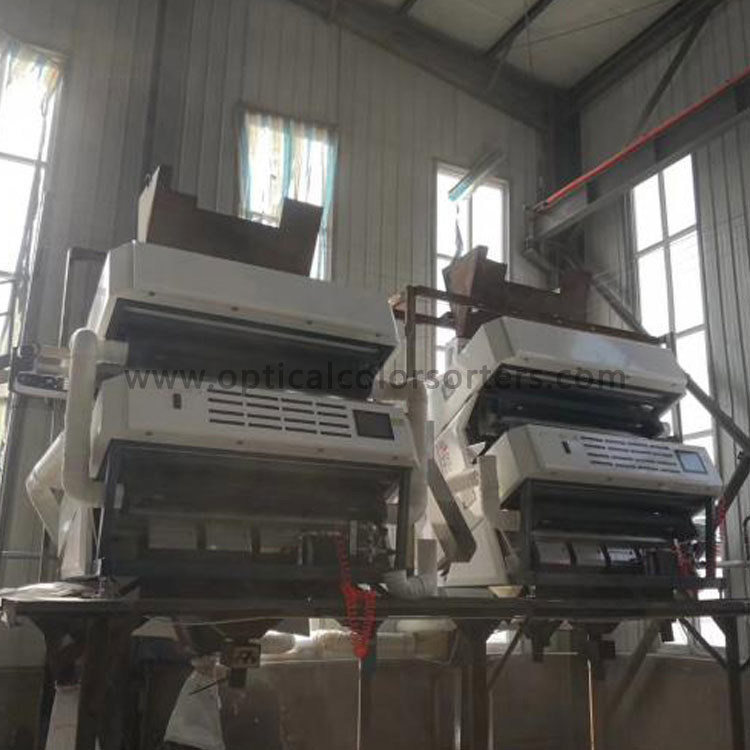

Installation cases of Quartz mineral optical sorting machine quartz sand optical separator
