Smart Body Temperature Measuring Instrument
Helmet introduction:

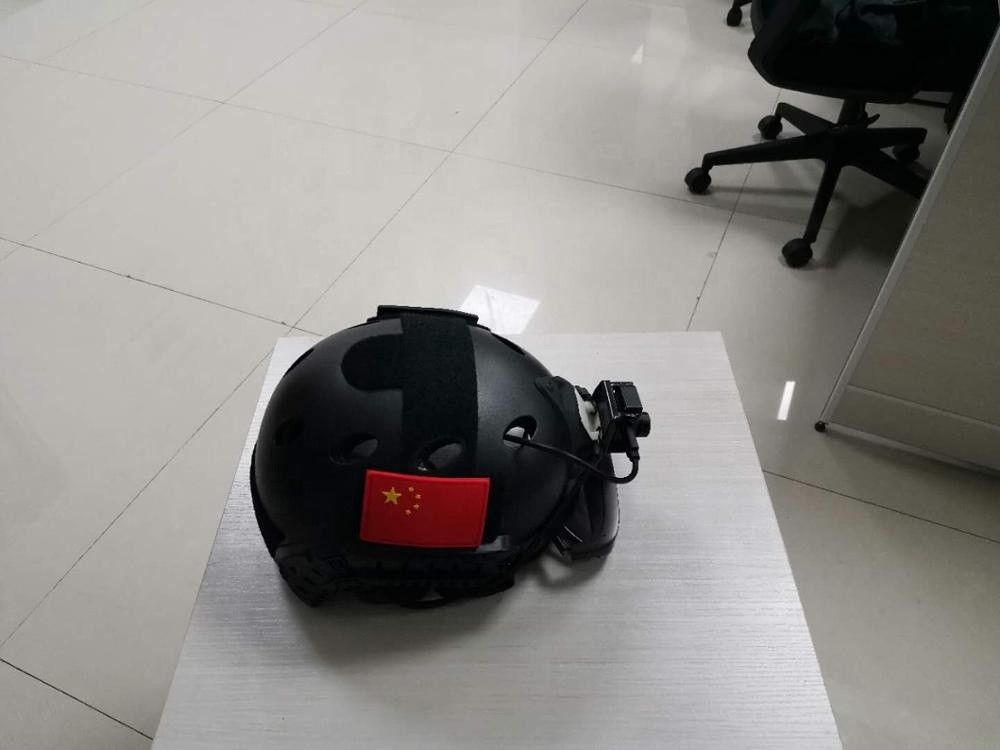

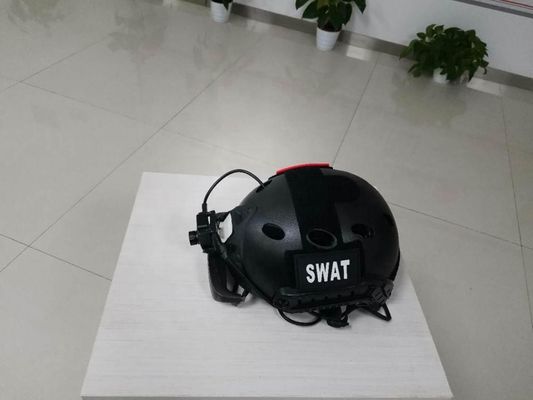

launched a virtual-real-integrated intelligent interactive helmet (Warrior) combining optical waveguide display technology and digital twin technology, equipped with high-precision infrared thermometer, thin and light AR glasses, and applied virtual-real fusion technology to realize real-time perception and decision-making of virtual and real environments. Situation handling brings convenience and provides new technical means for workshop inspections, production control, and smart city operations. At the same time, it has the function of self-adaptive calibration of ambient temperature and humidity, which can realize non-contact crowd temperature measurement, and the temperature measurement accuracy can reach ± 0.3 ℃. If abnormal body temperature is found, a warning will be automatically reminded on the glasses screen. Provide safe epidemic inspection programs for public places such as highway junctions, stations, airports, schools, etc.
Helmet Features:
(1) Non-contact infrared temperature measurement, reducing the probability of transmission of infection by close contact;
(2) With virtual-real interaction function, real-time perception and decision-making of virtual and real environment;
(3) With temperature abnormal alarm prompt function.
(4) Can expand more uses, one machine for multiple uses, great value for money
Helmet parameters
|
Measurement method
|
Non-contact
|
|
Infrared resolution
|
120*90@17μm WLP
|
|
Working band
|
8~14μm
|
|
Working temperature
|
0℃~50℃
|
|
Measuring range
|
16℃~50℃
|
|
Temperature measurement accuracy
|
25 ℃ambient temperature, target temperature range 32 ℃ ~ 42℃, 0.8m, temperature measurement accuracy (measuring
blackbody) ≤ ± 0.5 ℃
|
|
Virtual screen
|
80inch@3M,Resolving power:1280*720P
|
|
Camera
|
2 mega pixel
|
|
Charging interface
|
Type C
|
|
Product size
|
300mm*200mm*25mm
|
|
Endurance
|
≥8h
|
With packing list
|
Intelligent interactive helmet
|
|
Number
|
Name
|
Specifications
|
Quantity
|
Note
|
|
1
|
Tactical helmet
|
/
|
1
|
|
|
2
|
AR glasses
|
Split binocular,2*LCOS,1280*720 shows;Android 7.0;IP54 protection level;million pixels
|
1
|
|
|
3
|
Infrared thermal imager
|
The accuracy of temperature measurement is ±0.5℃;Pixel spacing 17 m;Operating temperature: -10℃~±50℃
|
1
|
|
|
4
|
Cable
|
/
|
1
|
|
Warranty and after sales:
(1) Within one year from the date of purchase of our products, if there is a performance failure that is not artificially damaged, our company will provide a free warranty;
(2) During the warranty period, any failure caused by the quality of the product itself, please return it to our company for repair;
(3) Failures or damage caused by man-made or natural disasters during the free maintenance period will require maintenance costs;
(4) Maintenance services outside the free maintenance period are subject to maintenance costs.
The following conditions are not covered by the warranty:
(1) Damage caused by abnormal operation and human or natural disasters;
(2) Damage caused by disassembling and replacing any part of the product (such as wiring, parts) by yourself;
(3) Failures caused by non-our designated professional and technical personnel to guide the installation;
(4) Machines that fail due to unauthorized modification or addition of other functions will not be accepted.
