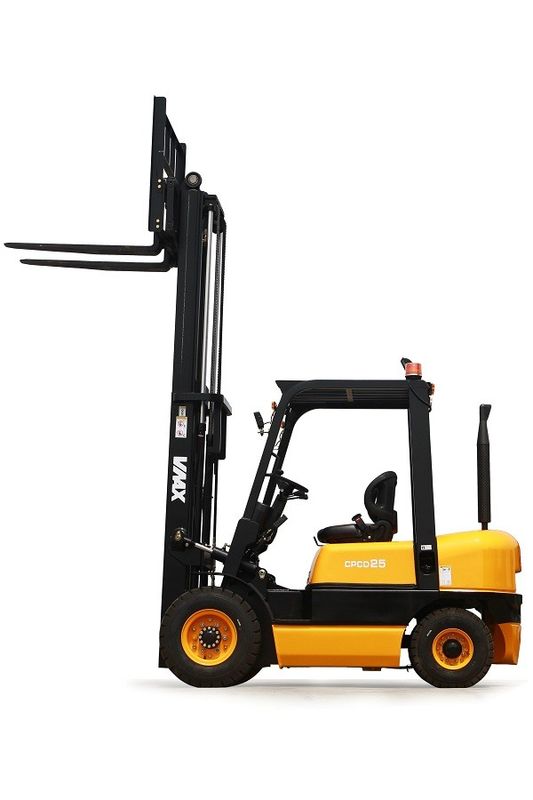

Small Industrial Forklift Truck 1.5 Ton Professional Automatic Transmission
automatic lift truck STANDARD INSTALLMENT:
CPCD15: Load capacity 1500kg,hydraulic transmission,3m 2stage duplex mast,
China engine C490BPG,1070mm fork, Electronic gear transmission, key switch,
Pneumatic tyres,Safety seat,Free tool box and spare parts.
automatic lift truck OPTION:
As a professional manufacturer of forklift, we also can offer you customized service,
the following items are optional:
Container mast, for example, 2-stage full free mast of 3m, 3-stage full free mast of 4.5m/ 4.8m
side shifter, fork positioner,longer forks, fork extension
For the details of customized configurations and options, please contact with us.
VMAX professional service will be impressed on you.
automatic lift truck specification:
| Model |
|
CPC(D)15-X1 |
| Power type |
|
diesel |
| Rated capacity |
kg |
1500 |
| Load center |
mm |
500 |
| Mast Lifting height |
mm |
3000 |
| Fork size |
Length*Width*Thickness |
mm |
920x100x35 |
| Tilting angles |
Front/Rear |
. |
6/12 |
| Min. Turning Radius |
mm |
2060 |
| Min. intersecting stacking aisle |
mm |
3680 |
| Min. intersecting aisle |
mm |
1865 |
| Min. ground clearance |
mm |
100 |
| Overhead guard height |
mm |
2040 |
| Front overhang |
mm |
420 |
| Max. driving speeds |
km/h |
14.5 |
| Max. lifting speeds |
mm/s |
460 |
| Max. grade ability |
% |
20 |
| Length without fork |
mm |
2285 |
| Overall width |
mm |
1070 |
| Max. lift |
mm |
4030 |
| Mast height |
mm |
1985 |
| Tires |
Front |
mm |
6.50-10-10PR |
| Rear |
mm |
5.00-8-10PR |
| Wheelbase |
mm |
1400 |
| Tread |
Front/ Rear |
mm |
890/920 |
| |
Self-possessed |
Kg |
2680 |
| Battery |
Voltage/Volume |
V/Ah |
12/80 |
| Engine |
Model |
|
NB485BPG |
| Rated output |
kw/r.p.m |
30/2600 |
| Rated torque |
Nm/r.p.m |
131/1800 |
| No.of cylinder |
|
4 |
| Displacement |
L |
2.27 |
| Fuel tank capacity |
L |
45
|
