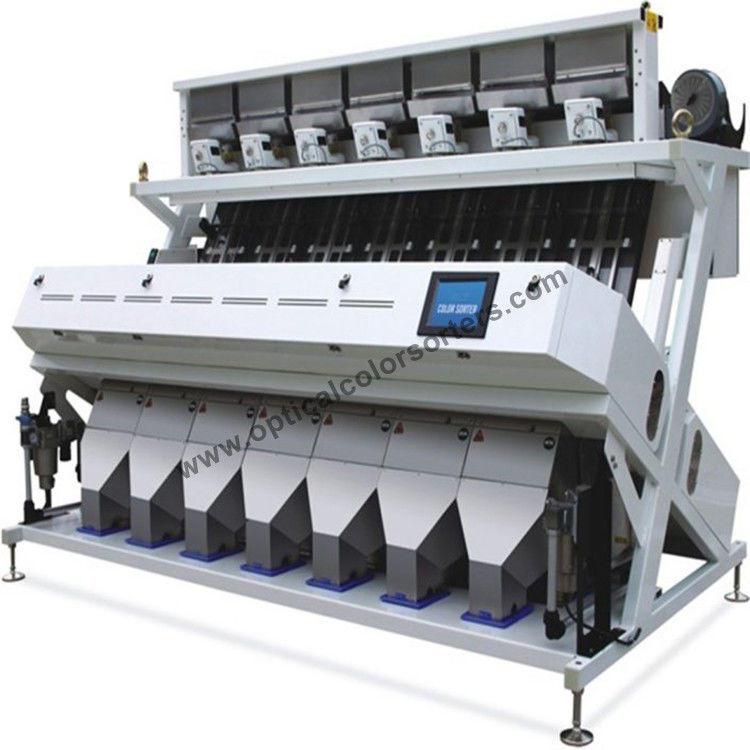

Channel Optical Color Sorter
Channel Optical Color Sorter Features
1. The introduction of LED air cooling.
2. The unique suction ventilation system.
3. Full-color high-definition CCD camera image acquisition system.
4. Intelligent operating platform, easy to operate, easy to master, the real man-machine dialogue, intelligent docking, sit back and relax.
5. International high-end full-color line scan technology.
Technology Data
| Model |
RCSK2 |
RCSK3 |
RCSK4 |
RCSK5 |
RCSK6 |
RCSK7 |
| Output(t/h) |
2-5 |
4-7.5 |
6-10 |
7-12.5 |
8-13 |
10-15 |
| Carryover (bad:good) |
>8:1 |
>8:1 |
>8:1 |
>8:1 |
>8:1 |
>8:1 |
| Accuary(%) |
>99% |
>99% |
>99% |
>99% |
>99% |
>99% |
| Power(V/Hz) |
220/50 |
220/50 |
220/50 |
220/50 |
220/50 |
220/50 |
| Power(Kw) |
0.8-1.5 |
1-2.0 |
1-3.0 |
1.5-3.5 |
1.5-4.0 |
2-4.5 |
| Air pressure(Mpa) |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
| Consumption(L/min) |
＜960 |
＜1440 |
＜1920 |
＜2400 |
＜2880 |
＜3360 |
| Weight(Kg) |
500 |
700 |
850 |
950 |
1100 |
1400 |
| Dimensions(mm) |
1250*1607*1953 |
1875*1607*1953 |
1920*1607*1953 |
2260*1607*1953 |
2596*1607*1953 |
2934*1607*1953 |
Recommended Applications
* Rice
* Wheat
* Peanuts
* Seeds
* Grains
* Beans and Pulses
Example of Sorting
