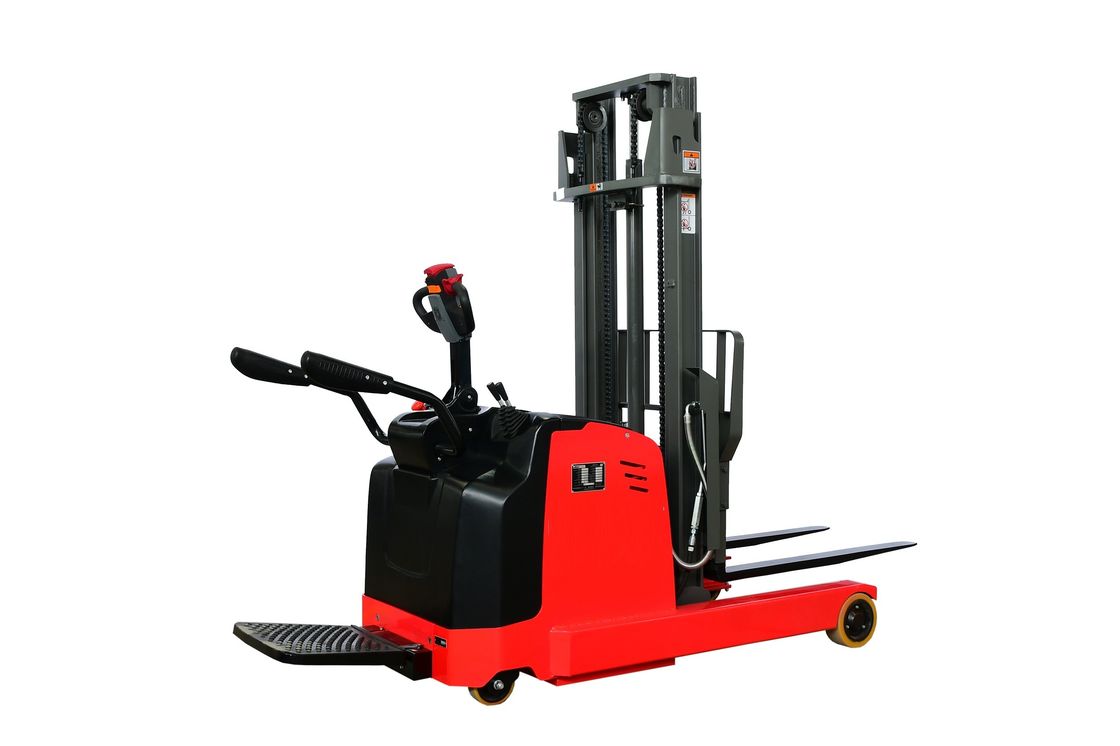

Stand on Electric Reach Stacker Truck MFA
Main Features:
1. Maintenance-free high-power AC drive system, providing reliable driving power;
2. The standard CURTIS series controller is reliable and durable.AMP waterproof and dustproof plug-in, which provides reliable protection for the circuit and greatly reduces electrical faults;
3. Platform type, pure electronic steering, integrated control handle, safe, labor-saving, flexible operation;
4. The newly designed floating suspension system makes the steering operation more flexible and convenient;
5. The frame is made of high strength steel plate frame structure, with large residual bearing capacity and long service life.
Specifications:
| Model |
|
MFA15 |
MFA20 |
| Power type |
|
Battery |
Battery |
| Operation type |
|
Stand-on |
Stand-on |
| Service weight(incl. battery) |
kg |
2100 |
2200 |
| Rated capacity |
Q(kg) |
1500 |
2000 |
| Load center |
C(mm) |
500 |
500 |
| Lift height |
h3(mm) |
3000 |
3000 |
| Fork dimension |
l/e/s(mm) |
1070/100/35 |
1070/100/40 |
| Front overhang |
x(mm) |
130 |
130 |
| Turning radius |
Wa(mm) |
1800 |
1985 |
| Max. gradeability |
%(tanθ ) |
6/8 |
6/8 |
| Travelling speed laden/unladen |
km/h |
4/5.8 |
4/5.8 |
| Lifting speed laden/unladen |
mm/s |
120/150 |
95/150 |
| Lowering speed laden/unladen |
mm/s |
140/130 |
100/95 |
