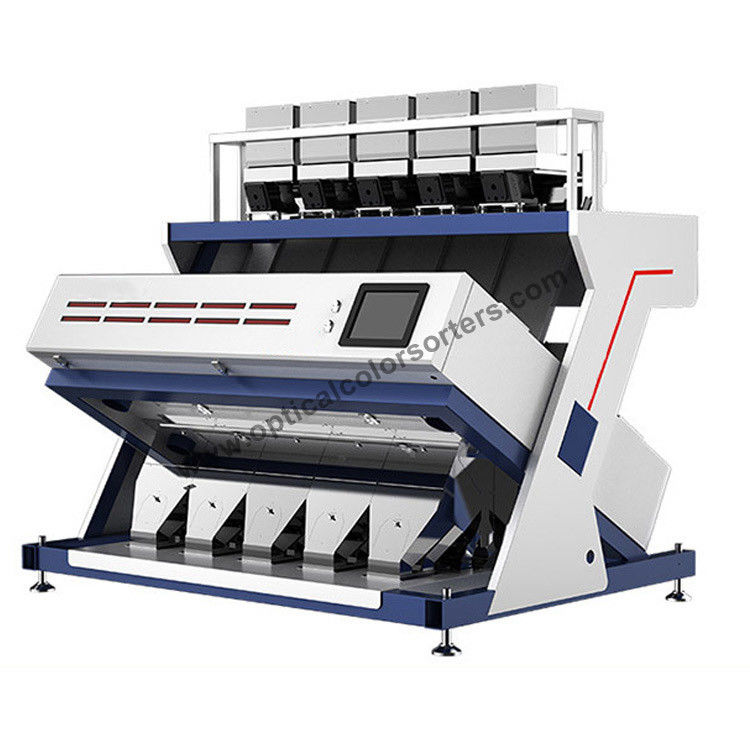

Infrared Seed Sorting Machine
Product Description
* Partner for solutions. Increasing profitability.
* Providing optical sorting solutions for seed processors who demand the highest standards of seed quality, with a focus on maximising yields; cleaning and germination.
* Infrared Seed Sorting Machine sorts a variety of seeds; corn seeds, soya seeds, carrots, onions and grass seeds, producing excellent results and removing even the most challenging of defects and foreign material.
Technical Characteristics
1. High-precision image acquisition system
The international cutting-edge industry-specific 5400*3*12K full-color high-speed line scanning imaging CCD sensor can provide up to 190 million pixels of high-definition images per second. The color selection lens tailored by top international suppliers accurately recognizes 0.04MM fine lesions.to meet the high-end color selection requirements of pin point, blackhead simultaneous sorting, and separate sorting.
2. Big data
Create an open mass database, store unlimited integration of a wide range of material selection solution platform, achieve one machine multiple selection, one machine multi-purpose, single machine can complete two, three, four selection at the same time, reduce the ratio of take-out, stand-alone can be applied to rice Widespread use of miscellaneous grains, cash crops, etc. to maximize product application value for customers, sharing the convenience and commercial value of the era of big data.
3. Multi-core parallel processing system
Adopting the new multi-core parallel processing system, the color selection, shape selection and intelligent selection scheme are flexibly matched and synchronized, and the foreign object precise recognition algorithm is combined to provide a more flexible sorting and combination scheme, and the color selection precision is higher.
Technical Parameters
| Model |
Channel |
Throughput(T/h) |
Carryover (bad: good)) |
Accuracy(%) |
Voltage(v/Hz) |
Power(Kw) |
Weight(Kg) |
Dimensions(mm) |
| RCI1-A |
64 |
0.5-3 |
＞10:1 |
≥99.99% |
AC220V/50HZ |
0.3~0.5 |
240 |
974.2*1550.9*1399 |
| RCI3-A |
192 |
1.5-9 |
＞10:1 |
≥99.99% |
AC220V/50HZ |
0.4-0.65 |
500 |
1554*1707*1827.9 |
| RCI4-A |
256 |
2-12 |
＞10:1 |
≥99.99% |
AC220V/50HZ |
0.7-1.1 |
800 |
1869*1707*1827.9 |
| RCI5-A |
320 |
2.5-15 |
＞10:1 |
≥99.99% |
AC220V/50HZ |
0.7-1.1 |
1000 |
2184*1707*1827.9 |
| RCI6-A |
384 |
3-18 |
＞10:1 |
≥99.99% |
AC220V/50HZ |
1.1-1.9 |
1100 |
2499.2*1707*1827.9 |
| RCI7-A |
448 |
3.5-21 |
＞10:1 |
≥99.99% |
AC220V/50HZ |
1.1~1.9 |
1350 |
2814.2*1706.7*1839.9 |
| RCI8-A |
512 |
4-25 |
＞10:1 |
≥99.99% |
AC220V/50HZ |
1.3-2.2 |
1500 |
3129*1709.9*1827.9 |
| RCI10-A |
640 |
5-30 |
＞10:1 |
≥99.99% |
AC220V/50HZ |
1.4-2.3 |
1750 |
3759.2*1709.9*1827.9 |
| RCI12-A |
768 |
6-35 |
＞10:1 |
≥99.99% |
AC220V/50HZ |
1.4-2.3 |
1900 |
4389*1709.9*1827.9 |
Products Advantages
1. Remote control function
Using Internet + technology, with the mobile phone APP smart color selection butler, to achieve remote control of the machine, as well as real-time online diagnostics.
2. The shell separation function
Using multi-spectral fusion technology, the visible light and infrared light can be reasonably matched to perfectly separate the shells of the gourd seed and pumpkin seed kernel.
3.Visualization function
The visualization function is used to clearly preview the color selection effect, and the color selection effect corresponding to the current parameter is displayed in real time, helping the operator to adjust the parameter to the optimal value.
Examples of Sorting
Coriander Seed Sorting Result
