vMAXChina famous brand forklift CPCD50 6 wheels drive all terrain
Product Details:
Place of Origin:
CN
Brand Name:
VMAX
Certification:
CE,BV,SGS,ISO9001
Model Number:
CPCD50
Payment & Shipping Terms:
Minimum Order Quantity:
1 unit
Price:
＄16,900.00-＄25,000.00/unit
Packaging Details:
nude package
Delivery Time:
25-30 days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
5,000 units/year
Contact Now
Detailed Product Description
Condition:
New
Power Source:
Diesel Engine
Fork Length:
1220mm
Fork Width:
150mm
Transmission:
Automatic
After-sales Service Provided:
Overseas Third-party Support Available, Engineers Available To Service Machinery Overseas, Online Support, Overseas Service Center Available, Free Spare Parts.
Overall Dimensions:
3440*2450*1995mm
Max. Lifting Height:
6000mm
Certification:
CE, BV,SGS,ISO9001
Color:
Red, Yellow, White, Green Etc
Warranty:
1 Year Or 2000 Hours
Engine:
XichaiCA4DF3, XichaiCA6110, Mitsubishi S6S-T, Isuzu6BG1QC, Commins QSB4.5
Load Center:
600mm
Loading Capacity:
5000kgs
big 5 tons load capacity forklift size 3440*2450*1995 diesel fork lift truck:
SPECIFICATIONS of VMAX diesel Forklift
Manufacturer's Data and Desigh Characteristics
Specifications
1
Manufacturer
2
Model
Unit
CPCD50
3
Power type
DIESEL
4
Rated capacity
kg
5000
5
Load center
mm
600
6
Operator type
Size
7
Max. lift height of mast with Load-backrest
mm
4380
8
Max.lift height of fork
mm
3000
9
Height of mast
mm
2500
10
Free lift height(with backrest)
mm
205
11
Height of Load-backrest
mm
1372
12
Distance from seat to overhead guard
mm
1045 1045 1080
13
overhead guard height
mm
2450
14
Length without fork
mm
3440
15
Front overhang
mm
590
16
Rear overhang
mm
600
17
Wheel base
mm
2250
18
The height of traction pin
mm
395
19
Min. ground clearance
mm
200
20
Overall width
mm
1995
21
The distance between forks
mm
1840/300
22
Tread(front /rear)
mm
1470/1700
23
Min. Turning radius(outside)
mm
3250
24
Min. Turning radius(inside)
mm
210
25
Min. Intersecting aisle
mm
2960
26
Mast tilt angle
deg
27
Fork size
mm
1220*150*55
Performance
28
Max.Drive speeds(with/without full load)
km/h
26/28
29
Lifting speeds (with /without full load)
mm/s
510
30
Lowering speeds(with /without full load)
mm/s
600/300
31
Max. tractive force(with /without full load)
KN
65
32
Max.grade ability (with/without full load)
%
35/18
Weight
33
Total weight
kg
8160
34
Weight Distribution full load (front/ rear)
kg
11810/1350
35
Weight Distribution zero load(front / rear)
kg
4100/4060
Wheels and Tyres
36
Quantity of wheels
4 X / 2
37
Type of tyres
38
Tires
Front
8.25-15-14PR
39
Rear
8.25-15-14PR
40
Driving Brake
41
Parking Brake
Control device for driving and transmitting
42
Battery
V/AH
43
Engine (standard)
Model
XICHAI 6110
44
Rated output
kw/rpm
83/2000
45
Rated torque
N.m/rpm
450/1450
46
No.of cylinder
6-100X125
47
Displacement
L
7.13
48
Fuel tank capacity
L
140
49
Number of speeds for transmission

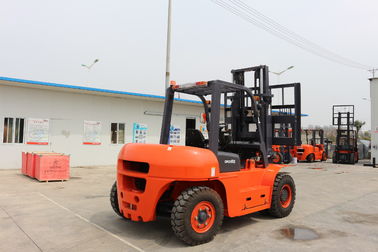

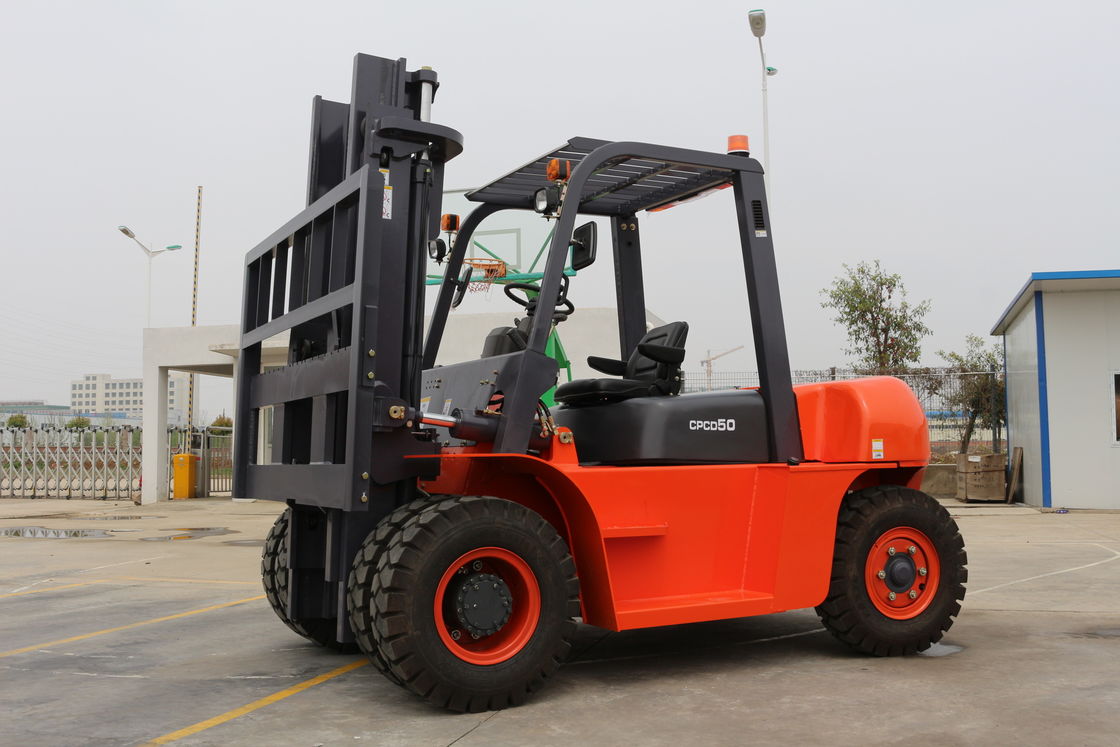

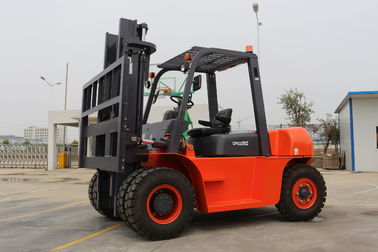

MORE PHOTOS FROM OUR FACTORY:
