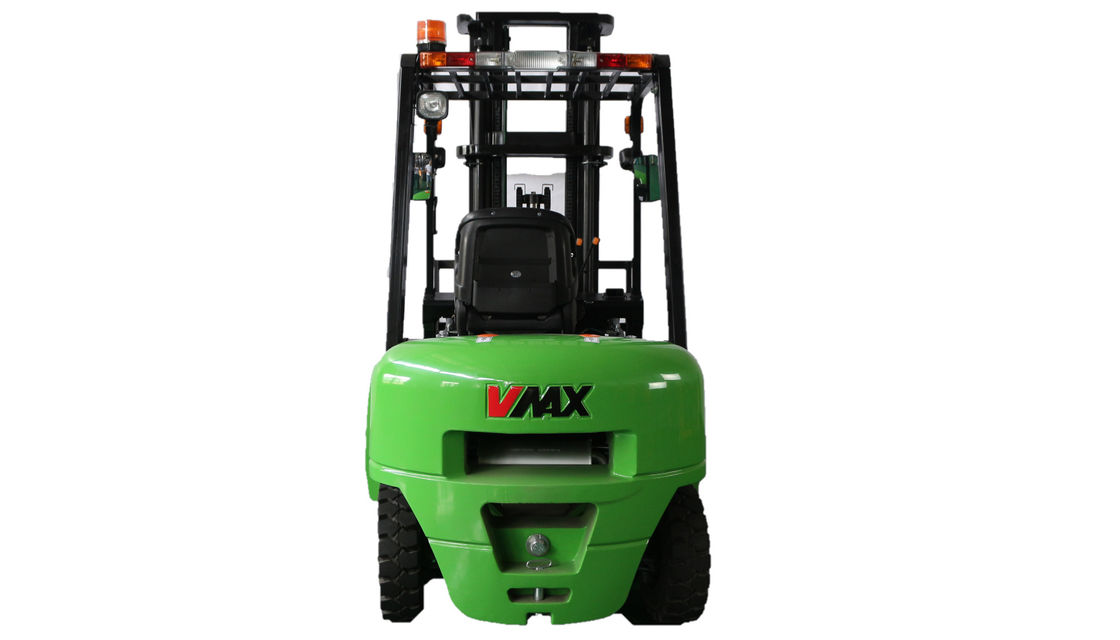

Walk Behind Pedestrian Counterbalanced Forklift , Hand Operated Small Electric Forklift
walk behind forklift hand operated forklift small electric forklift CPCD25
Vmax 2.5 ton diesel forklift with good quality and very competitive price
VMAX FORKLIFT is a professional manufacturer dedicated to handling logistics solutions, which is founded in 2010 and listed successfully in 2017 (stock code: 871332) in China.
We now can offer 5000 units forklift every year and our products have been exported to Europe, America, the Middle East, Southeast Asia, Africa and many other countries and regions.
walk behind forklift hand operated forklift small electric forklift CPCD25
| 3T COUNTER BALANCE DIESEL FORKLIFT TRUCK SPECIFICATION |
| Model |
Unit |
CPC25/CPCD25 |
| Power type |
|
Diesel |
| Rated capacity |
kg |
2500 |
| Load center |
mm |
500 |
| Mast Lifting height |
mm |
3000 |
| Free lift height |
mm |
120 |
| Fork size(L*W*T) |
mm |
1070×122×40 |
| Tilting Angles(Front/Rear) |
deg |
6°/12° |
| Front overhang |
mm |
465 |
Exterior Size |
Length without fork |
mm |
2680 |
| Overall width |
mm |
1150 |
| Mast drop |
mm |
2065 |
| Max.lift |
mm |
4030 |
| Front-wheel Overhead |
mm |
2070 |
| Min Turning Radius |
mm |
2240 |
| Min.intersecting aisle |
mm |
2010 |
Speeds |
Max Driving speeds |
km/h |
18.5/20 |
| Lifting speeds |
mm/s |
470/520 |
| Lowering speeds |
mm/s |
550/520 |
| Max.grade ability |
% |
20 |
| Total weight |
kg |
3700 |
Tires |
Front |
|
28*9-15-12PR |
| Rear |
|
6.5-10-10PR |
| Wheelbase |
mm |
1700 |
Tread |
Front |
mm |
1000 |
| Rear |
mm |
970 |
| Min.ground clearance |
mm |
110 |
Engine |
Model |
|
XINCHANG490BPG |
| Rated output |
kw/rpm |
37/2650 |
| Rated torque |
N.m/rpm |
148/1800 |
| No.of cylinder |
|
4 |
| Displacement |
L |
2.54 |
| Fuel tank capacity |
L |
52
|
Our Services
As a professional manufacturer of forklift, we also can offer you customized service,
The following items are optional:
Container mast, for example, 2-stage full free mast of 3m, 3-stage full free mast of 4.5m/ 4.8m
Side shifter, fork positioner, longer forks, fork extension
For the details of customized configurations and options, please contact with us.
VMAX professional service will be impressed on you.
