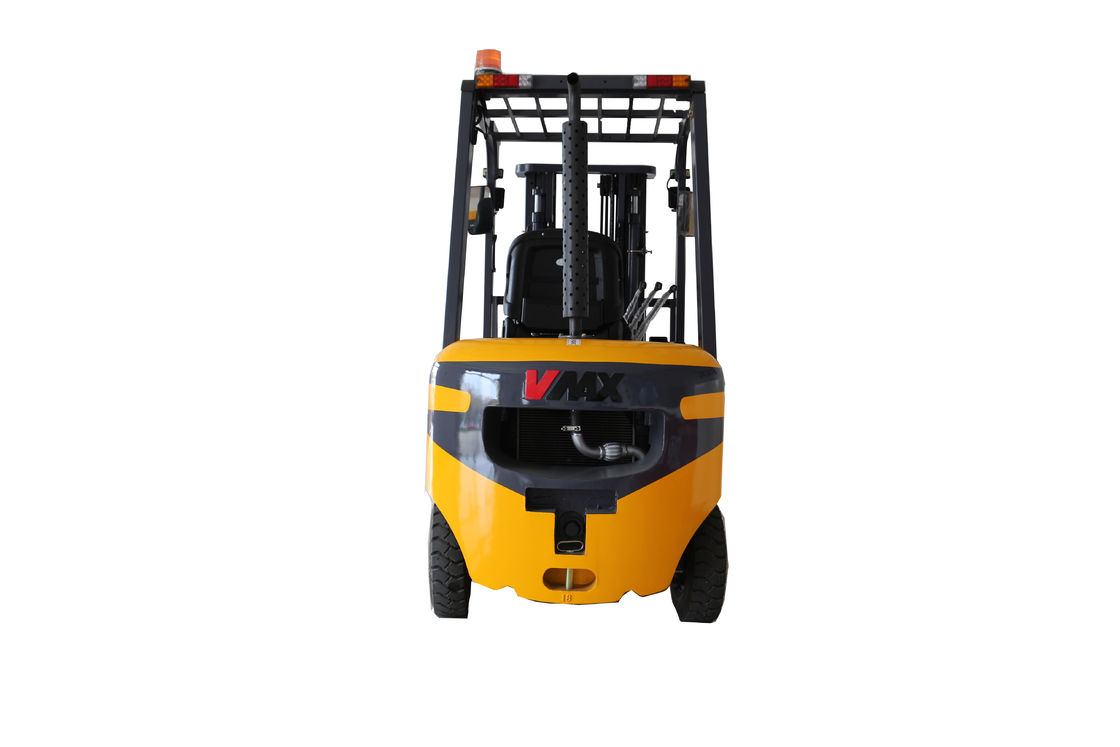

CPCD15 1.5 ton diesel forklift used fork lift pallet truck with Isuzu engine
Advantage:
As one of the most famous material handling manufactures in China,we specialize in this field for over 10 years, with the strength of diesel forklift , Electric forklift , LPG forklift , reach truck, pullet truck and stacker.
Now VMAX dealers has been wide spread in many countries like Russia, Australia,Turkey, Brazil, Mexico etc. Also We company had obtained the following certificates in this industry with the development of over 10 years:
1. CE certificate
2. ISO 9001:2008 Standard approved
3. BV&SGS Factory Audit Pass Report
4. Alibaba golden supplier for 7 years
Besides, we are always trying to be innovative and have won several patent certificate on forklift in China.
Currently the factory's capacity per year is 5000 sets(including all sorts of forklift) and averagely the leading production time is 20-30 days. While standing to expand our brand, we also gladly accept OEM based model in which you can pick Japan Engine/Curtis Controller/different forklift attachment and any you like.
VMAX do more than just selling product, but also provide material handling solution for customer. We're sure that it can satisfy your demand if needed.
automatic lift truck STANDARD INSTALLMENT:
CPCD15: Load capacity 1500kg,hydraulic transmission,3m 2stage duplex mast,
China engine C490BPG,1070mm fork, Electronic gear transmission, key switch,
Pneumatic tyres,Safety seat,Free tool box and spare parts.
automatic lift truck OPTION:
As a professional manufacturer of forklift, we also can offer you customized service,
the following items are optional:
Container mast, for example, 2-stage full free mast of 3m, 3-stage full free mast of 4.5m/ 4.8m
side shifter, fork positioner,longer forks, fork extension
For the details of customized configurations and options, please contact with us.
VMAX professional service will be impressed on you.
OTHERS :
A:date of delivery:15-25days after received the deposit
B:payment terms:T/T(30% deposit,balance paid before shipment).Or L/C at sight
C:Guaranty period: one year or 2000hours upon receiving goods.
automatic lift truck specification:
| Model |
|
CPC(D)15-X1 |
| Power type |
|
diesel |
| Rated capacity |
kg |
1500 |
| Load center |
mm |
500 |
| Mast Lifting height |
mm |
3000 |
| Fork size |
Length*Width*Thickness |
mm |
920x100x35 |
| Tilting angles |
Front/Rear |
. |
6/12 |
| Min. Turning Radius |
mm |
2060 |
| Min. intersecting stacking aisle |
mm |
3680 |
| Min. intersecting aisle |
mm |
1865 |
| Min. ground clearance |
mm |
100 |
| Overhead guard height |
mm |
2040 |
| Front overhang |
mm |
420 |
| Max. driving speeds |
km/h |
14.5 |
| Max. lifting speeds |
mm/s |
460 |
| Max. grade ability |
% |
20 |
| Length without fork |
mm |
2285 |
| Overall width |
mm |
1070 |
| Max. lift |
mm |
4030 |
| Mast height |
mm |
1985 |
| Tires |
Front |
mm |
6.50-10-10PR |
| Rear |
mm |
5.00-8-10PR |
| Wheelbase |
mm |
1400 |
| Tread |
Front/ Rear |
mm |
890/920 |
| |
Self-possessed |
Kg |
2680 |
| Battery |
Voltage/Volume |
V/Ah |
12/80 |
| Engine |
Model |
|
NB485BPG |
| Rated output |
kw/r.p.m |
30/2600 |
| Rated torque |
Nm/r.p.m |
131/1800 |
| No.of cylinder |
|
4 |
| Displacement |
L |
2.27 |
| Fuel tank capacity |
L |
45
|
