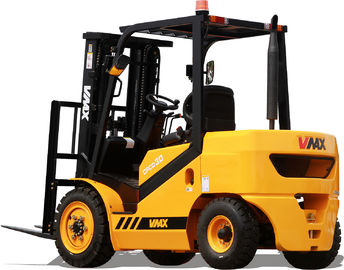

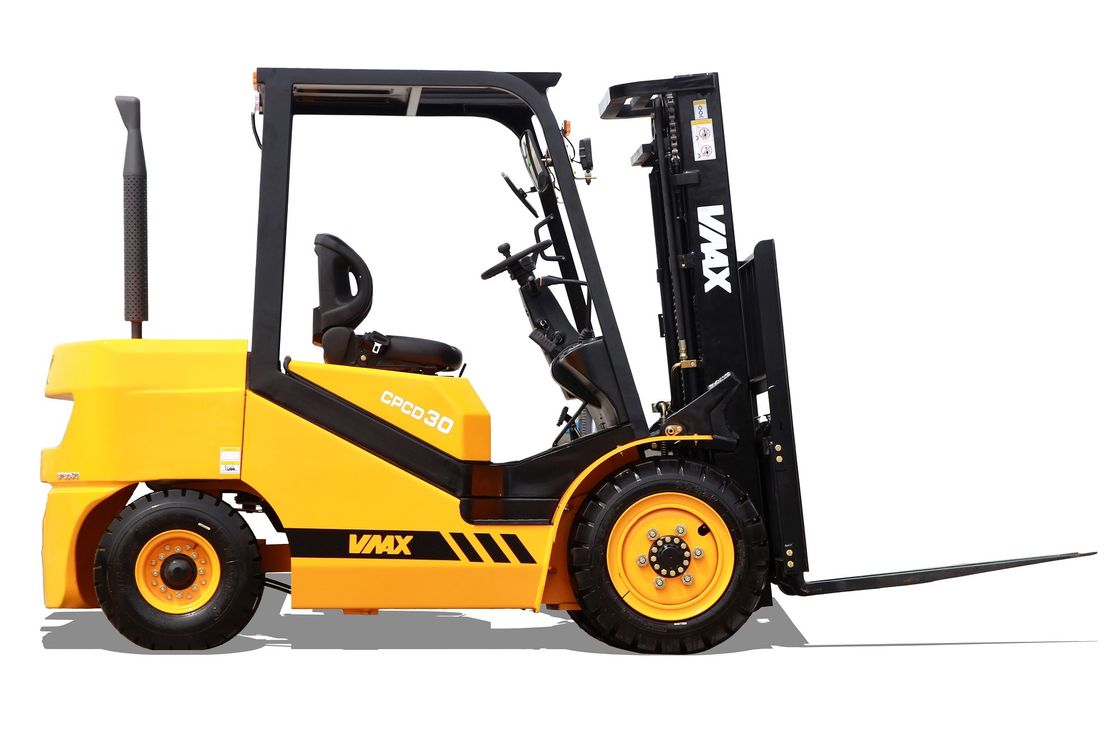

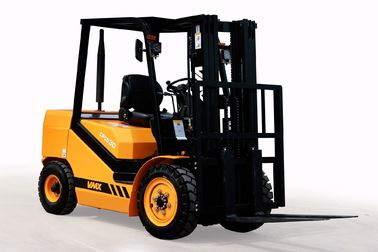

Yellow 3 Ton Diesel Forklift Warehouse Lift Truck 1070mm Fork Length
Product Details:
| Place of Origin: |
ANHUI,CHINA |
| Brand Name: |
VMAX |
| Certification: |
CE,SGS,BV |
| Model Number: |
CPCD30 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1UNIT |
| Price: |
Negotiable |
| Packaging Details: |
bubble wrap |
| Delivery Time: |
45 DAYS |
| Payment Terms: |
L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: |
3000unit / year |
Contact Now
Detailed Product Description
| Product Name: |
Diesel Forklift Truck |
Condition: |
New |
| Brand Name: |
Vmax |
Type: |
Manual Pallet Truck |
| Power Souce: |
Diesel Engine |
Rated Loading Capacity: |
3000kg |
| Max. Lifting Height: |
6000mm |
Min. Lifting Height: |
3000mm |
| Fork Length: |
1070mm |
Color: |
Yellow Or Custom Made |
| Certification: |
ISO CE, SGS, BV |
Weight: |
4700kg |
| High Light: |
3 wheel electric forklift, four wheel drive forklift |
Yellow 3 Ton Diesel Forklift Warehouse Lift Truck 1070mm Fork Length
counterbalance fork truck Characteristics:
- Integrated central control box the reliability of electric system
- Ergonomical design ensures best operation
- Energy-saving hydraulic system decreases fuel consumption
- High quality hydraulic hoses, no oil leakage
- Wide view mast design improves the productivity and safety
- Diesel forklift truck
| 3T COUNTER BALANCE DIESEL FORKLIFT TRUCK SPECIFICATION |
| Model |
Unit |
CPC30/CPCD30 |
| Power type |
|
Diesel |
| Rated capacity |
kg |
3000 |
| Load center |
mm |
500 |
| Mast Lifting height |
mm |
3000 |
| Free lift height |
mm |
175 |
| Fork size(L*W*T) |
mm |
1070×125×45 |
| Tilting Angles(Front/Rear) |
deg |
6°/12° |
| Front overhang |
mm |
485 |
| Exterior Size |
Length without fork |
mm |
2680 |
| Overall width |
mm |
1225 |
| Mast drop |
mm |
2065 |
| Max.lift |
mm |
4250 |
| Front-wheel Overhead |
mm |
2070 |
| Min Turning Radius |
mm |
2420 |
| Min.intersecting aisle |
mm |
2100 |
| Speeds |
Max Driving speeds |
km/h |
18.5/20 |
| Lifting speeds |
mm/s |
470/520 |
| Lowering speeds |
mm/s |
550/520 |
| Max.grade ability |
% |
20 |
| Total weight |
kg |
4300 |
| Tires |
Front |
|
28*9-15-12PR |
| Rear |
|
6.5-10-10PR |
| Wheelbase |
mm |
1700 |
| Tread |
Front |
mm |
1000 |
| Rear |
mm |
970 |
| Min.ground clearance |
mm |
110 |
| Engine |
Model |
|
490BPG |
| Rated output |
kw/rpm |
37/2650 |
| Rated torque |
N.m/rpm |
148/1800 |
| No.of cylinder |
|
4 |
| Displacement |
L |
2.54 |
| Fuel tank capacity |
L |
52 |
